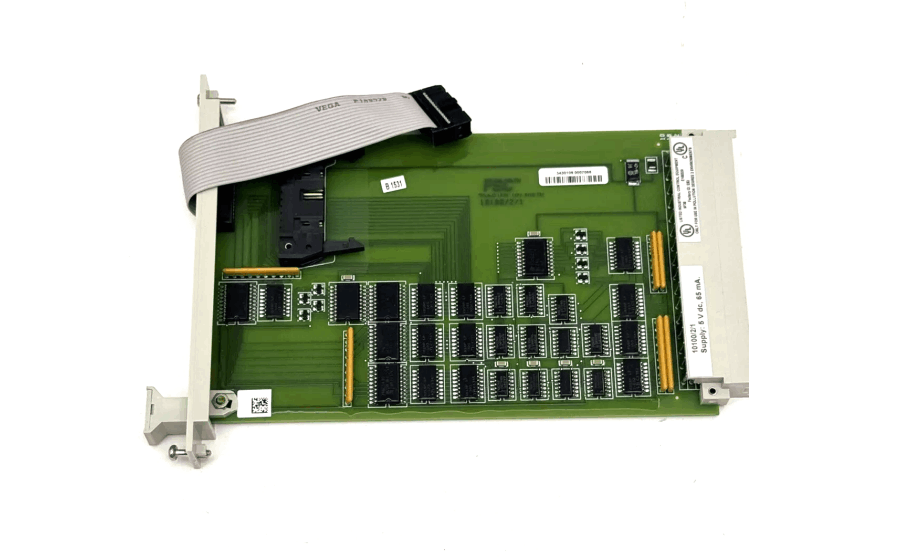

Honeywell 10100/2/1 Horizontal Bus Driver
Item Number: 10100/2/1
Brand:Honeywell
Lead Time: In stock
Description: Horizontal Bus Driver
Payment: T/T
Product Description
Honeywell 10100/2/1 Horizontal Bus Driver (HBD) is a basic module installed in the I/O rack. It consists of two parts: the electronic part (10100/2/1) and the flat cable (A1, A21 or A22).
It is connected to the vertical bus flat cable between the central part and the I/O rack through the back connector CN1. The flat cable extending from the front of the module connects the HBD module to the horizontal bus above the I/O rack. The address selection line of the I/O module is terminated at the back of the horizontal bus through the flat cable on the connector CN3.
Function & Features
- Application configuration: 10100/2/1 can be used with different flat cables according to different I/O configuration requirements. Flat cable A1 is used for non-redundant I/O; flat cable A21 is used for redundant I/O, and each HBD corresponds to one rack
- Replaceable with power: 10100/2/1 modules can be replaced with power on, but if the HBD is safety-related, the central part will be shut down when replaced.
Specifications
|
Category |
Details |
|
General |
Type number: 10100/2/1 Approvals: CE, TÜV, UL Software versions: all Space requirements: 4 TE, 3 HE (= 4 HP, 3U) |
|
Power |
Power requirements: 10100/1/1 + 10100/A/1: 5 Vdc 35 mA 10100/1/1 + 10100/A/21: 5 Vdc 35 mA 10100/1/1 + 10100/A/22: 5 Vdc 65 mA Ripple content: < 50 mV p - p |
|
Key coding |
(see 'Key coding' data sheet) Module code: – hole: A27 – pins: C3, C11, C27 Rack code: – blind stop: C3, C11, C27 – large pin: A27 |
FAQ
Q: What is the brand?
A: Honeywell
Q: What is the type?
A:Horizontal Bus Driver(HBD)
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
