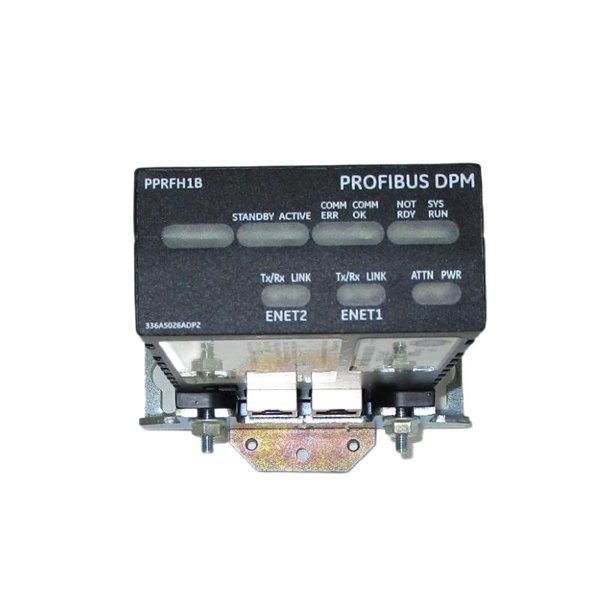

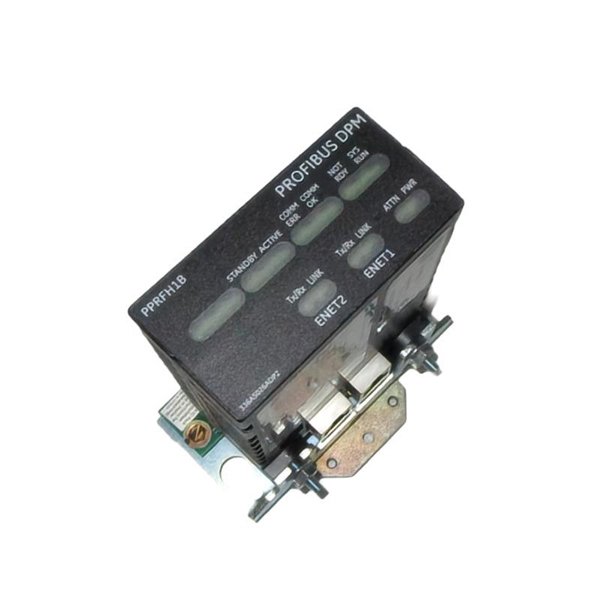

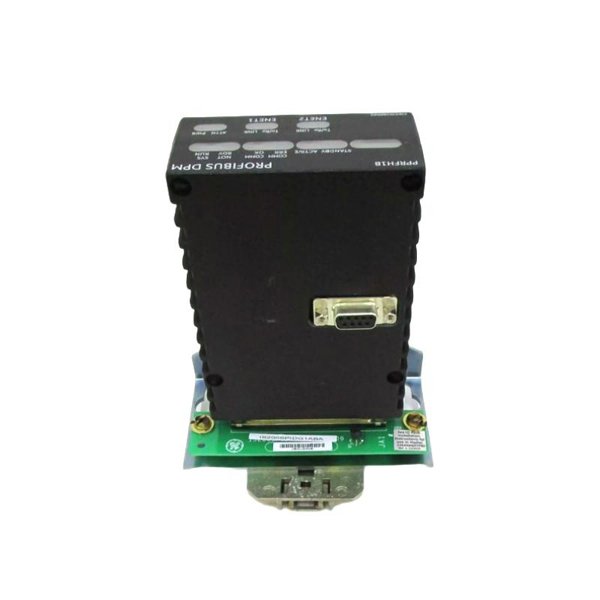

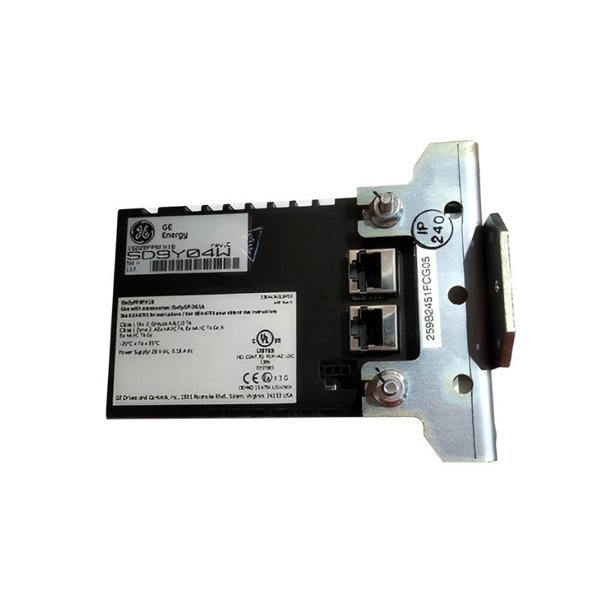

General Electric IS220PPRFH1B Master Gateway I/O Module
Manufacturer:GE
Product Number:IS220PPRFH1B
Product Type:Master Gateway I/O Module
Origin:USA
Dimensions:150 × 230 × 60 mm
Weight:1.5 kg
Views:57
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IS220PPRFH1B Master Gateway I/O Module is a highly reliable communication gateway designed to provide Profibus-DP Master functionality within the GE Mark VIe and Mark VIeS control systems. This module enables seamless and direct communication between the GE control platform and a wide array of Profibus-based field devices, including drives, remote I/O modules, and smart sensors.
With its capability to support a large number of Profibus slave devices and high-speed data exchange, the IS220PPRFH1B ensures that the control system can efficiently manage complex industrial networks while maintaining deterministic, high-integrity control.
The module’s redundant Ethernet communication, built-in diagnostic features, and compliance with international industrial standards make it ideal for deployment in power generation, oil & gas, chemical processing, and other high-demand sectors.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | GE IS220PPRFH1B Master Gateway I/O Module |
| Model Number | IS220PPRFH1B |
| Series | GE Mark VIe / Mark VIeS / IS220 Series |
| Function | Profibus-DP Master Gateway |
| Supported Protocols | Profibus-DP (IEC 61158 / EN 50170) |
| Profibus Transmission Rate | 9.6 kbps to 12 Mbps (auto-sensing) |
| Maximum Connected Devices | Up to 125 Profibus slave devices |
| Communication Interface to Controller | Redundant Ethernet IONet (10/100 Mbps) |
| Profibus Interface | Isolated RS485 compliant with EN 50170 |
| Supported Topologies | Point-to-point, multi-drop (standard Profibus-DP) |
| Diagnostic Features | Network health, error detection, device status monitoring |
| Redundancy Support | Yes (controller and network) |
| External Power Supply | 24 VDC nominal (range 18–32 VDC) |
| Module Power Consumption | ~6 W typical |
| Operating Temperature Range | -30°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Shock / Vibration Compliance | IEC 60068 |
| Mounting Type | Panel or DIN rail mountable |
| Dimensions (H x W x D) | 150 × 230 × 60 mm |
| Weight | 1.5 kg |
| Certifications | CE, UL, CSA, ISO9001, IEC 61158, EN 50170 |
Product Applications
The GE IS220PPRFH1B module is ideally suited for applications where the Mark VIe control platform must integrate with Profibus networks:
-
Gas Turbine Controls
Interfaces with Profibus-connected actuator valves, smart drives, and remote I/O systems in gas turbine applications.
-
Steam Turbine & Generator Plants
Provides Profibus connectivity to field devices in steam turbine-generator control systems.
-
Combined Cycle Power Plants (CCPP)
Ensures seamless communication between steam & gas turbines and Profibus-based balance-of-plant equipment.
-
Integrates with distributed Profibus-DP devices used in refineries, chemical plants, and petrochemical facilities.
-
Industrial Drive Integration
Facilitates connection of Profibus-based VFDs, motor starters, and servo drives to GE Mark VIe control systems.
-
Retrofit & Modernization Projects
Supports seamless migration of older Profibus-based equipment to modern GE Mark VIe or Mark VIeS control systems.
Product Advantages
-
High Device Connectivity
Supports up to 125 Profibus-DP slaves, providing excellent scalability for large systems.
-
Redundant Ethernet
Dual-redundant Ethernet ensures high availability of control and communication.
-
Auto-Detect Profibus Speeds
Automatically configures data rates up to 12 Mbps.
-
Industrial-Rugged Design
Operates reliably in demanding industrial environments with wide temperature and humidity ranges.
-
Integrated Diagnostics
Built-in network and device status diagnostics support rapid troubleshooting and maintenance.
-
Seamless Integration with Mark VIe
Natively supported by Mark VIe, no need for external protocol converters.
-
Compliance with Global Standards
Fully compliant with CE, UL, CSA, IEC 61158, and EN 50170.
-
Compact & Flexible Mounting
Small footprint, easy to integrate into existing control cabinets with panel or DIN mounting options.
Frequently Asked Questions (FAQ)
-
What is the main function of the IS220PPRFH1B?
It serves as a Profibus-DP Master Gateway, allowing Mark VIe controls to communicate with Profibus field devices.
-
How many Profibus slaves can it support?
It can manage communication with up to 125 Profibus slave devices.
-
What is the maximum supported Profibus data rate?
Up to 12 Mbps (auto-sensing).
-
Does the module support redundant Ethernet?
Yes, it offers dual-redundant Ethernet IONet interfaces.
-
What type of Profibus interface is provided?
Isolated RS485 per EN 50170.
-
Is this module compatible with Mark VIeS safety systems?
Yes, it is compatible with both Mark VIe and Mark VIeS platforms.
-
What are the power supply requirements?
External 24 VDC (range 18–32 VDC).
-
Does it provide built-in diagnostics?
Yes, including network health, error reporting, and device status monitoring.
-
What are typical applications for this module?
Power plants, refineries, chemical processing, OEM skid integration, and retrofit projects.
-
How is the module mounted?
It can be mounted on a panel or DIN rail.
