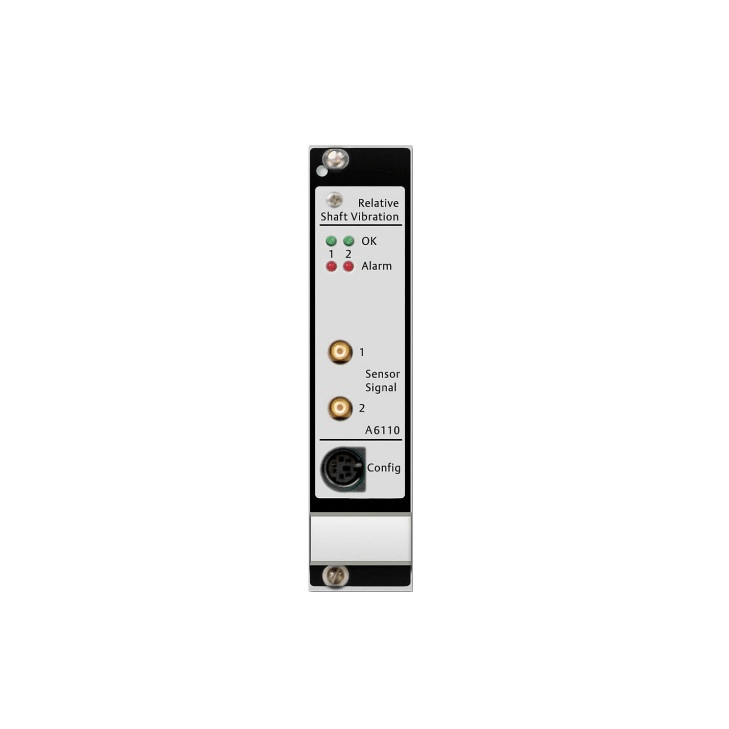

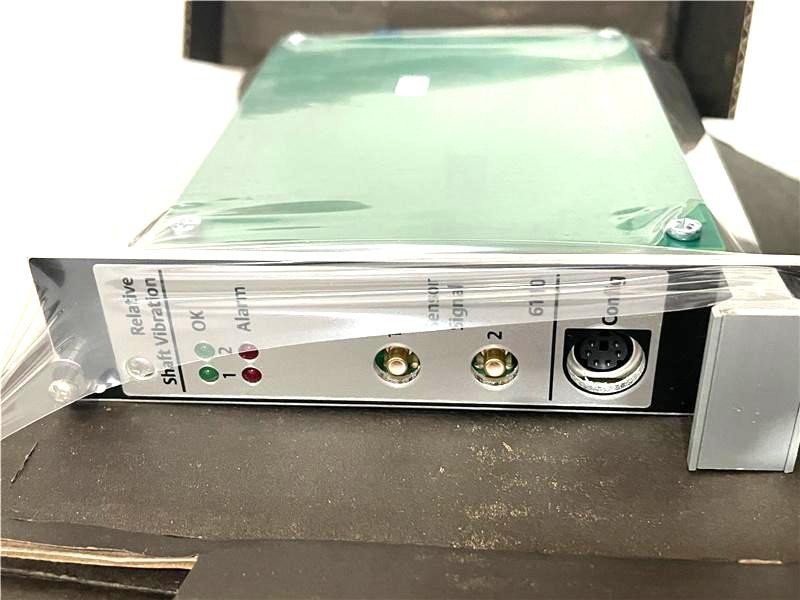

Emerson A6110 Shaft Relative Vibration Monitor
Item Number: A6110
Brand:Emerson
Lead Time: In stock
Description:Shaft Relative Vibration Monitor
Payment: T/T
Product Description
Emerson A6110 Shaft Relative Vibration Monitor is a component of the AMS 6500 Machinery Protection System. This module uses non-contact displacement measurement technology to monitor shaft-bearing housing relative vibration. This monitor is a 1-slot module and can be used in scenarios where the housing mass is much larger than the rotor and the bearing housing vibrates less over the speed range from startup to operation.
Function & Features
Measurement technology:
- Non-contact eddy current sensor: measures the relative displacement between the shaft and the bearing seat (typical range 0-500μm).
- Dual-channel independent monitoring: A6110 supports vibration measurement in X/Y orthogonal directions (two sensors are required).
Protection function:
- Relay hard-wired output: A6110 directly triggers shutdown protection.
- Dynamic compensation algorithm: eliminates sensor nonlinearity error (±1% full-scale accuracy).
Specifications
|
Category |
Parameter |
Details |
| Model | CSI6500 | A6110 |
|
Measurement Range |
Adjustment Method |
Continuously adjustable via configuration software |
|
Smallest Range |
0 - 400 mV |
|
|
Largest Range |
0 - 8000 mV |
|
|
Sensor Power Supply |
Voltage Range |
0 - 8000 mV |
|
Configuration |
Separate buffered sensor supply |
|
|
Galvanically separated from all system and power supply voltages |
||
|
Protection |
Open and short circuit proof |
|
|
Nominal Voltage |
-26.7 VDC |
|
|
Current Capacity |
Nominal: 20 mA Maximum: 35 mA |
A6110 application scenarios:
Sliding bearing equipment with a shell mass much larger than the rotor (shell vibration <25% shaft vibration)
Precision equipment that needs to monitor the axis trajectory (with key phase signal)
FAQ
Q: What is the brand?
A: Emerson
Q: What is the type?
A:Shaft Relative Vibration Monitor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
