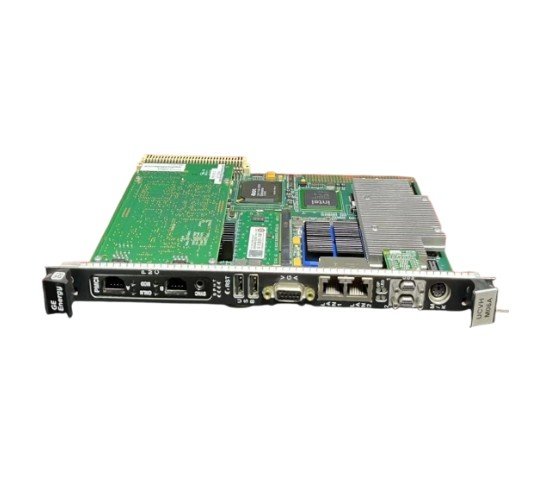

General Electric IS215UCCAM03A Compact PCI Processor Module
Item Number:IS215UCCAM03A
Brand:GE（General Electric）
Lead Time: In stock
Description:Compact PCI Processor Module
Payment: T/T
Product Description
GE IS215UCCAM03A is a single-slot Compact PCI processor board consisting of the IS215UCCAH3 module and the IS200EPMC. This module is the controller's "computing engine," utilizing a 650 MHz Intel Celeron processor to execute control logic, process data, and manage communications.
Function & Features
- Communication Interfaces: The IS215UCCAM03A connects to various components within the system via communication ports such as the Unit Data Highway (UDH) port, the R/S/T IONet Ethernet port, and the debug/configuration port.
- Battery Management: The IS215UCCAM03A module has a CMOS battery jumper. During storage, the jumper is disconnected to conserve battery power. This jumper must be reconnected before installation.
- Slot Requirements: When used as the master controller, the IS215UCCAM03A must be installed in slot 1 (the far left) of the rack.
Specifications
| Parameter | Description |
|---|---|
| Product Model | IS215UCCAM03A |
| Role Positioning | Main Controller/Processor Module (Computing Engine of the Control Rack) |
| Physical Form | Single-slot 6U CompactPCI Board |
| Processor | Intel Celeron |
| L1 Cache | Typically 128 KB |
| Expansion Slots | 2 PCI Mezzanine Card (PMC) Sites |
| Dimension | 241*137.4cm |
| Weight | 0.89kg |
FAQ
Q: What communication interfaces are available on the front?
A:One UDH Ethernet port, three IONet Ethernet ports, and one RS-232C serial port
Q: What is the battery jumper on the IS215UCCAM03A module used for? What precautions should be taken during installation?
A:This jumper controls the battery that powers the CMOS and real-time clock. Before installing the module in the rack, you must confirm and restore this jumper to the connected position. Otherwise, the real-time clock will not function and BIOS settings may not be saved.
Q: What could be causing the IS215UCCAM03A to fail to boot or remain in reset?
A: Possible causes include a power supply issue, a disconnected battery jumper, or a watchdog timeout.
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
