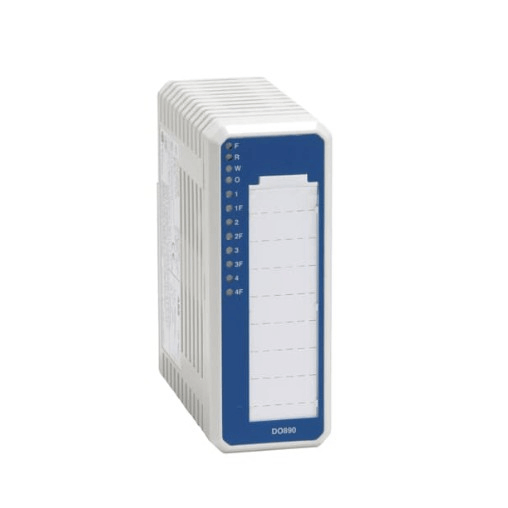

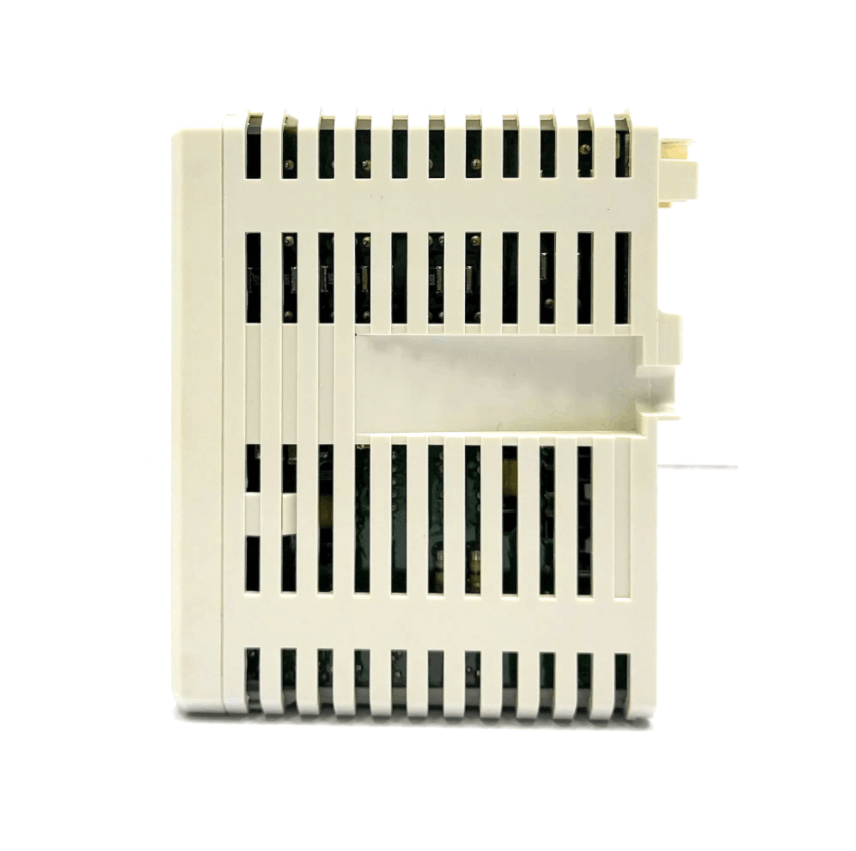

ABB DO890 3BSC690074R1 Digital Output IS 4 Ch
Item Number:DO890 3BSC690074R1
Brand: ABB
Lead Time: In stock
Description:Digital Output IS 4 ch
Payment: T/T
Product Description
ABB DO890 3BSC690074R1 is a Digital Output Module designed for use in industrial automation systems, particularly in hazardous environments.Each channel can drive a nominal current of 40 mA into a 300 ohm field load such as an Ex certified solenoid valve, alarm sounder unit or indicator lamp. Open and short circuit detection can be configured for each channel. It provides Intrinsic Safety (IS) protection, making it suitable for connecting to process equipment in potentially explosive areas without requiring additional external safety devices. Below is a detailed overview of its features, benefits, and technical specifications:
Function & Features
- Intrinsic Safety (IS) Protection: Each of the 4 channels of the ABB DO890 module includes intrinsic safety protection, allowing direct connection to field devices in hazardous areas (e.g. Ex-certified solenoid valves, alarms or indicator lights).
- Digital Outputs: The ABB DO890 provides 4 digital output channels, each capable of driving a nominal current of 40 mA into a 300 ohm field load. Suitable for controlling Ex-certified equipment.
- Open and Short Detection: Each channel of the ABB DO890 module supports configurable open and short detection for troubleshooting.
- Galvanic Isolation: All four channels of the ABB DO890 are fully isolated from each other, the ModuleBus and the power supply, ensuring a quiet environment.
Specifications
|
Parameter |
Specification |
| Part Number | D08903BSC690074R1 |
|
Number of Channels |
4 |
|
Output Type |
Digital Output |
|
Output Voltage |
11 V |
|
Output Current |
40 mA (nominal) |
|
Output Load |
100 - 5000 Ω |
|
Net Depth/Length |
127.5 mm |
|
Net Height |
186 mm |
|
Net Width |
59 mm |
|
Net Weight |
0.7 kg |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A:Digital Output Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
