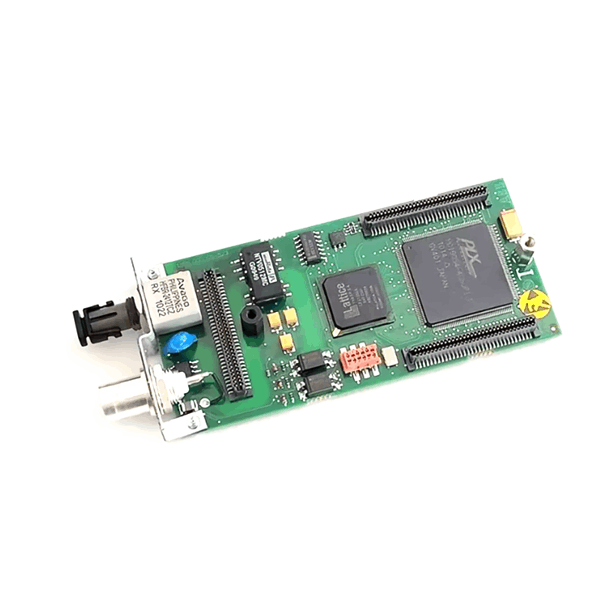

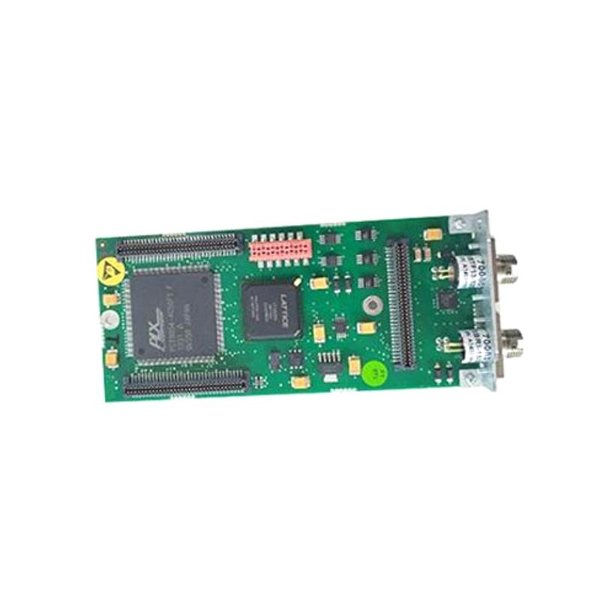

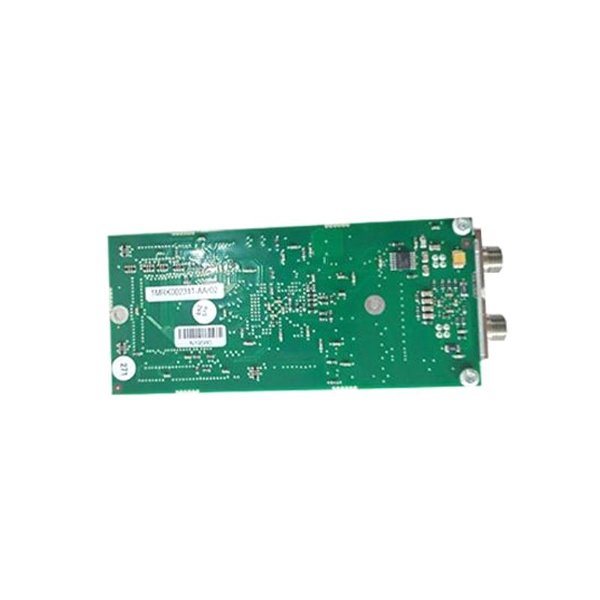

ABB 1MRK002311-AAr02 Binary Input/Output Module

The ABB 1MRK002311-AAr02 Binary Input/Output (I/O) Module is a high-performance industrial automation device designed for real-time data acquisition and control. This module enables seamless interfacing between field devices and automation systems, providing reliable digital input and output capabilities.

Equipped with advanced signal processing, robust electrical protection, and seamless integration features, the 1MRK002311-AAr02 is widely used in power substations, industrial process control, and distributed automation systems. With its compact design and DIN rail mounting capability, it is an essential component for critical applications requiring high-speed and high-accuracy digital signal management.

This model is an upgrade to the previous 1MRK002311-AAr01, offering enhanced connectivity, improved response times, and extended environmental tolerances, ensuring superior performance in demanding industrial environments.

Product Specifications

The technical specifications of the ABB 1MRK002311-AAr02 Binary I/O Module are listed below:

Product Applications

The ABB 1MRK002311-AAr02 Binary I/O Module is suitable for a wide range of industrial and automation applications, including:

• Power Substations: Used for monitoring and controlling circuit breakers, transformers, and relay protection systems.

• Process Automation: Ensures real-time digital signal processing for industrial control systems.

• Renewable Energy Plants: Facilitates remote monitoring and automation of solar farms and wind turbines.

• Industrial Machinery: Interfaces with PLCs and SCADA systems for machine automation and diagnostics.

• Building Automation: Controls lighting, security systems, and HVAC operations efficiently.

• Transportation & Railways: Used in railway signaling and control systems for enhanced safety and coordination.

• Oil & Gas Sector: Enables monitoring and control of pipeline valves, pumps, and emergency shutdown systems.

• Data Centers: Provides reliable digital input monitoring for environmental sensors and security controls.

Product Advantages

• High-Speed Response: Ultra-fast digital signal processing with a response time of less than 2 milliseconds.

• Flexible Input & Output Configurations: Supports both low and high-voltage DC input and output ranges.

• Robust Electrical Isolation: 2500V AC isolation ensures protection against voltage spikes and electrical noise.

• Reliable Communication: Dual Ethernet ports and RS-485 interface provide seamless network connectivity.

• Enhanced Environmental Tolerance: Operates in extreme temperatures from -30°C to 70°C.

• Compact & Easy to Install: Designed for DIN rail mounting, making it easy to integrate into existing systems.

• Energy-Efficient Operation: Consumes less than 5W of power while maintaining high performance.

• Industry Compliance: Certified to IEC 61850, IEEE 1613, and RoHS standards for industrial automation.

FAQ

1. What is the primary function of the ABB 1MRK002311-AAr02?

   • It serves as a digital input/output interface for automation and control systems, processing binary signals.

2. How many input and output channels does it support?

   • It features 16 digital inputs and 8 digital outputs.

3. What voltage range does the input support?

   • The input voltage range is from 24V DC to 220V DC.

4. What is the response time of this module?

   • It has a response time of less than 2 milliseconds, ensuring real-time signal processing.

5. Can it be used in extreme temperatures?

   • Yes, it operates within a temperature range of -30°C to 70°C.

6. How is it mounted in an industrial setup?

   • It is designed for DIN rail mounting, making installation easy and secure.

7. What communication interfaces are available?

   • The module features dual Ethernet ports (RJ-45, 10/100 Mbps) and an RS-485 serial interface.

8. Does it provide electrical isolation?

   • Yes, it features 2500V AC isolation to protect against electrical surges.

9. Is it compliant with industrial standards?

   • Yes, it meets IEC 61850, IEEE 1613, CE, and RoHS compliance requirements.

10. What is the power consumption of this module?

• It operates with a power consumption of less than 5W.
