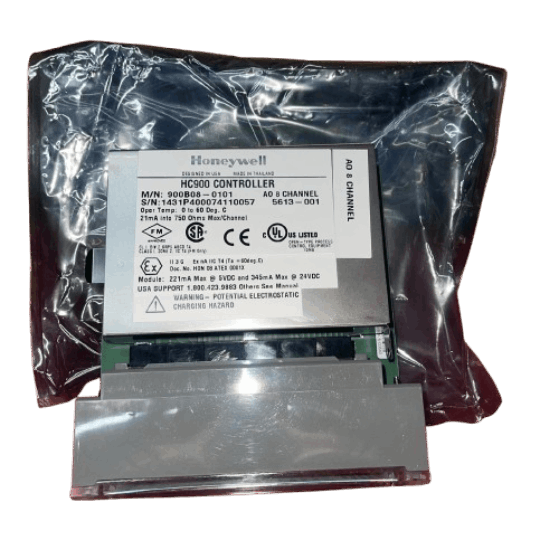

Honeywell 900B08-0101 Analog Output Module
Item Number: 900B08-0101
Brand:Honeywell
Lead Time: In stock
Description:Analog Input Module
Payment: T/T
Product Description
Honeywell 900B08-0101 is an 8-channel analog output module that provides 0~21.0mA adjustable current output, and each output can be scaled individually within this range. The outputs are isolated in groups of 4 (there is no isolation between outputs in the group, and all output points are isolated from the controller logic). It supports custom ranges for each channel and is suitable for application scenarios that require precise control of actuators (such as valves and inverters).
Function & Features
- Output Configuration
The 900B08-0101 provides 8 0-21.0 mA outputs, each scalable within the range.
Outputs are isolated in groups of 4, with no isolation within the group, but all output points are logically isolated from the controller.
- Output Update and Control
Outputs and control execution are updated synchronously and respond to control instructions in coordination.
The 900B08-0101 can set a rate of change limit for each output as needed to prevent sudden changes in the output signal from affecting the controlled process.
Specifications
|
Parameter |
Specification |
|
Model |
900B08-0101 |
|
Outputs per module |
8, isolated in 2 groups of 4 outputs (1-4, 5-8) |
|
Current |
0 to 21.0 mA, range selectable |
|
Load resistance |
750 ohms max |
|
Galvanic Isolation (group to group) |
500VDC group to group. Groups 1-4, 5-8 |
|
Galvanic Isolation from logic |
500 VDC |
|
Accuracy |
0.1% full scale at reference conditions |
|
Voltage (Vin) |
18 to 36 Vdc |
|
Current (per module) |
350 mA per module |
FAQ
Q: What is the brand?
A: Honeywell
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
