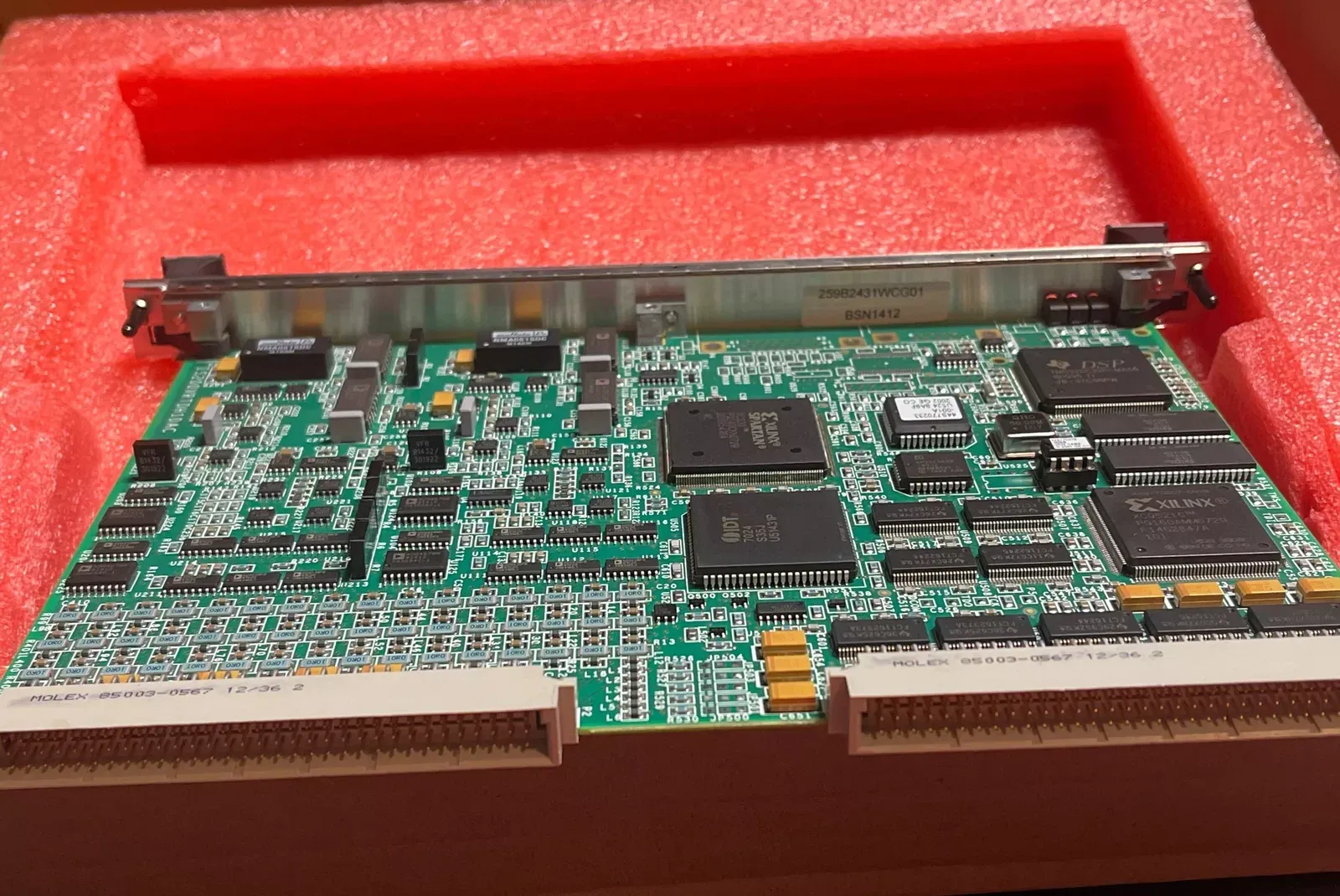

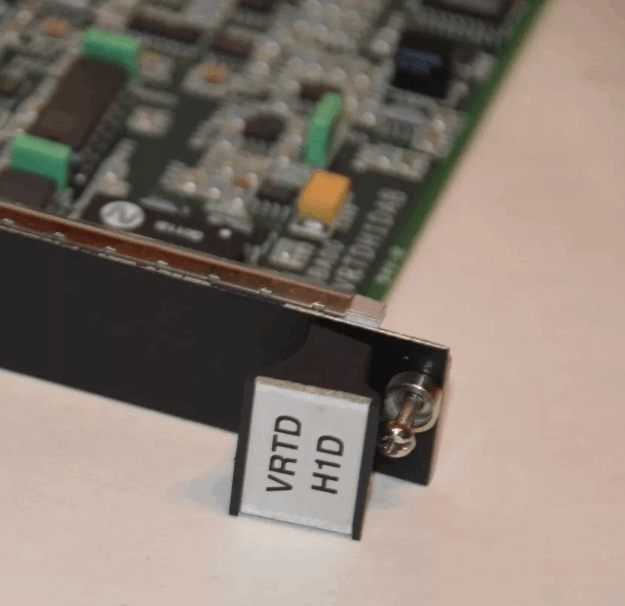

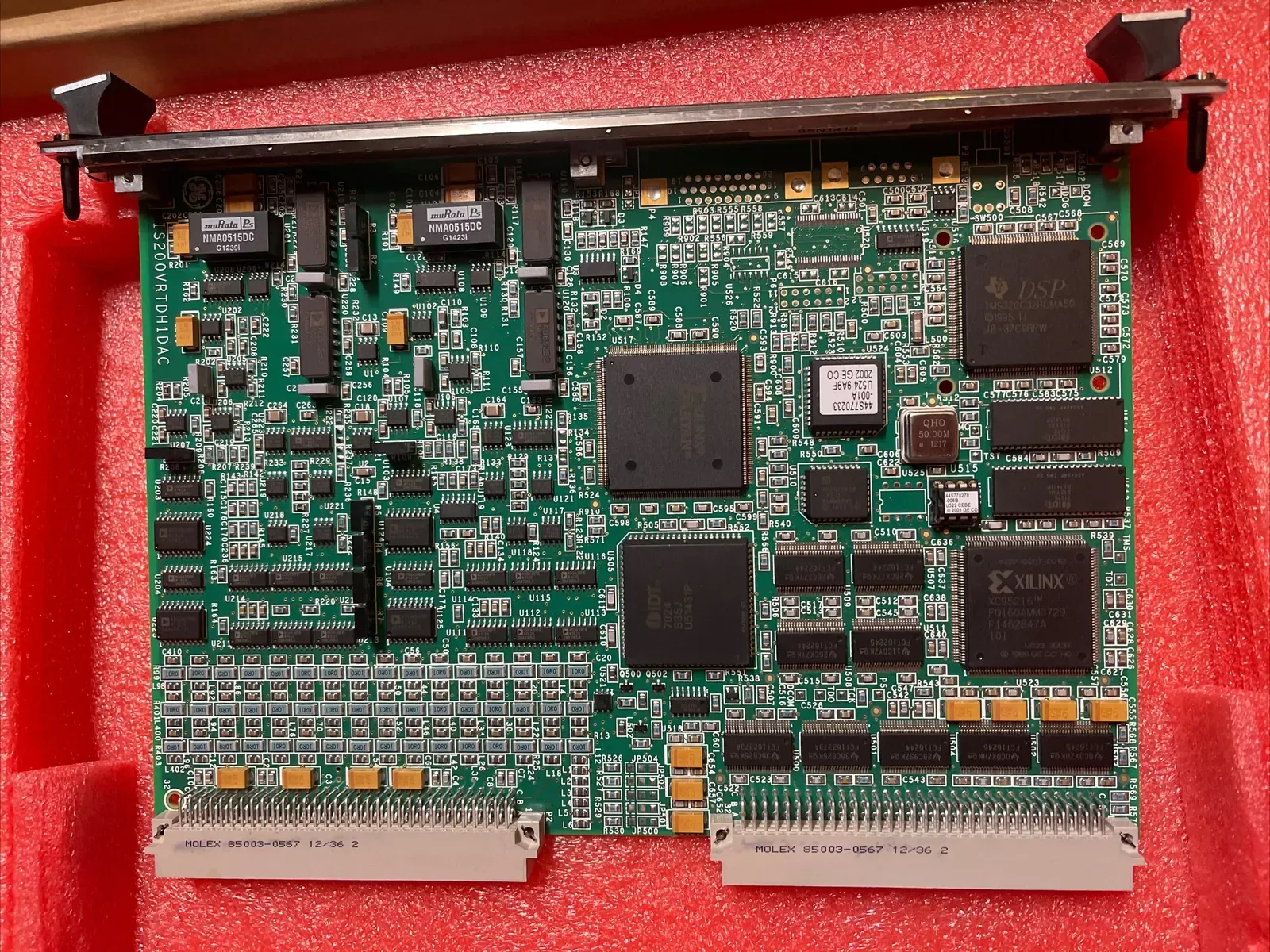

General Electric IS200VRTDH1D IS200VRTDH1DAB Resistance Temperature Device Input Board
Item Number:IS200VRTDH1D IS200VRTDH1DAB
Brand:GE
Lead Time: In stock
Description:Resistance Temperature Device Input Board
Payment: T/T
Product Description
GE IS200VRTDH1D IS200VRTDH1DAB is a circuit board launched by GE for processing resistance temperature device (RTD) input signals. This circuit board is an important part of GE's related industrial control systems and is mainly used to measure and collect temperature data. In a triple-mode redundant configuration, the TRTDH1B can achieve redundant RTD inputs by distributing the inputs to three VRTD boards in the R, S, and T racks.
Fuctions & Features
- Excitation Current Supply: The GE IS200VRTDH1D provides a 10 mA DC multiplexed (not continuously supplied) excitation current to each RTD through the termination board.
- Fault Detection and Handling: The GE IS200VRTDH1D identifies short and open circuit conditions of the RTD using out-of-range values.
- Redundant Configuration: In a triple-mode redundant (TMR) configuration, the TRTDH1B provides redundant RTD inputs by spreading the inputs across three VRTD boards in the R, S, and T racks.
Specification
|
Item |
Details |
|
Series |
Mark VI |
|
Product Type |
Input Board |
|
Function |
Converts the inputs into digital temperature values |
|
Number of Channels |
16 channels per VRTD board |
|
Resolution of A/D Converter |
14-bit resolution |
|
Power Consumption |
Less than 12 W |
