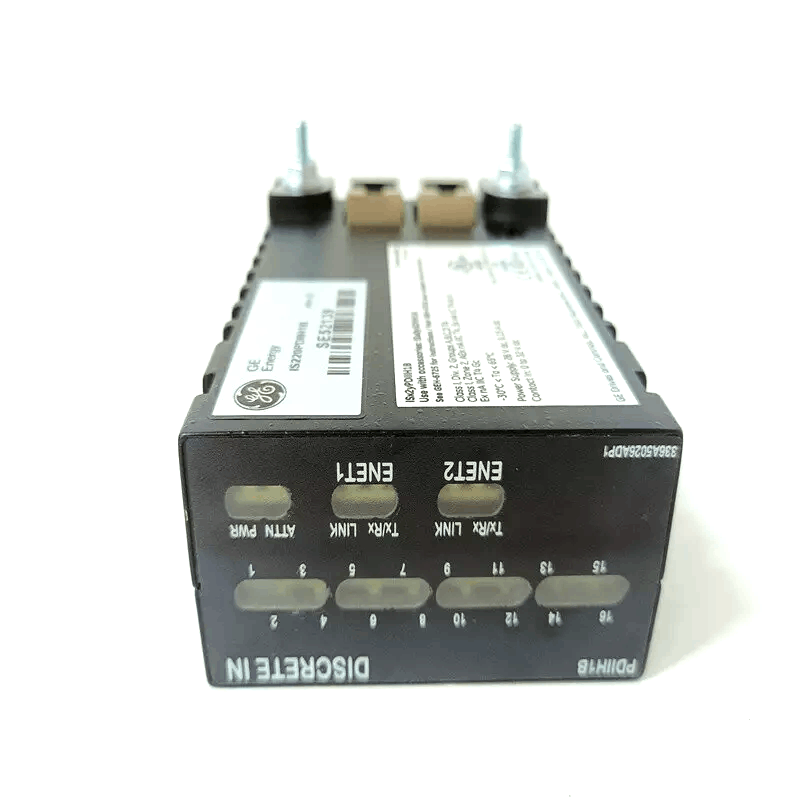

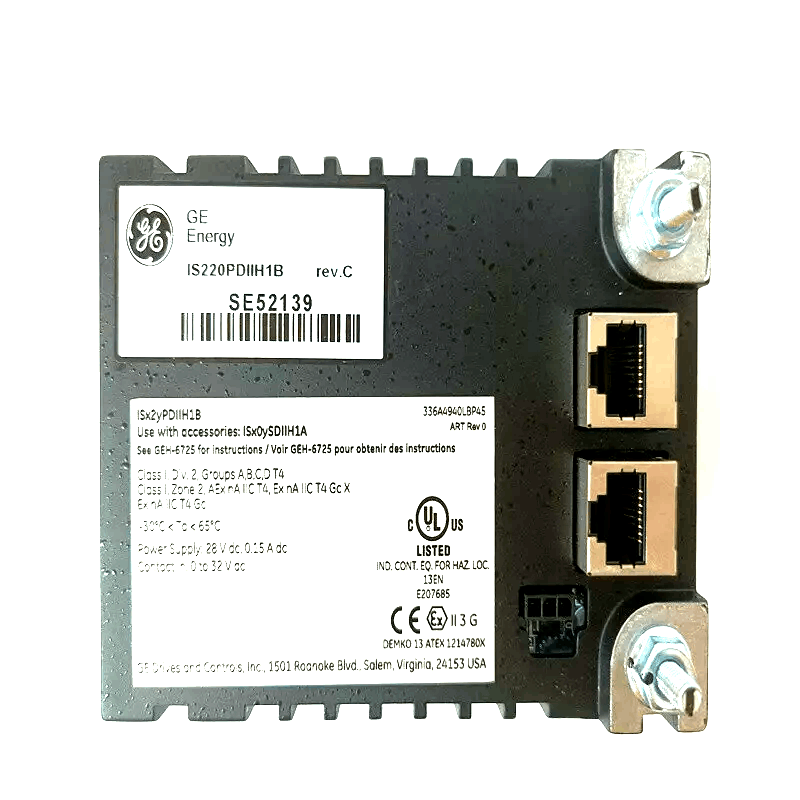

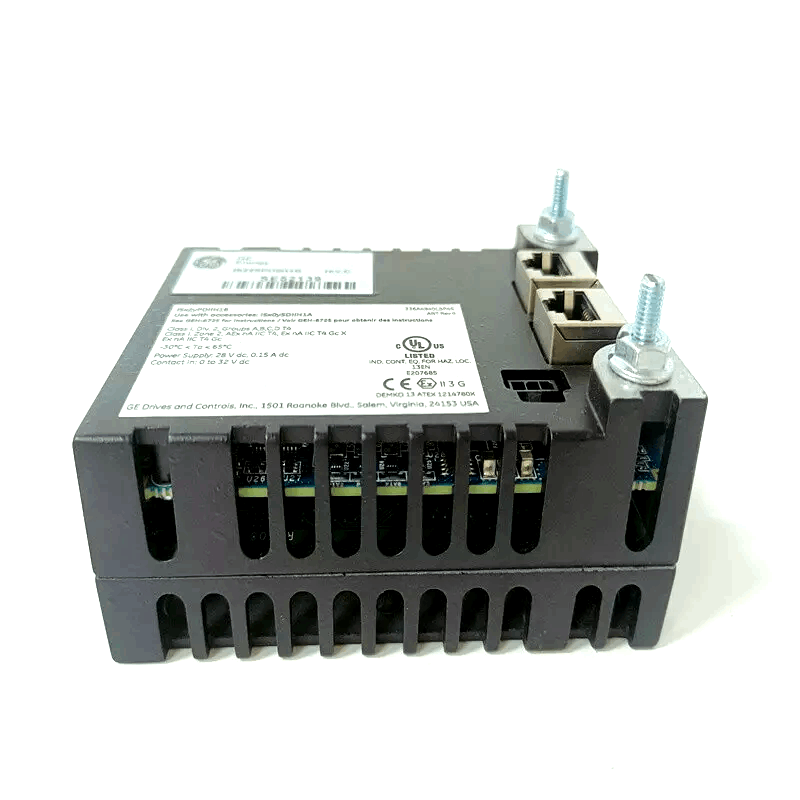

General Electric IS220PDIIH1B I/O Pack, Discrete In, Isolated
Item Number:IS220PDIIH1B
Brand:GE
Lead Time: In stock
Description:I/O Pack, Discrete In, Isolated
Payment: T/T
Product Description
IS220PDIIH1B is an I/O module in the General Electric (GE) Speedtronic Mark VIe series, designed for receiving isolated contact input signals. The module supports up to 16 isolated input channels and can be configured as point isolation, group isolation or mixed isolation mode as needed. Each channel is capable of receiving signals at different voltage levels, suitable for complex industrial control environments. The module is connected to the discrete input terminal board via I/O Ethernet to ensure efficient signal transmission. It contains a processor board and an acquisition board dedicated to discrete input functions, supporting 24 V DC, 115 V AC RMS or 230 V AC RMS power supply configurations to meet a variety of power supply requirements.
Features
- Input configuration: The module can receive up to 16 isolated contact inputs, supporting point isolation, group isolation or mixed configurations. Each channel can receive signals of different voltages.
- Electrical connection: IS220PDIIH1B is electrically connected to the discrete input terminal board of point isolation or group isolation through the I/O Ethernet network to ensure signal transmission.
- Processing signal: The module contains a processor board (shared with all Mark VIe distributed I/O packages) and an acquisition board dedicated to discrete input functions.
- Power supply configuration: The module supports 24 V DC, 115 V AC RMS or 230 V AC RMS power supply to meet different power supply requirements. When used with the SDII Termination Board and the optional WDIIH1 board.
- Channel Isolation: When using the WDIIH1, each channel can be set up as point isolation and accept different voltage levels as required, this configuration supports a mix of point isolation and group isolation.
Specification
|
Specification |
Details |
|
Number of Input Channels |
Up to 16 isolated input channels |
|
Isolation Modes |
Configurable as point isolation, group isolation, or mixed isolation modes |
|
Voltage Reception Ability |
Each channel can receive different voltage levels |
|
Electrical Connection Method |
Connected to the discrete input terminal board of point isolation or group isolation via I/O Ethernet network to ensure signal transmission |
|
Internal Components |
Comprises a processor board (shared with all Mark VIe distributed I/O packages) and an acquisition board dedicated to discrete input functions |
|
Power Supply Configuration |
Supports 24 V DC, 115 V AC RMS, or 230 V AC RMS power supply |
FAQs
Q: What is the brand?
A: GE
Q: What is the type?
A:I/O Pack, Discrete In, Isolated
Q: What is the warranty period?
A: 1 year.
Q: What is the product condition?
A: New.
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
