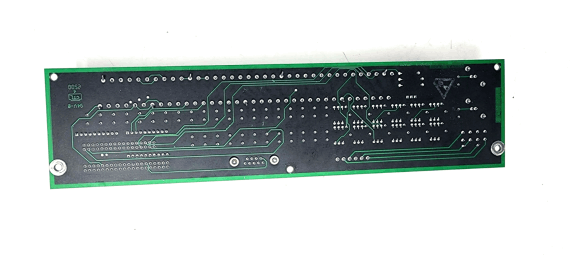

General Electric DS200PTBAG1AEC Protective Core Terminal Board
Item Number:DS200PTBAG1AEC
Brand:GE
Lead Time: In stock
Description:Protective Core Terminal Board
Payment: T/T
Product Description
GE DS200PTBAG1AEC is a protection core terminal board designed for GE's Mark V series control systems, commonly used in power generation and industrial automation applications. It acts as an interface between the control system and field wiring, allowing the system to connect to a variety of protection devices, such as relays and sensors.
The board plays a key role in ensuring that protection signals, such as those associated with system faults or alarms, are properly processed and transmitted to the control system. Equipped with I/O terminals for wiring connections, this terminal board protects the control system from electrical noise or surges.
Fuctions & Features
- Signal Terminals: The PTBA terminal block connects to the TCEB board and receives input signals for key parameters such as high and low pressure shaft speeds, flame detection, and generator related signals such as voltage and current.
- Turbine Trip Processing: It communicates with the TCTG board to process trip signals, including external trips, generator breaker closures, and emergency shutdown signals.
- Audio Alarms: The PTBA board powers the turbine's audio alarm (horn) through a hardware jumper on the board, providing an audible alarm for system anomalies.
- Overspeed Protection:The Mark V LM control system uses the PTBA terminal block to provide primary and emergency overspeed protection by monitoring the turbine shaft speed. When the shaft speed exceeds a set threshold, the system triggers a turbine trip to prevent damage.
FAQs
Q: What is the brand?
A: GE
Q: What is the type?
A: Protective Core Terminal Board
Q: What is the warranty period?
A: 1 year.
Q: What is the product condition?
A: New.
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
