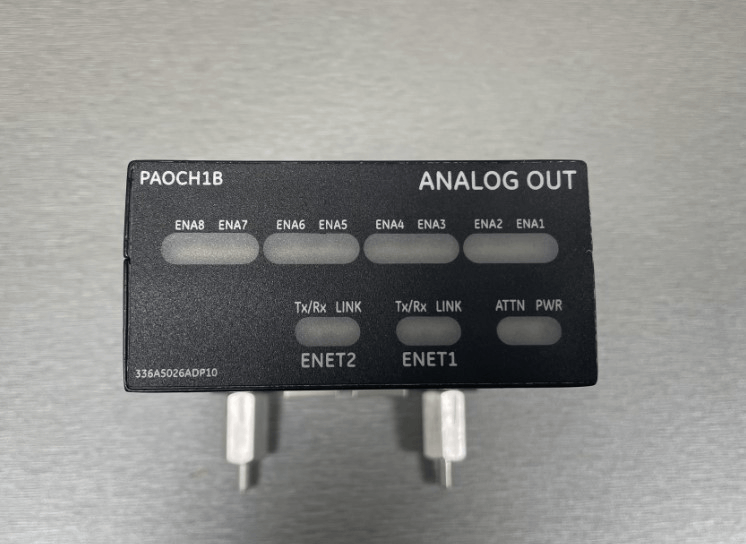

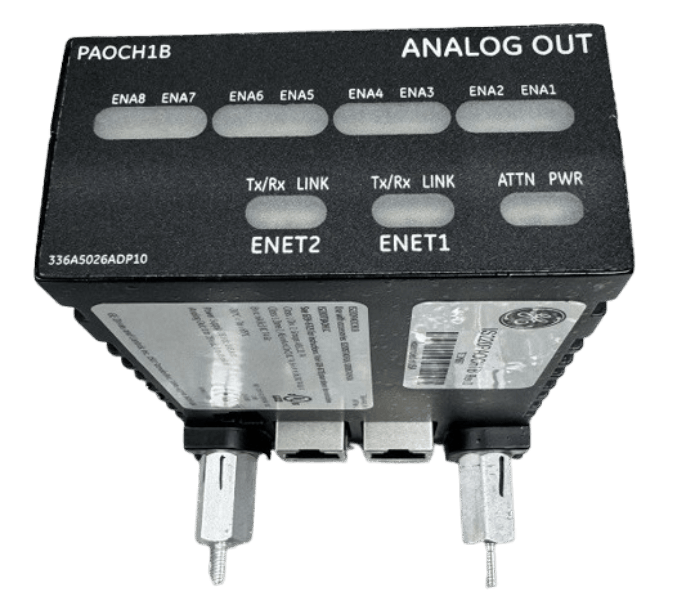

General Electric IS220PAOCH1B Analog Output Module
Item Number: IS220PAOCH1B
Brand: GE
Lead Time: In stock
Description: Analog Output Module
Payment: T/T
Product Description
IS220PAOCH1B is an analog output module for GE Mark VIe control systems. As an analog output interface between Ethernet and the terminal board in industrial control systems, IS220PAOCH1B supports 8-way current output, mechanical relay + temperature monitoring dual protection, and can be networked with Mark VIe R/S controllers. ToolboxST software is required for complete configuration.
Function & Features
- Analog output: IS220PAOCH1B provides 8 independent 0-20 mA high-precision current outputs, supports 18V drive capability, and each uses a 16-bit DAC (digital-to-analog converter) to make the signal reach ±0.003% full scale (FSR).
- Mechanical relay isolation: IS220PAOCH1B is equipped with a normally open (NO) relay for each output, which can forcibly cut off the load circuit.
- Soft start design: IS220PAOCH1B suppresses the impact current when the power is turned on and supports live plugging and unplugging.
Specifications
|
Parameter |
Specification |
|
Model Number |
IS220PAOCH1B |
|
Series |
Mark VIe |
|
Input Channels |
24 group-isolated contact inputs |
|
Wetting Voltage Support |
24/48/125V DC (external supply) |
|
Input Voltage Ranges |
16-32V DC / 32-64V DC / 100-145V DC |
|
Current Limitation |
• 2.5mA (Channels 1-21) • 10mA (Channels 22-24) • 0.5A max for 24V DC (PTC resettable fuse) |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
