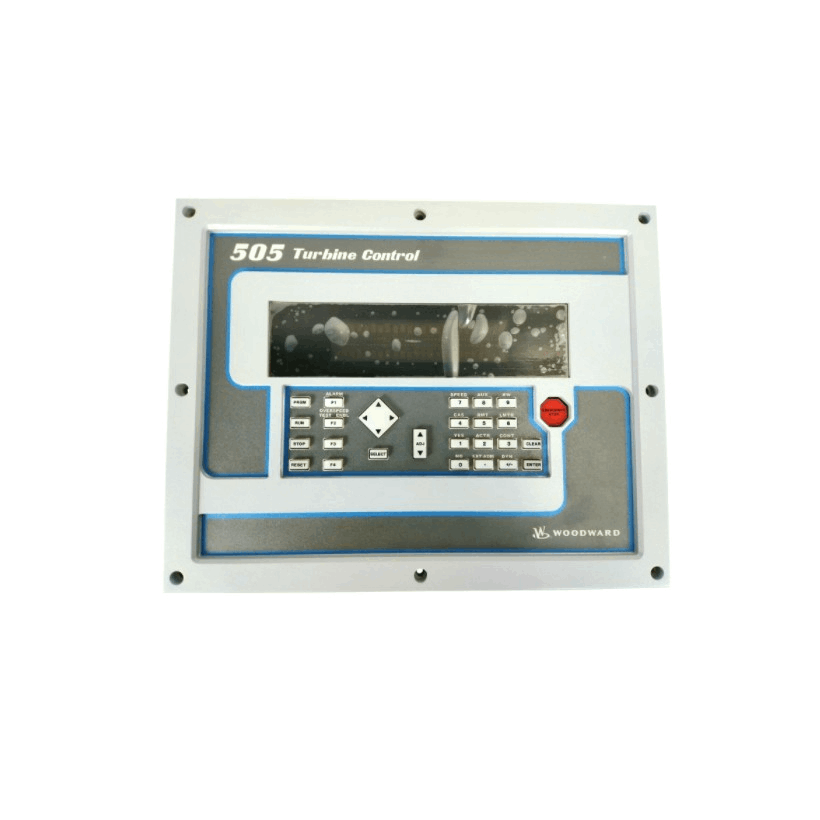

Woodward 9907-163 Digital Governor For Steam Turbines
Item Number: 9907-163
Brand:Woodward
Lead Time: In stock
Description: Digital Governor For Steam Turbines
Payment: T/T
Product Description
Woodward 9907-163 is a 505 microprocessor-based steam turbine digital governor designed to control single-actuator or dual-actuator (split-range) steam turbines. It integrates field-configurable steam turbine controls and an operator control panel (OCP) in a single unit. It supports single-actuator or dual-actuator (split-range) steam turbines.
Note: Extraction steam turbines require the 505E version.
Function & Features
- Control Mode: The 9907-163 can control one primary parameter at a time and simultaneously limit another. Controllable/limited parameters include, but are not limited to, speed/load, inlet steam pressure or flow, and exhaust (backpressure) pressure or flow.
- Integrated Operator Control Panel: The front of the 9907-163 features a complete operator control panel with a two-line display (24 characters per line) and 30 keys.
- First-Out Trip Indication: The 9907-163 records the first of up to five trip input signals.
- Critical Speed Avoidance: The 9907-163 can be configured for two critical speed zones and automatically accelerates to avoid them.
Specifications
|
Category |
Details |
|
Model |
9907-163 |
|
Speed Sensor Inputs |
-Quantity: 2 -Type: Configurable via jumpers, compatible with reluctance sensors or proximity probes |
|
-Quantity: 6 (programmable) |
|
|
Contact (Switch) Inputs |
-Total: 16 -Dedicated Inputs (4): Shutdown, Reset, Raise Speed, Lower Speed |
|
Front Panel Function Keys |
-F1: Dedicated to Alarm -F2: Dedicated to Overspeed -F3/F4: Configurable for enabling/disabling various control functions |
|
Actuator Outputs |
-Quantity: 2 |
|
Weight |
-4.5kg |
|
Dimensions |
-481.24mm x 315mm x 225.64mm |
FAQ
Q: What is the brand?
A: Woodward
Q: What is the type?
A:Digital Governor For Steam Turbines
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
