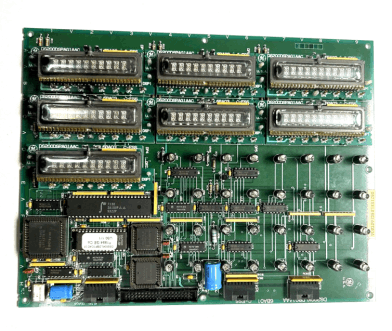

General Electric DS215KLDBG1AZZ03A (DS200KLDBG1ABC+DS200DSPAG1AAC) Display Board

GE DS215KLDBG1AZZ03A (DS200KLDBG1ABC+DS200DSPAG1AAC) is a Key/LED/Display Board developed by GE for the GE excitation system EX2000 series. As an important part of the series, it mainly acts as an LCD display board, realizing the interaction between users and the system through a graphic LCD display and a keyboard with LED indicators, making it convenient for users to adjust and browse the relevant settings of the excitation system.

Fuctions & Features

• 24 Input Channels: The GE DS215KLDBG1AZZ03A (DS200KLDBG1ABC+DS200DSPAG1AAC) Display Board has up to 24 input channels, which can connect to multiple external devices or signals and receive information and commands from different sources within the system.

• 12 Relay Channels: The 12 relay channels give the GE DS215KLDBG1AZZ03A (DS200KLDBG1ABC+DS200DSPAG1AAC) Display Board powerful control capabilities. It can flexibly control external devices based on the received input signals, or activate specific functions within the system to achieve regulation of the entire system.

• High Voltage Handling Capability: The GE DS215KLDBG1AZZ03A (DS200KLDBG1ABC+DS200DSPAG1AAC) Display Board trip solenoid is rated at 125 V dc, making it well suited to handle the high voltage requirements of trip-related functions within the system.

• Pre-drilled Design: The GE DS215KLDBG1AZZ03A (DS200KLDBG1ABC+DS200DSPAG1AAC) Display Board is rectangular in shape with pre-drilled holes in each corner and in the middle of each side. These holes are strategically placed to allow screws to securely fasten it to the unit or enclosure

Specification
