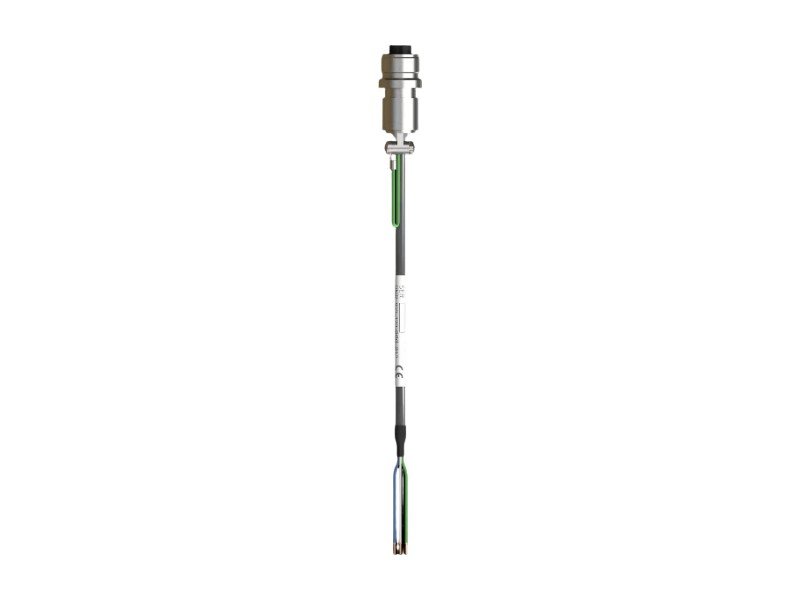

Meggitt ED120 923-120-000-113 Cable Assembly
Item Number:ED120 923-120-000-113
Brand:Meggitt
Lead Time: In stock
Description:Cable Assembly
Payment: T/T
Product Description
The ED120 923-120-000-113 cable assembly is designed for use with the CV213 speed sensor. This cable assembly provides a signal transmission channel for the self-generated CV213 sensor, transmitting the weak voltage signal generated by the sensor to subsequent monitoring electronics (such as a PLC, vibration monitor, etc.).
Note: Two cable models with polytetrafluoroethylene (PTFE) insulation are available.
Function & Features
- Specialized component: The ED120 923-120-000-113 cable assembly is a designated accessory for the CV213 velocity measurement system. It fully matches the CV213 in terms of physical interface and electrical specifications.
- The ED120 offers two cable options, both with PTFE (polytetrafluoroethylene) insulation: K220 cable (3.9 mm outer diameter) and K225 cable (3.2 mm outer diameter). Both are resistant to oils, solvents, and most chemicals.
- Sensor: The ED120 923-120-000-113 uses a standard threaded connector that connects to the CV213 sensor, preventing loosening in vibrating environments. It is MIL-C-5015 type.
Specifications
| Category | Details |
|---|---|
| Model Number | ED120 923-120-000-113 |
| Type | Cable Assembly |
| Measurement system | CV213 velocity |
| Sensor | CV213 |
| Operating temperature range |
-85 to 399 °F -65 to 204 °C |
| Length |
-From 19.7 in (in steps of 19.7 in) -From 500 mm (in steps of 500 mm) |
| Protection | Optional flexible stainless steel hose |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
