General Electric IC697CHS750 Standard Rack
Item Number:IC697CHS750
Brand: GE
Lead Time: In stock
Description: Standard Rack
Payment: T/T
Product Description

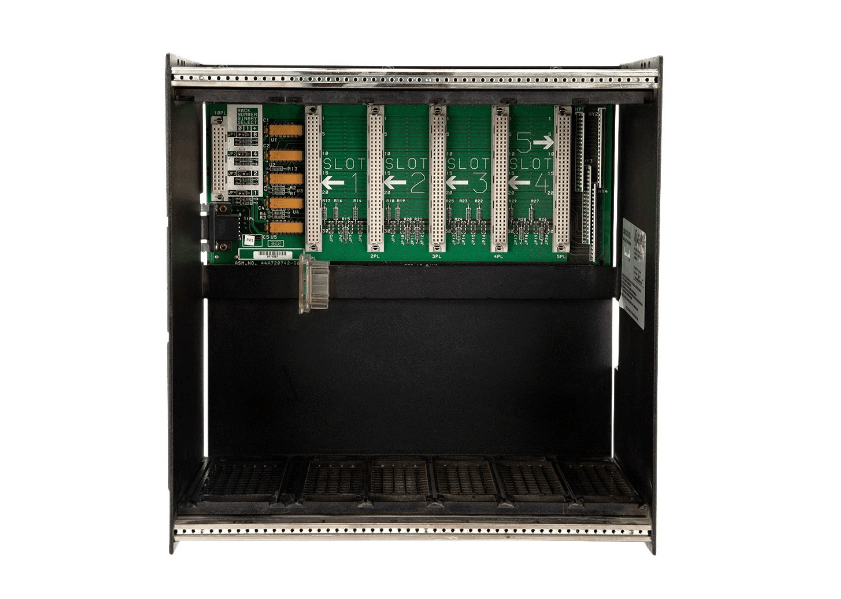

GE IC697CHS750 is a 5-slot standard rack, which is the hardware carrier of IC697 programmable controller system. The rack supports rear installation and can be installed in an electrical cabinet with a depth of 254mm (10 inches) without additional fan cooling. As a rear-mounted rack, this rack can complement the front-mounted rack of the same series.
Function & Features
- The IC697CHS750 provides one power supply slot (left front, 2.4 inches wide) and five additional module slots (each 1.6 inches wide), with a total slot count that fits the hardware layout of a five-slot system.
- The IC697CHS750 supports interconnection with another rack via a power extension cable kit (IC697CBL700) to share a single power supply.
- The IC697CHS750 has slot sensing, which allows rack-mounted I/O modules designed for IC697 PLCs to automatically address modules without jumpers or DIP switches.
Specifications
|
Specification |
Details |
|
Model |
IC697CHS750 |
|
Number of Slots |
5 , plus power supply slot |
|
Current Required from I/O Bus |
0.5 amps |
|
Five Slot Rack Dimensions |
Height: 11.15" (283mm); Width: 12.6" (320mm); Depth: 7.5" (190mm) All modules for the IC697 I/O system extend 1.7" (43mm) beyond the front of the rack. |
|
VME Support |
System designed to support the VME standard C.1 |
Loading comments...
General Electric IC697CHS750 Standard Rack
Item Number:IC697CHS750
Brand: GE
Lead Time: In stock
Description: Standard Rack
Payment: T/T
Product Description
GE IC697CHS750 is a 5-slot standard rack, which is the hardware carrier of IC697 programmable controller system. The rack supports rear installation and can be installed in an electrical cabinet with a depth of 254mm (10 inches) without additional fan cooling. As a rear-mounted rack, this rack can complement the front-mounted rack of the same series.
Function & Features
- The IC697CHS750 provides one power supply slot (left front, 2.4 inches wide) and five additional module slots (each 1.6 inches wide), with a total slot count that fits the hardware layout of a five-slot system.
- The IC697CHS750 supports interconnection with another rack via a power extension cable kit (IC697CBL700) to share a single power supply.
- The IC697CHS750 has slot sensing, which allows rack-mounted I/O modules designed for IC697 PLCs to automatically address modules without jumpers or DIP switches.
Specifications
|
Specification |
Details |
|
Model |
IC697CHS750 |
|
Number of Slots |
5 , plus power supply slot |
|
Current Required from I/O Bus |
0.5 amps |
|
Five Slot Rack Dimensions |
Height: 11.15" (283mm); Width: 12.6" (320mm); Depth: 7.5" (190mm) All modules for the IC697 I/O system extend 1.7" (43mm) beyond the front of the rack. |
|
VME Support |
System designed to support the VME standard C.1 |
