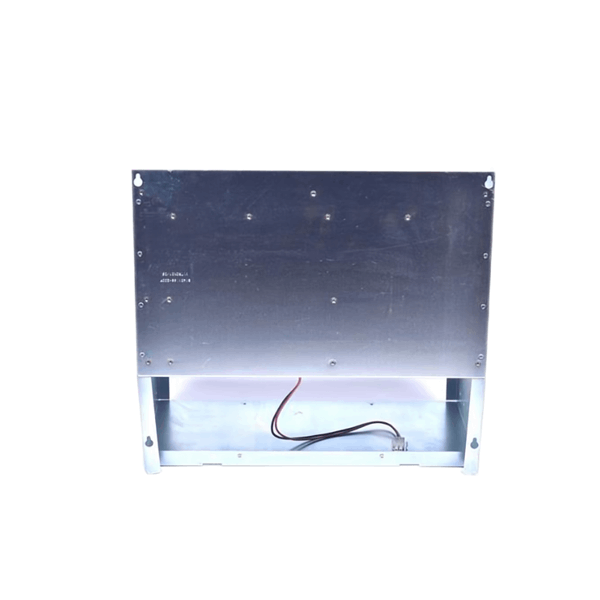

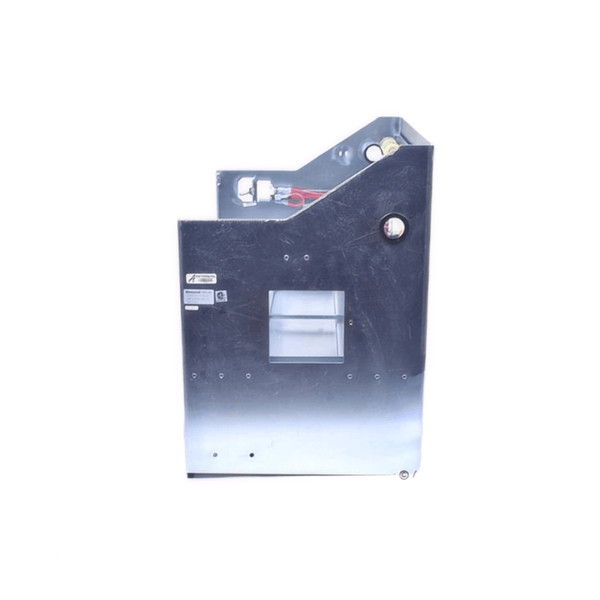

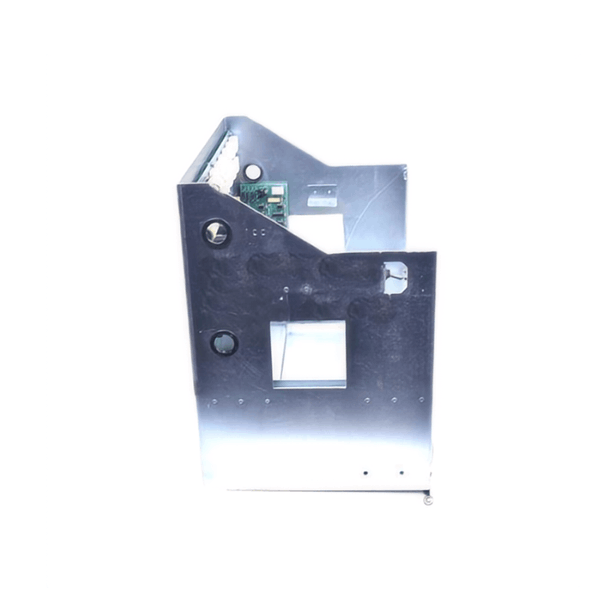

Honeywell MC-PSRX04 51404170-175 Power System Cage

This power cage is typically deployed in mission-critical environments such as oil & gas, chemical plants, power generation, and large-scale manufacturing facilities. With robust construction and seamless integration capabilities, the MC-PSRX04 facilitates high system availability, optimized system uptime, and safe field operation.

Product Specifications

Product Applications

The MC-PSRX04 51404170-175 is primarily used in distributed control system (DCS) environments where stable and uninterrupted power delivery is essential. Its applications include:

• Process Control Systems (DCS) – for continuous and batch process industries.

• Oil & Gas Automation – offshore platforms, refineries, and gas processing units.

• Power Generation Facilities – turbine and substation control systems.

• Chemical Manufacturing – supporting safety instrumented systems and production control.

• Pharmaceutical Plants – high-integrity production lines and cleanroom environments.

• Pulp and Paper – paper machine and batch digester power systems.

Product Advantages

• Modular Design: Supports up to four hot-swappable power supplies for redundancy or load sharing.

• High Availability: Ensures uninterrupted system operation by facilitating redundant power architecture.

• Robust Build: Durable aluminum enclosure resists vibration, heat, and electromagnetic interference.

• Compact Footprint: Efficiently designed for limited cabinet space while allowing easy cable routing.

• Certified Quality: Compliance with industry safety and performance standards ensures safe installation in industrial environments.

• Scalable Architecture: Enables future system expansion without the need for cage replacement.

• Low Maintenance: Passive cooling with minimal wear components reduces operational overhead.

FAQ

1. What is the primary function of the MC-PSRX04 power cage?

   It holds and organizes up to four power modules, providing redundant power delivery to Honeywell control systems.

2. Can the power modules be hot-swapped during operation?

   Yes, the MC-PSRX04 supports hot-swappable installation and removal of compatible power modules.

3. Is this cage compatible with older Honeywell systems?

   It is mainly designed for the Experion PKS system but may be backward-compatible with other Honeywell process systems if specified.

4. What power modules are typically used with this unit?

   Common compatible modules include Honeywell MC-PSIM04 and MC-PSIM02 units.

5. Does it support both 24V and 48V modules?

   It depends on the power module installed, but the cage itself can accommodate both types if the PSU supports them.

6. Is external cooling or fan installation required?

   No. The MC-PSRX04 is passively cooled and optimized for airflow in industrial enclosures.

7. What protection features does the unit offer?

   It includes overvoltage and thermal protection through compatible power supplies.

8. Can it be mounted on a DIN rail?

   Yes, it supports DIN rail mounting in addition to standard rack installation.

9. What certifications does the unit have?

   It is CE marked, RoHS compliant, and UL/cUL listed for industrial applications.

10. Where is this product manufactured?

    Honeywell manufactures these units in certified industrial electronics facilities in North America and Europe.
