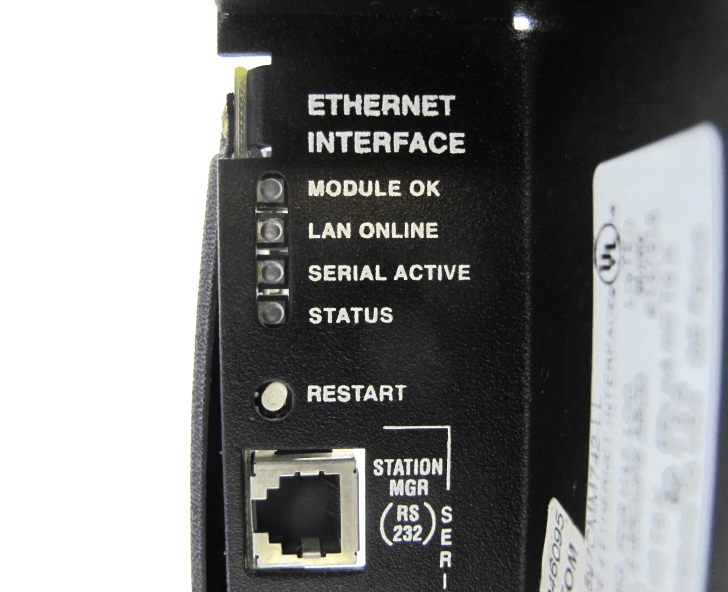

General Electric IC697CMM742 Ethernet Interface
Item Number: IC697CMM742
Brand: GE
Lead Time: In stock
Description: Ethernet Interface
Payment: T/T
Product Description
GE IC697CMM742 is a Type 2 Ethernet interface module that can be inserted into a single slot of an IC697 PLC rack and configured using the IC641 PLC programming software. Up to four modules can be installed in a single CPU rack. It supports configuration- and logic-based Ethernet Global Data exchange and provides TCP/IP communication services using SRTP (proprietary protocol), covering a 4-layer TCP/IP protocol stack.
Function & Features
- The IC697CMM742 is equipped with 3 network ports: 10BaseT (RJ-45 connector), 10Base2 (BNC connector), and AUI (15-pin D-type connector). It can automatically identify and select the port in use, and only one port is enabled at the same time.
- The 10BaseT and 10Base2 ports can directly connect to the corresponding network (such as twisted pair network hub, thin coaxial cable network) without external transceivers; the AUI port supports multiple 10Mbps media (such as 10Base5, 10BaseF, 10Broad36, etc.) through a user-supplied 802.3-compatible transceiver with SQE option enabled.
- The IC697CMM742 supports communication with other IC697, IC693 PLCs, hosts running Host Communications Toolkit or CIMPLICITY software, and computers running TCP/IP version programming software (MS-DOS or Windows systems).
Specifications
|
Specification |
Details |
|
Model |
IC697CMM742 |
|
Module Operating Voltage |
+5 VDC, +12 VDC (from PLC power supply) |
|
Module Current Drain |
2.0 Amps (+5 VDC), typical 0.5 Amps (+12 VDC), maximum when powering an external AU transceiver |
|
Module Operating Temperature |
0°C to +55°C (32°F to 131°F), ambient |
|
LED Indicators |
MODULE OK LAN ONLINE SERIAL ACTIVE STATUS |
|
Connectors |
- Station Manager (RS-232) Port: 6-pin female RJ-11 - Software Load (RS-485) Port: 15-pin female D-connector - 10BaseT Port: 8-pin female RJ-45 - AUI Port: 15-pin female D-connector with slide-lock - 10Base2 port: female BNC connector |
|
Fuse, Replaceable |
5 x 20mm, 250V, 1.0A, slow acting |
Loading comments...
General Electric IC697CMM742 Ethernet Interface
Item Number: IC697CMM742
Brand: GE
Lead Time: In stock
Description: Ethernet Interface
Payment: T/T
Product Description
GE IC697CMM742 is a Type 2 Ethernet interface module that can be inserted into a single slot of an IC697 PLC rack and configured using the IC641 PLC programming software. Up to four modules can be installed in a single CPU rack. It supports configuration- and logic-based Ethernet Global Data exchange and provides TCP/IP communication services using SRTP (proprietary protocol), covering a 4-layer TCP/IP protocol stack.
Function & Features
- The IC697CMM742 is equipped with 3 network ports: 10BaseT (RJ-45 connector), 10Base2 (BNC connector), and AUI (15-pin D-type connector). It can automatically identify and select the port in use, and only one port is enabled at the same time.
- The 10BaseT and 10Base2 ports can directly connect to the corresponding network (such as twisted pair network hub, thin coaxial cable network) without external transceivers; the AUI port supports multiple 10Mbps media (such as 10Base5, 10BaseF, 10Broad36, etc.) through a user-supplied 802.3-compatible transceiver with SQE option enabled.
- The IC697CMM742 supports communication with other IC697, IC693 PLCs, hosts running Host Communications Toolkit or CIMPLICITY software, and computers running TCP/IP version programming software (MS-DOS or Windows systems).
Specifications
|
Specification |
Details |
|
Model |
IC697CMM742 |
|
Module Operating Voltage |
+5 VDC, +12 VDC (from PLC power supply) |
|
Module Current Drain |
2.0 Amps (+5 VDC), typical 0.5 Amps (+12 VDC), maximum when powering an external AU transceiver |
|
Module Operating Temperature |
0°C to +55°C (32°F to 131°F), ambient |
|
LED Indicators |
MODULE OK LAN ONLINE SERIAL ACTIVE STATUS |
|
Connectors |
- Station Manager (RS-232) Port: 6-pin female RJ-11 - Software Load (RS-485) Port: 15-pin female D-connector - 10BaseT Port: 8-pin female RJ-45 - AUI Port: 15-pin female D-connector with slide-lock - 10Base2 port: female BNC connector |
|
Fuse, Replaceable |
5 x 20mm, 250V, 1.0A, slow acting |
