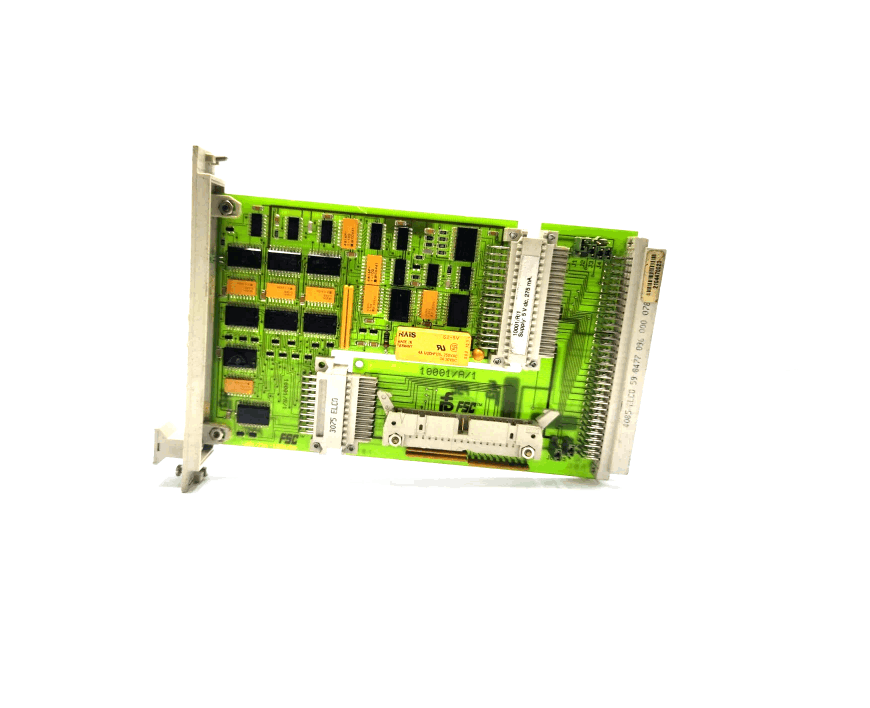

Honeywell 10001/R/1 Vertical Bus Driver
Item Number: 10001/R/1
Brand:Honeywell
Lead Time: In stock
Description: Vertical Bus Driver
Payment: T/T
Product Description
Honeywell 10001/R/1 Vertical Bus Driver (VBD) is a module that connects the central part (CP) and the I/O layer in the FSC system. It is located in the central part rack and is connected to the horizontal bus driver (HBD) module through a vertical bus flat cable.
The 10001/R/1 module is similar to the 10001/1/1 module in structure. Both consist of an electronic part (mainboard) and a wiring part (10001/A/1). The 10001/A/1 part is fixed to the 19-inch rack through the bolts on the 96-pin connector. The electronic part of the VBD can be replaced without cutting the vertical bus flat cable.
Function & Features
Connection capacity
Each central part of 10001/R/1 can be installed with up to 14 vertical bus drivers, and each vertical bus driver can support up to 10 horizontal bus driver modules0
Application configuration
In different system configurations, such as non-redundant CP, redundant CP, non-redundant I/O, redundant I/O, etc., 10001/R/1 VBD has corresponding application methods.
Specifications
|
Category |
Specification |
10001/R/1 |
|
General |
Type number: |
10001/R/1 |
|
Approvals: |
CE, TÜV, UL |
|
|
Software versions: |
All |
|
|
Space requirements: |
4 TE, 3 HE (= 4 HP, 3U) |
|
|
Power |
Power requirements: |
5 Vdc, 275 mA |
|
Ripple content: |
< 50 mV p-p |
|
|
Note |
Do not remove or replace these modules while the power to their Central Part is on. |
|
FAQs
Q: What is the brand?
A:Honeywell
Q: What is the type?
A:Vertical Bus Driver
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
