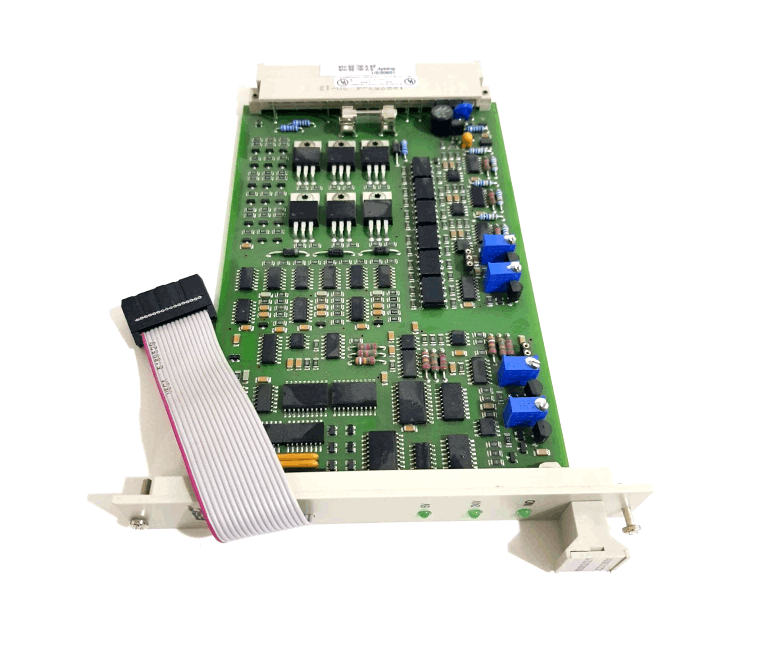

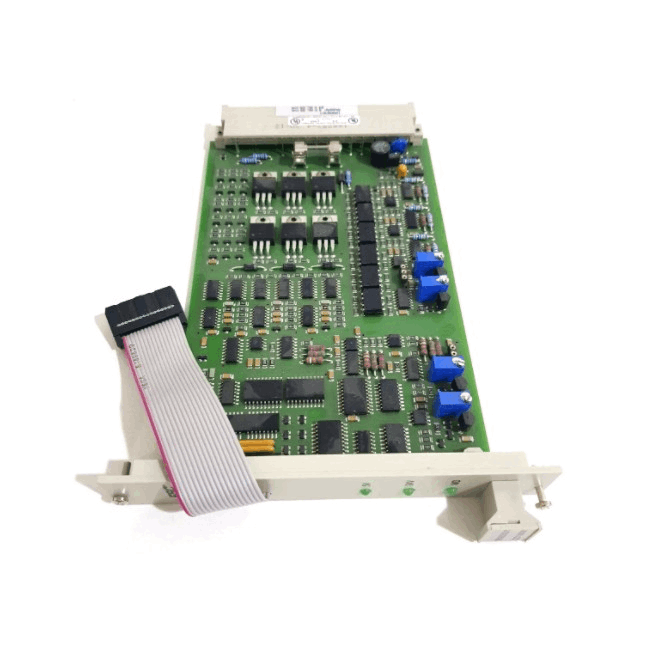

Honeywell 10302/2/1 Watchdog Repeater
Product Description
Honeywell 10302/2/1 is a watchdog repeater module. It doesn't directly monitor processor programs, but rather monitors the health of the power supply to I/O modules and controls the watchdog inputs of connected output modules accordingly.
This repeater can take over watchdog signal transmission when existing watchdog modules (such as the 10005/1/1) are no longer sufficient for certain system scenarios. The Honeywell 10302/2/1 connects via a horizontal bus and can be installed strictly within the I/O segment where the monitored I/O modules are located. It also supports live replacement.
Function & Features
- Power Monitoring and Safety Interlocks: The Honeywell 10302/2/1 monitors the power supplied to the I/O modules. If a power failure is detected, it immediately de-energizes its watchdog output (WDG OUT), placing the controlled equipment in a safe state.
- Mixed Configuration: In a mixed configuration of redundant and non-redundant I/O, the Honeywell 10302/2/1 generates a watchdog signal for the output modules in the non-redundant I/O portion.
- Physical Location: The Honeywell 10302/2/1 must be installed in the I/O rack it monitors and cannot control another I/O partition.
- Bus Connection: The Honeywell 10302/2/1 requires a horizontal bus connection and must be installed in a specific slot (positions 1, 2, or 11-18) in the I/O rack.
Specifications
|
Category |
Parameter |
Specification |
|
General |
Type Number |
Honeywell 10302/2/1 (12600) |
|
Approvals |
CE, TÜV, UL |
|
|
Software Versions |
≥ 3.00 |
|
|
Space Requirements |
4 TE, 3 HE (= 4 HP, 3U) |
|
|
Power |
5Vdc Current Draw |
35 mA (without WDROUT output current) |
|
24Vdc Current Draw |
25 mA |
|
|
Key Coding |
WDG1 + WDG2 Input Current |
0.1 mA |
|
Module Code (Holes) |
A5, A9 |
|
|
Rack Code (Large Pins) |
A5, A9 |
FAQ
Q: What is the brand?
A: Honeywell
Q: What is the type?
A:Watchdog Repeater
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
