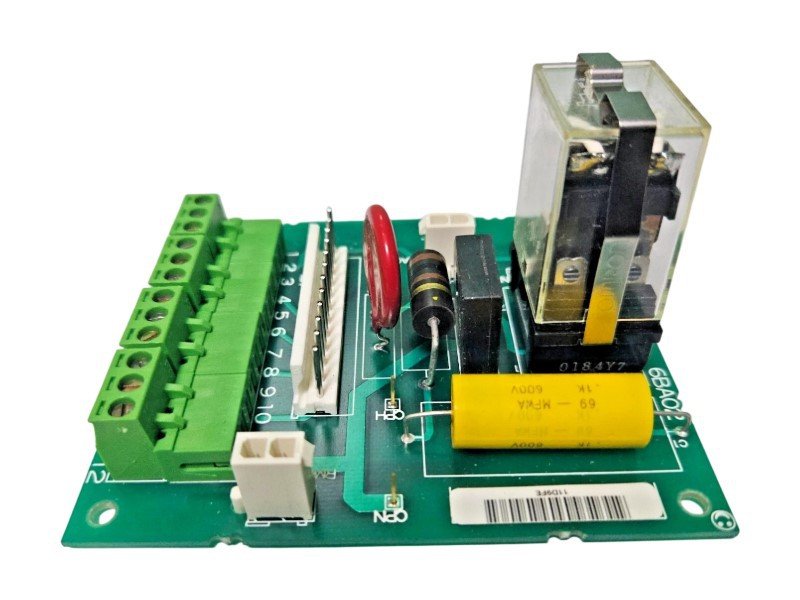

General Electric DS200CPCAG1A DS200CPCAG1ABB Contactor Pilot Board
Item Number:DS200CPCAG1A DS200CPCAG1ABB
Brand: GE（General Electric）
Lead Time: In stock
Description:Contactor Pilot Board
Payment: T/T
Product Description
GE DS200CPCAG1A/DS200CPCAG1ABB is a contactor auxiliary control board that primarily drives and controls the closing and releasing of high-power contactors. As a drive interface, this board converts control signals into the power required to directly operate the contactor coils.
Note: The relays on this board are protruding and fragile components. Care must be taken during installation to avoid impact with metal structures or other components within the drive cabinet.
Function & Features
- Interface Configuration: The DS200CPCAG1A/DS200CPCAG1ABB board features one 12-pin connector, two 2-pin connectors, and four terminal blocks, supporting up to 12 signal lines.
- Dedicated Relay: The DS200CPCAG1A/DS200CPCAG1ABB board includes one built-in 24V DC socket-type power relay. Note that the GE DS200CPCAG1A board itself does not have any other adjustable hardware.
- Signal Processing: The DS200CPCAG1A/DS200CPCAG1ABB terminal blocks support the connection of signal lines to the board and signal processing. Some signal lines transmit signals to the board, while others transmit processed signals out of the board.
Specifications
|
Parameter |
Value |
|
Product Model |
DS200CPCAG1A (or DS200CPCAG1ABB) |
|
Product Type |
Contactor Control Board |
|
Input Power - Voltage |
115 V AC |
|
Connectors |
(1)12-pin connector (2)2-pin connectors (4 )terminal blocks, supporting up to 12 signal wires at most |
|
Test Points |
CPH: CPCA power positive input test point; CPN: CPCA power negative input test point; PSP: CPCA coil control positive input test point; PSN: CPCA coil control negative input test point |
