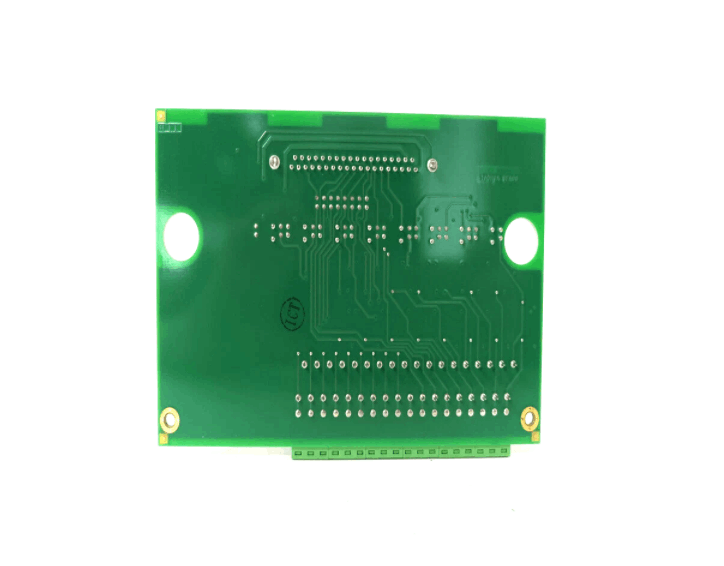

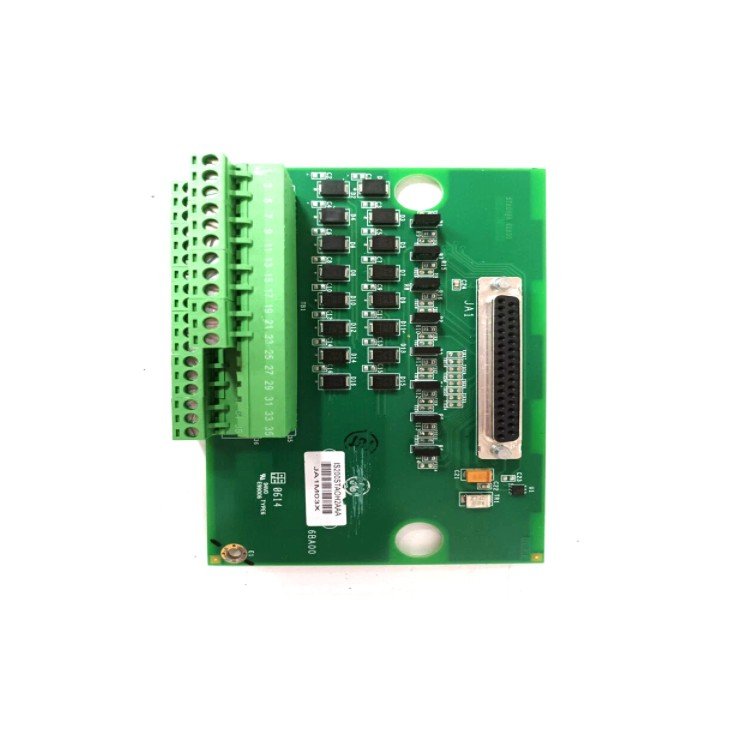

General Electric IS200STAOH2AAA Analog Output Terminal Board
Item Number: IS200STAOH2AAA
Brand: GE
Lead Time: In stock
Description: Analog Output Terminal Board
Payment: T/T
Product Description
GE IS200STAOH2AAA analog output terminal board is used as an interface between the controller and the actuator (such as valve positioner, speed control device, etc.). It can convert the digital instructions of the controller into analog current signals to drive the equipment.
Product Positioning: Simplex (single-channel) analog output terminal board.
Main Function: Cooperates with PAOC I/O components to control and transmit signals.
Function & Features
- The IS200STAOH2AAA connects to the upper PAOC I/O pack via a D-type connector. The I/O pack communicates with the host controller via Ethernet and also provides power to the IS200STAOH2AAA termination board.
- Each output utilizes closed-loop control. The IS200STAOH2AAA board monitors the actual output current by detecting the voltage drop across a current-sensing resistor in the local loop and feeds this signal back to the I/O processor.
- The IS200STAOH2AAA uses a 36-position Euro-block terminal block. The "H2" in the model number indicates that the terminal block is permanently fixed, while the "H1" model indicates that it is pluggable.
Technical Specifications
|
Category |
Details |
|
Product Model |
IS200STAOH2AAA |
|
Belonging System |
GE Mark VI |
|
Related products |
IS200STAOH2A |
|
Upstream Communication Interface |
D-type connector |
|
Downstream Field Interface |
36-position Euro-style terminal block |
|
Dimensions |
-Depth: 146.27mm -Height: 118.64mm -Width：30mm |
|
Weight |
0.4 kg |
