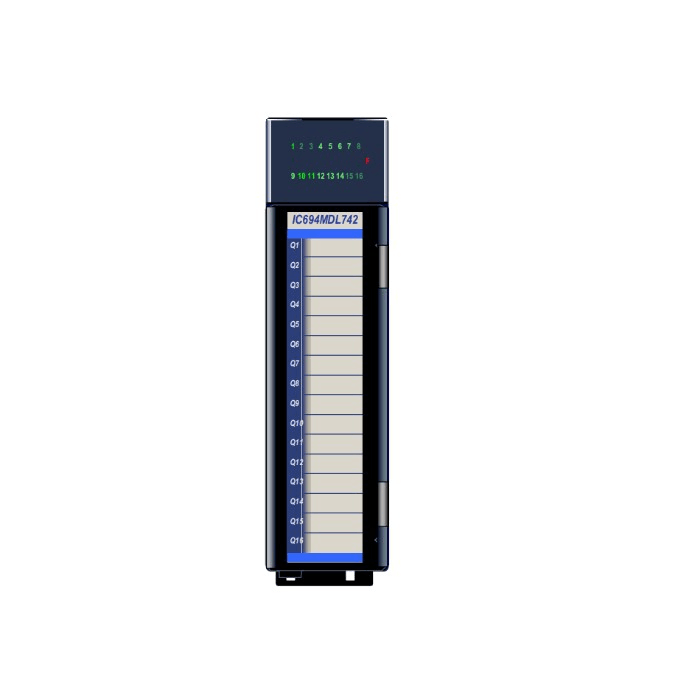

General Electric IC694MDL742 Electronic Short Circuit Protection Output Module
Item Number:IC694MDL742
Brand: GE
Lead Time: In stock
Description:Electronic Short Circuit Protection Output Module
Payment: T/T
Product Description
IC694MDL742 is a 12/24V DC Electronic Short Circuit Protection Output Module for GE Fanuc RX3i series PLCs. It provides 16 output points divided into two groups of 8, and each group has a common power output terminal. It can provide output control for a variety of load devices such as motor starters, solenoid valves and indicators, and has an electronic short circuit protection function to protect the module itself when the load is short-circuited.
Function & Features
- Positive Logic Characteristics: IC694MDL742 supplies current from the user common (positive power bus) to the load, which is connected between the negative power bus and the output terminals.
- Electronic Short Circuit Protection (ESCP): IC694MDL742 automatically detects short circuits and cuts off the output of the affected group, while illuminating the fault indicator (F).
- Low Voltage Identification: The blue stripe on the label indicates that the MDL742 is a low voltage module.
Specifications
|
Parameter |
Detail |
|
Model |
IC694MDL742 |
|
Rated Voltage |
12/24 volts DC |
|
Output Voltage Range |
12 to 24 volts DC (+20%, -15%) |
|
Outputs per Module |
16 (two groups of eight outputs each) |
|
- Field to Backplane (optical) and to Frame Ground |
250 VAC continuous |
|
- Group to Group |
1500 VAC for 1 minute |
|
Output Current |
|
|
- Maximum per point |
1 Amp |
|
- Maximum per group @ 50°C |
4 Amps |
|
- Maximum per group @ 60°C |
3 Amps |
|
- Total load current |

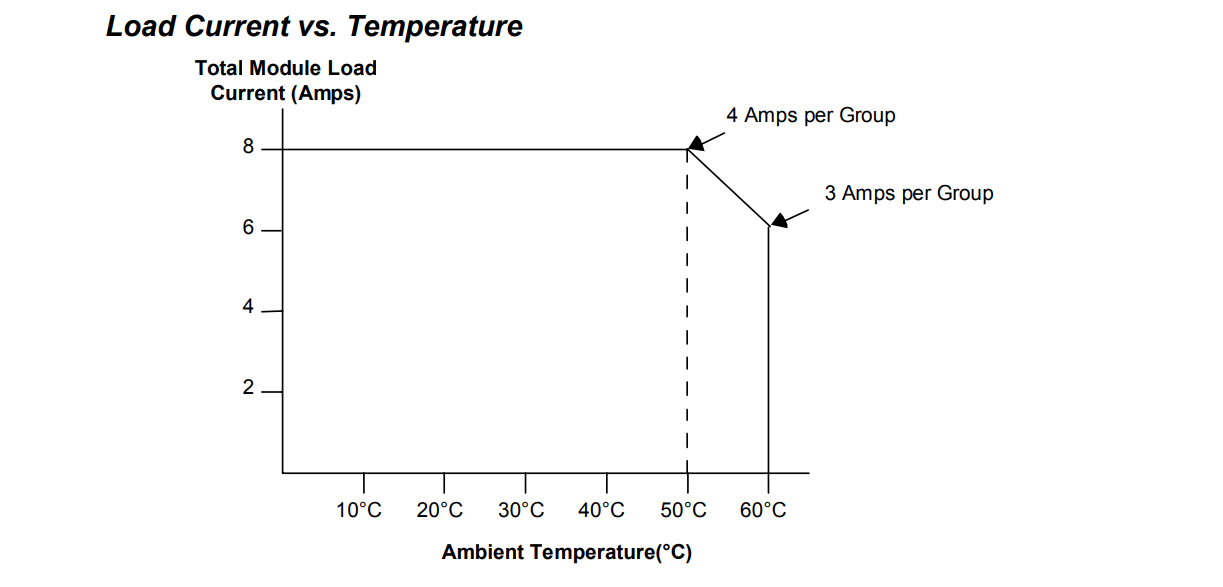

Depends on ambient temperature (see derating curve) |
|
Power Consumption |
130 mA (all outputs ON) from 5V backplane bus |
|
Output Characteristics |
|
|
- Inrush Current |
5.2 Amps for 10 ms |
|
- Output Voltage Drop |
1.2 volts maximum |
|
- Off-state Leakage |
1 mA maximum |
|
- On Response Time |
2 ms maximum |
|
- Off Response Time |
2 ms maximum |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Electronic Short Circuit Protection Output Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
