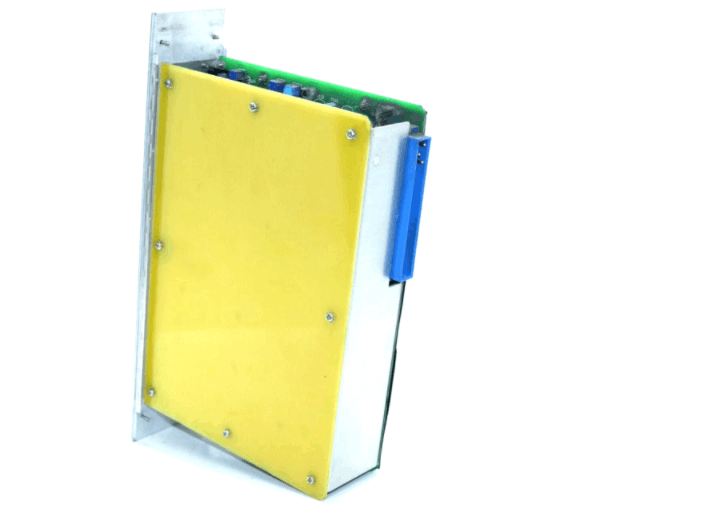

General Electric IC698PSA350 Power Supply Module
Item Number: IC698PSA350
Brand: GE
Lead Time: In stock
Description: Power Supply Module
Payment: T/T
Product Description
GE IC698PSA350 is a power supply module for the PACSystems RX7i series. The module provides +5VDC, +12VDC, and -12VDC outputs.
It provides power and logic-level timing signals to modules in the main chassis and must be inserted into slot 0 (only) of the main chassis.
While the IC698PSA350 features a slide-in rack-mount structure, be aware that hazardous voltages are present within the module when input power is present.
Function & Features
- The IC698PSA350 outputs +5 VDC, +12 VDC, and -12 VDC, with corresponding output currents of 60 amps, 12 amps, and 4 amps, respectively, for a total output power of 100 watts at an ambient temperature of 0-60°C without forced air cooling.
- The IC698PSA350 supports a wide input range of 85-264 VAC or 100-150 VDC and features power factor correction for AC operation.
- The IC698PSA350 features a two-position on/off logic-level switch on the front panel that enables or disables the output channel without affecting the AC line input.
Specifications
|
Parameter |
Details |
|
Model |
IC698PSA350 |
|
Input Voltage Range |
85-264 VAC (47-63Hz) / 100-150 VDC |
|
Input Current |
Max. 5A @ 100VAC / 2.5A @ 200VAC |
|
Power Factor |
≥0.95 (with active PFC) |
|
Output Voltage |
+5VDC (±1%), +12VDC (±5%), -12VDC (±5%) |
|
Output Current |
+5VDC: 60A (peak), +12VDC: 12A, -12VDC: 4A |
|
Total Output Power |
100W (0-60°C natural cooling) / 150W (forced air cooling) |
|
Dimensions |
19.54mm(H) × 54.32mm(W) × 102.12mm(D) |
|
Weight |
0.98kg |
