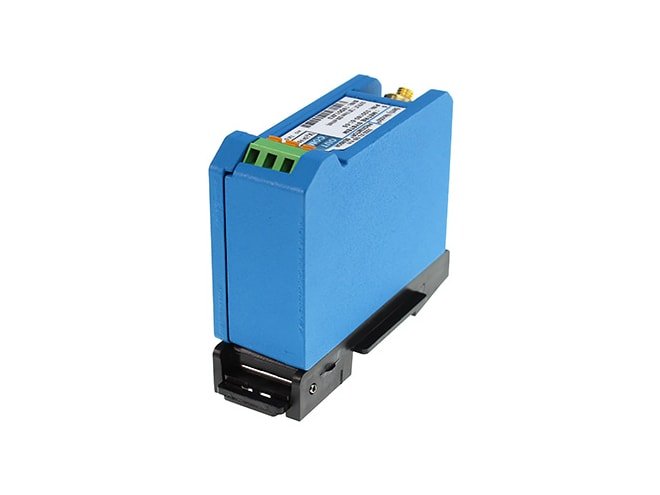

Bently Nevada 330980-50-00 NSv Proximitor Sensor
Item Number:330980-50-00
Brand:Bently Nevada
Price:$1
Lead Time: In stock
Description:NSv Proximitor Sensor
Payment: T/T
Product Description
Bently Nevada 330980-50-00 NSv proximity sensor is part of the 3300 series and is designed for installation applications with limited space, especially for centrifugal air compressors, refrigeration compressors, process gas compressors, etc. The sensor is capable of monitoring radial vibration of shafts with a diameter of less than 51 mm and measuring the axial position of flat targets with a diameter of less than 15 mm, suitable for small machinery or space-constrained systems.
Function & Features
- Small Target and Radial Vibration Monitoring: The Bently Nevada 330980-50-00 can monitor radial vibration of shafts less than 51 mm in diameter and measure the axial position of planar targets less than 15 mm in diameter, making it suitable for precise measurement of small machines or space-constrained systems.
- Replacement and Upgrade Capability: The Bently Nevada 330980-50-00 can replace the 3300 RAM Sensor System, 3000 Series or 7000 Series 190 Sensor System.
- Eddy-Current Sensor Output: With typical eddy-current sensor output, the average scale factor is 7.87 V/mm (200 mV/mil), and the linear range is slightly smaller than the traditional 3300 XL 5mm/8mm system, but larger than the old 3000 Series 190 Sensor System.
Specifications
|
Parameter |
Value |
| Model | 330980-50-00 |
|
Series |
3300XL |
|
Cable Length Option |
4.5 m |
|
Cable Option |
Without Stainless Steel Armor |
|
Material |
Coaxial Cable, FEP (Fluorinated Ethylene Propylene) Insulation |
|
DC Resistance |
Center Conductor: 0.220 Ω/m (0.067 Ω/ft) Shield: 0.066 Ω/m (0.020 Ω/ft) |
|
Capacitance |
69.9 pF/m (21.3 pF/ft) |
