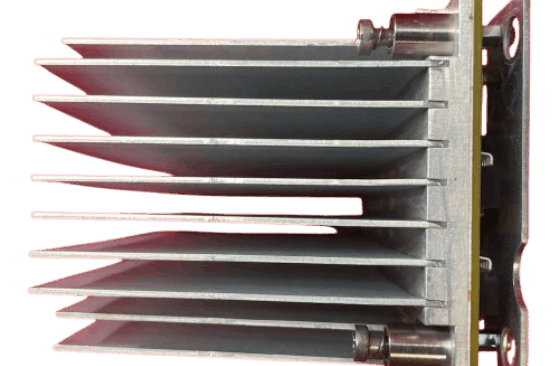

General Electric IS210WSVOH1A Servo Driver Module
Item Number: IS210WSVOH1A
Brand: GE
Lead Time: In stock
Description: Servo Driver Module
Payment: T/T
Product Description
GE IS210WSVOH1A is a Servo Driver Module for the Mark VIe series. This module utilizes servo control technology and can convert a P28 voltage input into positive 15 V and negative 15 V outputs to power the servo current regulation circuit.
Note:
The IS210WSVOH1A must be used with the PSVO I/O package.
Recommended cable specification: 18AWG shielded twisted pair.
Maximum cable length: 15 meters (a signal conditioner is required for longer lengths).
Function & Features
- WSVO Servo Drive and Connectors: The IS210WSVOH1A connects via three J2 connectors labeled R, S, and T. Each individual WSVO unit is securely fastened to the module with four screws.
- Dual-channel current regulation: Channels A and B are independently controlled, with a maximum output current of 5A per channel. The IS210WSVOH1A uses PWM modulation with a switching frequency of 20kHz.
- Servo Control: The IS210WSVOH1A utilizes a dual-channel digital current regulator with a control bandwidth of 0-2kHz.
- IS210WSVOH1A Optional Accessories: Mounting Kit (WSVO-MNT-KIT), Connection Cable (WSVO-CBL-1M), and Spare Parts Kit (WSVO-SP-KIT).
Specifications
|
Parameter |
Details |
|
28 V dc, 1 A dc |
|
|
LVDT In |
7.14 V ac, 3.2 KHz |
|
Speed In |
-15 to +15 V dc |
|
LVDT Out |
7.14 V ac, 127 mA ac, 3.2 KHz |
|
Servo Out |
-10 to +10 V dc, -120 to +120 mA dc |
|
Speed Sensor Power Out |
24 V dc, 40 mA dc |
| 5 groups of independent programmable gains |
Proportional gain (Kp) |
| Integral gain (Ki) | |
| Derivative gain (Kd) | |
| Feedforward gain (Kff) | |
| Speed feedback gain (Kv) |
