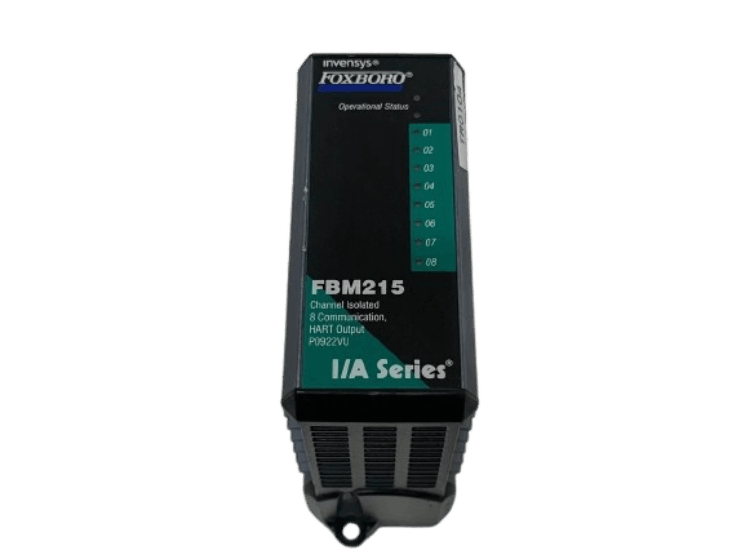

Foxboro FBM215 P0922VU HART® Communication Output Module
Item Number: FBM215
Brand:Foxboro
Lead Time: In stock
Description: HART® Communication Output Module
Payment: T/T
Product Description
Foxboro FBM215 P0922VU is a HART communication output module with 8-channel isolated output. It supports mixed access of standard 4-20 mA devices and HART devices.
As a HART communication field device host, it allows the Foxboro DCS system to request and receive two digital messages per second from field devices. It supports HART general commands, general commands and device-specific commands (burst communication mode is not supported) through message transparent transmission function.
Command implementation requires Foxboro DCS's HART field device expert software. Each channel is equipped with an independent isolated power supply, and the housing is made of sturdy extruded aluminum, suitable for G3-level harsh environments defined by the ISA S71.04 standard.
Function & Features
- Multi-voltage input support: Each channel of FBM217 can receive 2-wire DC voltage signals, and can adapt to 30 VDC, 125 VDC, 120 VAC, 240 VAC through different TAs, and support voltage monitoring or contact sensing functions.
- Redundant configuration: Can be used as a single module or in pairs (dual FBM217 modules). In redundant mode, the same TA can be shared through redundant adapters, and the input current is doubled.
- Sequence of Events (SOE): FBM217 supports millisecond-level event acquisition with I/A Series v8.x and above (GPS time synchronization required). Earlier versions (
Specifications
|
Category |
Parameter |
Details |
|
Weight |
Module |
284 g (10 oz) approximate |
|
Termination Assembly (TA) |
181 g (0.40 lb) approximate |
|
|
Dimensions |
Module |
|
|
Height (excluding lugs) |
102 mm (4 in) |
|
|
Height (including lugs) |
114 mm (4.5 in) |
|
|
Width |
45 mm (1.75 in) |
|
|
Depth |
104 mm (4.11 in) |
|
|
Termination Assembly (TA) |
Refer to *Dimensions - Nominal, page 13* |
|
|
Part Numbers |
FBM215 Module |
RH922VU |
|
Termination Assemblies |
Refer to *Functional Specifications - Termination Assemblies, page 11* |
|
|
Termination Cables |
Cable Lengths |
Up to 30 m (98 ft) |
|
Cable Materials |
Polyurethane or Low Smoke Zero Halogen (LSZH) |
|
|
Cable Types |
Type 1 (See Table 2) |
|
|
Connectors |
||
|
FBM Baseplate End |
37-pin D-subminiature |
|
|
Termination Assembly End |
25-pin D-subminiature |
