General Electric IS200ISBDG1A IS200ISBDG1AAA InSynchronous Bus Delay Module

GE IS200ISBDG1A is a synchrobus delay module designed and manufactured by General Electric (GE) and is part of the EX2100 series. It is primarily used in GE excitation turbine control systems. The module is used to control and manage the timing and synchronization of data transmission between different components in the system. It ensures that data reaches the target location accurately and in a timely manner, despite possible delays in the system due to various factors. Excitation control systems are critical to maintaining the performance and operation of generators, and the synchrobus delay module ensures the timing and synchronization of control signals in these systems, which is key to optimizing generator operation.

Fuctions & Features

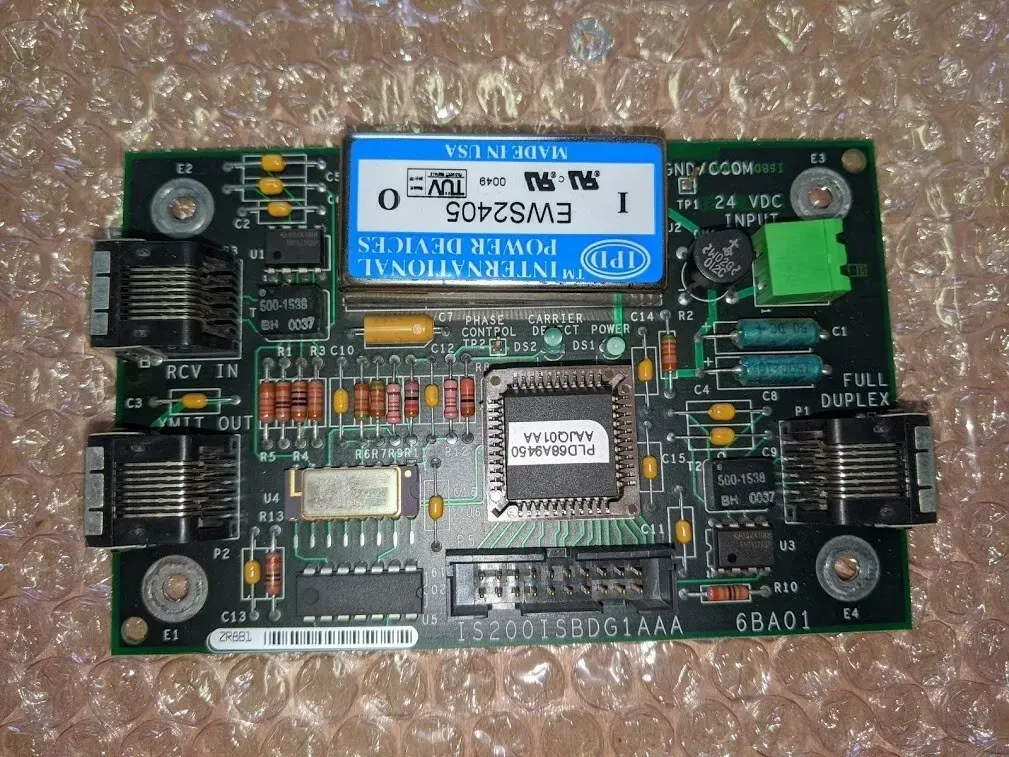

• Edge Design and Connectors: The GE IS200ISBDG1A IS200ISBDG1AAA InSynchronous Bus Delay Module has a hole for mounting a connector at each corner. The terminals on the corners are marked as E1, E2, E3, and E4, which are key nodes for electrical connection and signal transmission.

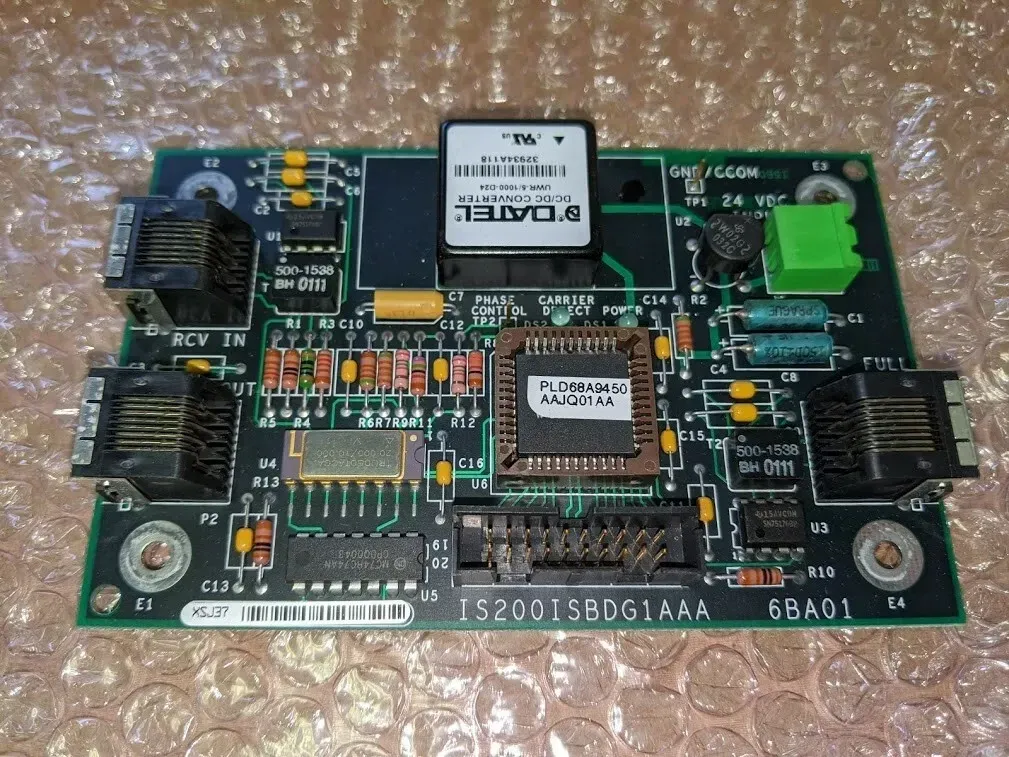

• DATEL DC/DC Converter: The GE IS200ISBDG1A IS200ISBDG1AAA InSynchronous Bus Delay Module contains a DATEL DC/DC converter component that can convert and regulate power as needed, which is an important part of the normal operation of the module.

• LED Indicator: The GE IS200ISBDG1A IS200ISBDG1AAA InSynchronous Bus Delay Module is equipped with two LED indicators, "Carrier Detect" indicates the detection status of the carrier signal, and "Power" indicates the power status of the module, which can intuitively help monitor the operation of the module.

Specification
