ABB TU811V1 3BSE013231R1 Compact Module Termination Unit
Item Number:TU811V1 3BSE013231R1
Brand: ABB
Lead Time: In stock
Description:Compact Module Termination Unit
Payment: T/T
Product Description

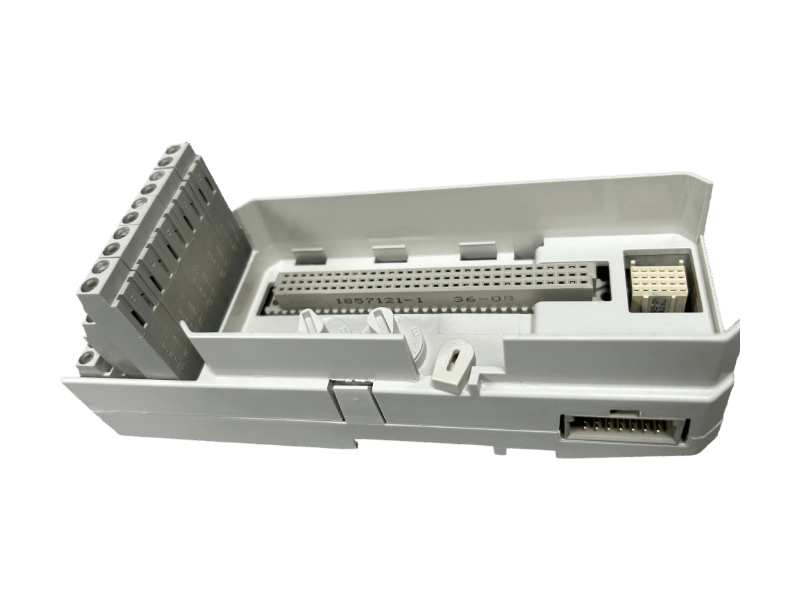

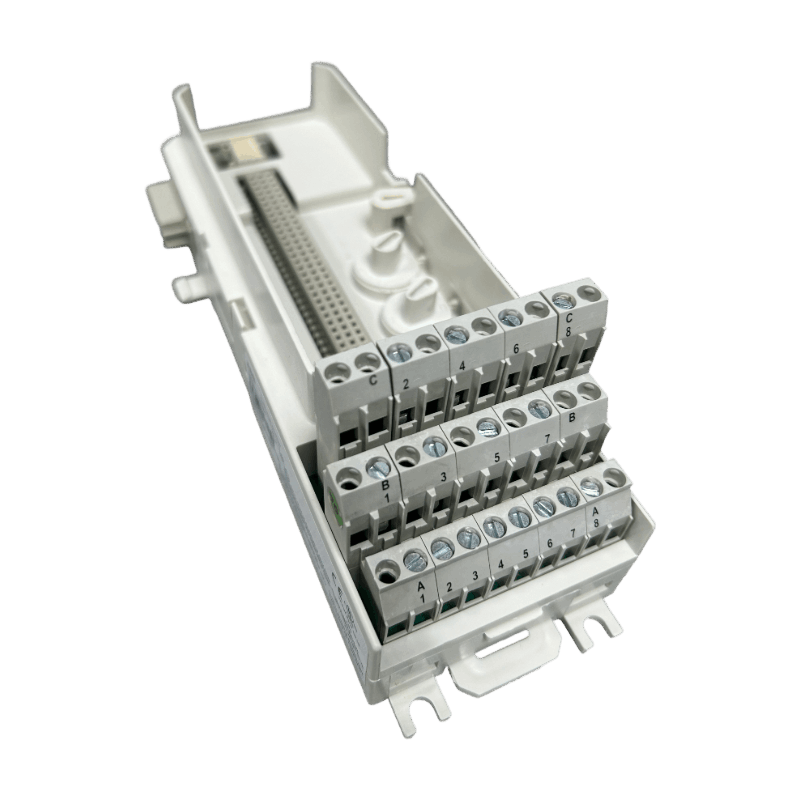

ABB TU811V1 is an 8-channel, 250V compact module terminal unit (MTU) for S800 I/O. The MTU is a passive unit that is primarily used to connect field wiring to the I/O modules, and it also contains part of the ModuleBus. The MTU distributes the ModuleBus to the I/O modules and the next MTU, and generates the correct address for the I/O modules by transmitting the output position signal to the next MTU. The MTU can be configured for different types of I/O modules using two mechanical keys. This is only a mechanical configuration and does not affect the functionality of the MTU or I/O modules. Each key has six positions, resulting in a total of 36 different configurations.
Function & Features
Passive Interface Unit: The TU811V1 unit itself requires no power and is a passive device. It provides bus connectivity for active S800 I/O modules (such as AI, AO, DI, and DO modules).
ModuleBus Distribution Hub: The TU811V1 is a component of the ModuleBus (the internal communication bus for the S800 I/O). It distributes the ModuleBus to the I/O modules it carries and passes it on to the next MTU, forming a bus chain.
Mechanical Keying: The TU811V1 is configured using two mechanical keys, each with six positions, for a total of 36 possible configurations. This prevents the incorrect type of I/O module from being inserted into the wrong MTU.
Specifications
|
Parameter |
Specification |
| Model | TU811V1 |
|
Part Number |
3BSE013231R1 |
|
Type |
Compact Module Termination Unit |
|
Connection |
|
|
Channels |
8 |
|
Voltage |
250 V |
|
Mounting |
Both directions |
|
Mounting Detail |
Horizontal: 55°C (131°F); Vertical: 40°C (104°F) |
|
Compatible I/O Modules |
DI820, DI821, DO820, DO821 |
|
Single/Redundant I/O |
Single |
|
Detailed Data |
|
|
Maximum Current per I/O Channel |
3 A |
|
Acceptable Wire Sizes |
Solid: 0.2 - 4 mm²; Stranded: 0.2 - 2.5 mm² (24 - 12 AWG) |
|
Recommended Torque |
0.5 - 0.6 Nm |
|
Stripping Length |
7 mm |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
