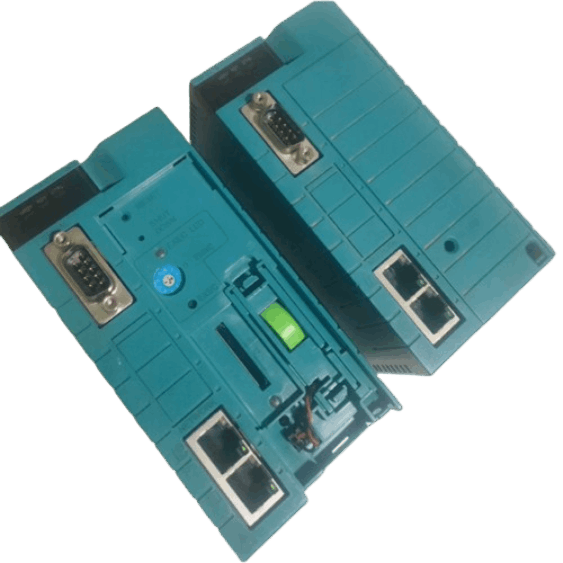

Yokogawa NFCP502-W15 CPU Module
Product Description
The Yokogawa NFCP502-W15 is a CPU module for Yokogawa Electric's Field Control Node (FCN) control station. It is the brain of the entire control station, responsible for executing logic control, sequence control, batch control, and other tasks.
Model and Suffix Codes：
|
Code Segment |
Meaning |
|
NFCP502 |
CPU module for FCN with 4 Ethernet ports. (NFCP501 has 2 ports). |
|
W |
With extended functions (*1) |
|
1 |
1 With Extended Temperature range option |
|
5 |
Basic type with no explosion protection |
Fuction & features
- As a NFCP502 model, the NFCP502-W15 has four Ethernet ports for communication with operator stations (HMIs), engineering stations, MES/ERP systems, and more.
- The NFCP502-W15 utilizes "Duolet Virtual Machine" technology, a Yokogawa innovation that allows the creation of a virtualized execution environment on a single NFCP502 CPU module. This means that critical control tasks and non-critical third-party applications can run simultaneously on the same hardware.
- The NFCP502 supports Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), and Sequential Function Chart (SFC).
Specifications
|
Parameter |
Description |
|
Model |
NFCP502-W15 |
|
Processor |
Atom E3815 1.46 GHz |
|
Memory - Main |
256 MB with ECC |
|
Memory - Static RAM |
2 MB with ECC, backed up by battery |
|
Communication method |
Full/Half duplex (software settings) |
|
Synchronisation |
Asynchronous |
|
I/O interface |
SB bus (duplex) |
|
Battery (*3) |
1000 mAh graphite fluoride lithium battery (*4) |
|
Protection |
CPU cover (with the hole for wire lock) |
|
Occupying slots |
2 |
|
Duplex configuration |
Possible (*5) |
|
Weight |
0.9 kg |
|
Dimensions (W x H x D) |
65.8 *130 *149.3 mm |
