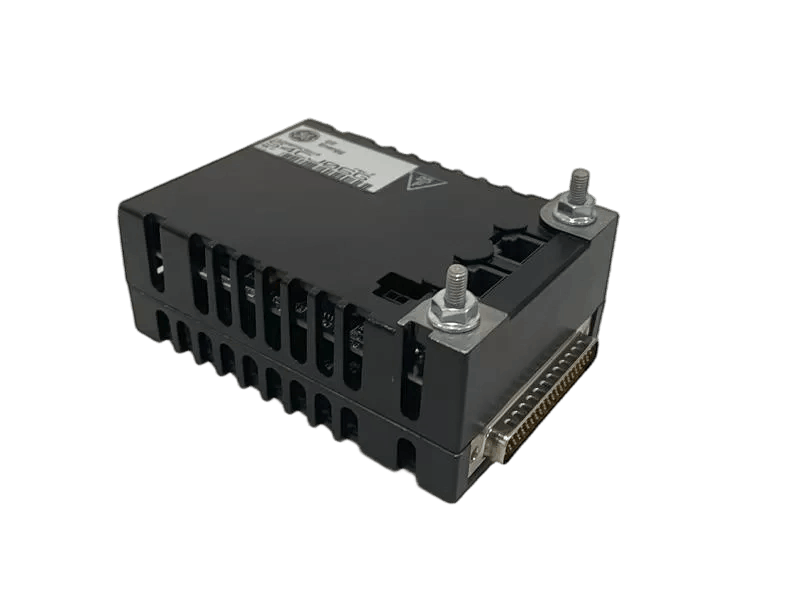

General Electric IS220PCNOH1A CANopen Master Gateway Module
Item Number:IS220PCNOH1A
Brand: GE
Lead Time: In stock
Description: CANopen Master Gateway Module
Payment: T/T
Product Description
GE IS220PCNOH1A is a CANopen master gateway module. This module acts as a network management master station for establishing connections between CANopen fieldbus networks and Mark Vie controller networks. It primarily maps I/O data from Woodward GS6 and GS16 valves.
Note: The IS220PCNOH1A module supports two redundancy schemes: a non-redundant configuration with a single I/O module and a single Ethernet connection, or a redundant configuration with a single I/O module and dual Ethernet connections.
Technical Data
| Product Model | IS220PCNOH1A |
| Upgrade model | IS220PCNOH1B |
| Product Name | CANopen Master Gateway Module |
| Belonging System | GE Mark VIe |
| Communication Role | CANopen Master |
| Maximum Transmission Rate | 500 kbps |
| Installation and Identification | Installed via SPIDG1A Terminal Board and provides electronic ID |
| Length | 126.48mm |
| Width | 101.22mm |
| Height | 74.98mm |
| Weight | 0.92kg |
Function & Features
- Dedicated acquisition carrier board: The IS220PCNOH1A is equipped with a Hilscher GmbH COM-C CANopen communication module, specifically responsible for CANopen protocol processing.
- Master Function: As a CANopen master, the IS220PCNOH1A actively manages and polls slave devices on the CANopen network.
- Proprietary Device Connection: IS220PCNOH1A is used to communicate with one to five Woodward GS6 or GS16 valves.
Loading comments...
General Electric IS220PCNOH1A CANopen Master Gateway Module
Item Number:IS220PCNOH1A
Brand: GE
Lead Time: In stock
Description: CANopen Master Gateway Module
Payment: T/T
Product Description
GE IS220PCNOH1A is a CANopen master gateway module. This module acts as a network management master station for establishing connections between CANopen fieldbus networks and Mark Vie controller networks. It primarily maps I/O data from Woodward GS6 and GS16 valves.
Note: The IS220PCNOH1A module supports two redundancy schemes: a non-redundant configuration with a single I/O module and a single Ethernet connection, or a redundant configuration with a single I/O module and dual Ethernet connections.
Technical Data
| Product Model | IS220PCNOH1A |
| Upgrade model | IS220PCNOH1B |
| Product Name | CANopen Master Gateway Module |
| Belonging System | GE Mark VIe |
| Communication Role | CANopen Master |
| Maximum Transmission Rate | 500 kbps |
| Installation and Identification | Installed via SPIDG1A Terminal Board and provides electronic ID |
| Length | 126.48mm |
| Width | 101.22mm |
| Height | 74.98mm |
| Weight | 0.92kg |
Function & Features
- Dedicated acquisition carrier board: The IS220PCNOH1A is equipped with a Hilscher GmbH COM-C CANopen communication module, specifically responsible for CANopen protocol processing.
- Master Function: As a CANopen master, the IS220PCNOH1A actively manages and polls slave devices on the CANopen network.
- Proprietary Device Connection: IS220PCNOH1A is used to communicate with one to five Woodward GS6 or GS16 valves.
