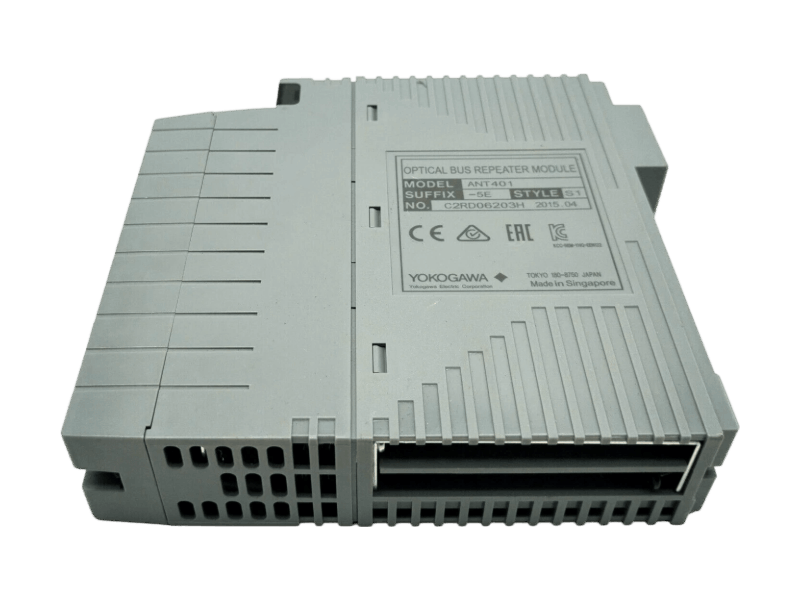

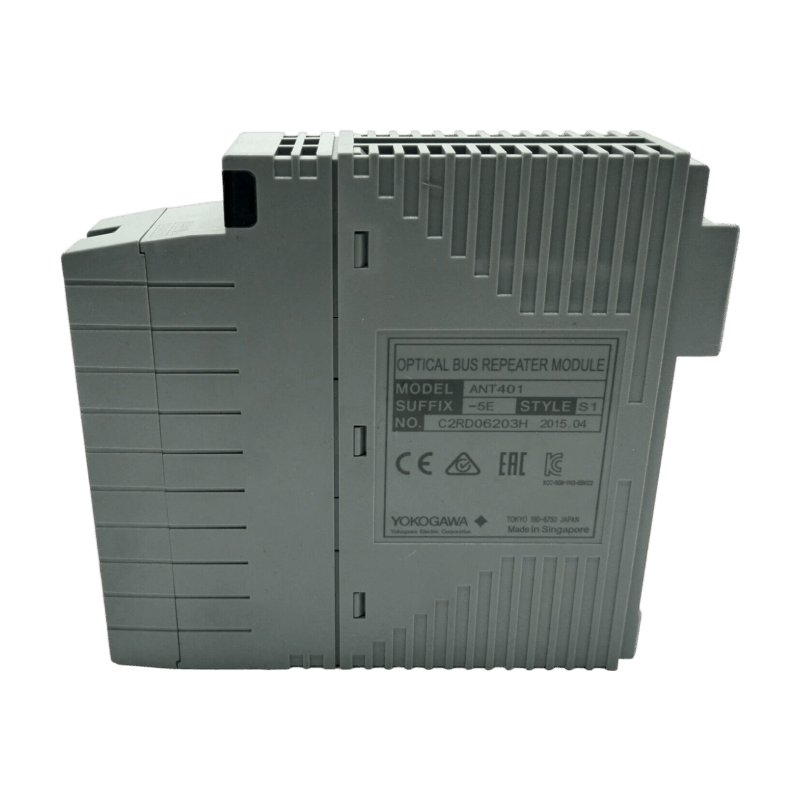

Yokogawa ANT401-5E/CU1T Optical ESB Bus Repeater Module
Item Number: ANT401-5E/CU1T
Brand: Yokogawa
Lead Time: In stock
Description: Optical ESB Bus Repeater Module
Payment: T/T
Product Description
Yokogawa ANT401-5E/CU1T is an Optical ESB Bus Repeater Module for the CENTUM VP control system. Essentially a fiber optic repeater, the module receives electrical ESB bus signals from an FCU or node unit and converts them into optical signals, transmitting them to a distant location (up to 5 km) via fiber optic cable.
At the remote location, another repeater slave module (such as the ANT502) converts the optical signals back into electrical signals for further transmission to the distant ESB node unit.
Functions and components
1. When the ANT401-5E is used with the ANT502 optical ESB bus repeater slave module (connected via fiber optic cable), the ESB bus transmission distance can be extended to 5 km.
2. In a multi-module configuration (ANT401 master module → A2EN501 N-ESB bus repeater slave module → ANT502 slave module), the transmission distance can also be extended to 5 km via fiber optic cable.
3. The ANT401-5E can be installed in the following Field Control Units (FCUs):
- Optical ESB bus repeater module dedicated unit: ANT10U;
- ESB bus node unit: ANB10 series;
- Optical ESB bus node unit: ANB11 series.
Model Specifications Analysis
| Model Element | Description |
|---|---|
| ANT401 | Optical ESB Bus Repeater Master Module 5 km (for N-I/O/FIO) |
| -5 | Standard type with no explosion protection |
| -E | Standard type with explosion protection |
| /CU1T | Connector unit with terminator for ESB Bus |
Master-Slave Collaboration:
The ANT401 functions as the master module and must be paired with a slave module to complete the relay link.
Two Networking Options:
- Direct Connection: ANT401 (Master) ← Fiber → ANT502 (Slave)
- Hybrid Connection: ANT401 (Master) ← Fiber → A2EN501 (N-ESB Repeater Slave) ← Fiber → ANT502 (Slave)
FAQ
Q: What is the brand?
A: Yokogawa
Q: What is the type?
A:Optical ESB Bus Repeater Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
