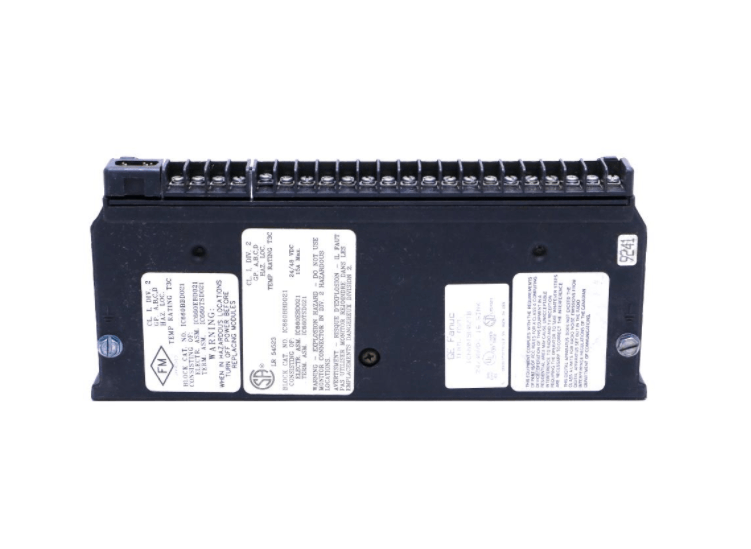

General Electric IC660BBD021 16-Circuit Source/Sink I/O Block
Item Number:IC660BBD021
Brand: GE
Lead Time: In stock
Description:16-Circuit Source/Sink I/O Block
Payment: T/T
Product Description
GE IC660BBD021 is a 16-channel configurable DC I/O module powered by 24/48 VDC, which belongs to the Genius bus intelligent I/O series. This module adopts a sink input design and is specially designed to connect various 3-wire solid-state sensors and electromechanical sensors.
IC660BBD022 (24VDC), IC660BBD020 (24/48VDC)
Sink input module:
IC660BBD023 (24VDC), IC660BBD021 (24/48VDC)
Function & Features
- The IC660BBD021 module has 16 discrete circuits, each of which can be configured as input, tri-state input or output mode.
- IC660BBD021 supports output pulse test function; input filter time can be selected between 10ms - 100ms; the output power-on default state can be set, and the output can be selected to maintain the last state or default state.
- As a member of the GE 16-channel source/sink I/O module family, IC660BBD021 has corresponding source type (Source) and other voltage specification modules (such as 24 VDC version), which can be based on sensor/actuator type (2-wire, 3-wire, etc.).
Specifications
|
Parameter |
Source Blocks |
Sink Blocks |
| Brand | GE Fanuc | IC660BBD021 |
|
Input ON Voltage Range (Relative to DC-) |
16-24VDC (24V supply) 32-48VDC* (48V supply) |
0-8VDC (24V supply) 0-16VDC* (48V supply) |
|
Input OFF Voltage Range (Relative to DC-) |
0-7VDC (24V supply) 0-14VDC* (48V supply) |
17-24VDC (24V supply) 34-48VDC* (48V supply) |
|
Input Impedance (Typical) |
5.6KΩ (24/48V) 1.8KΩ (24V) |
Same as Source Blocks |
|
Input Processing Time (Typical) |
1.7ms (plus selectable filter delay) |
|
|
Selectable Input Filter Times |
5-100ms (software configurable) |
|
|
Input Diagnostics |
Open wire detection Overtemperature protection Failed switch detection |
|
