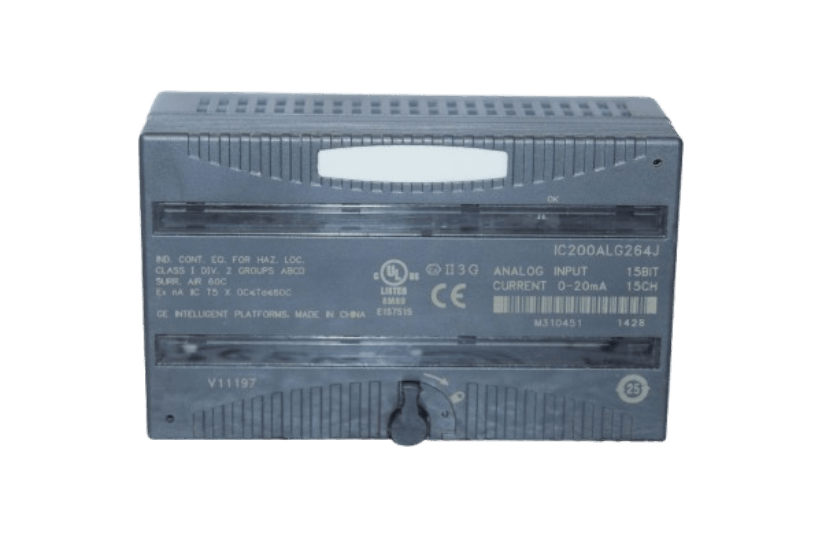

General Electric IC200ALG264 Analog Input Module
Item Number: IC200ALG264
Brand: GE
Lead Time: In stock
Description: Analog Input Module
Payment: T/T
Product Description
GE IC200ALG264 is an analog input module that provides 15 current inputs for hazardous areas (such as Class I Div 2 and Zone 2 environments). It supports a variety of I/O formats (terminal and connector types).
The module is powered by a backplane power supply and does not require an external power supply, but the user's transceiver does require an external power supply. Its primary function is to receive and convert analog current signals for communication with the host system.
Function & Features
- Input Channels and Signal Range: The IC200ALG264 includes 15 single-ended input channels, grouped together. The signal range is selectable via a jumper: 4-20mA (without the jumper) or 0-20mA (with the jumper).
- Operation and Configuration: The IC200ALG264 supports software-configured module fault states: default or hold last state. It communicates with the host computer via the backplane, providing 15 channels of analog input data.
- Installation and Wiring: It is recommended to use shielded twisted-pair cable to connect the analog channels of the IC200ALG264. The shield must be grounded at the source device or module end (this can be achieved through the auxiliary I/O terminal).
Specifications
|
Parameter |
Details |
|
Part Number |
IC200ALG264 |
| Channels | 15 single ended, one group |
| Module ID |
FFFFFB50F (when cfg for 4 - 20mA range)
FFFFFB40F (when cfg for 0 - 20mA range) |
| Backplane current consumption | 5V output: 100mA maximum |
| Accuracy at 25 degrees C * |
+/-0.3% typical of full scale,
+/-0.5% maximum of full scale |
| Accuracy at 0 to 60 degrees C | +/-1% maximum of full scale |
| Filter response (3dB Corner Freq) | 24 Hz +/-20% |
| Update rate | 7.5ms |
