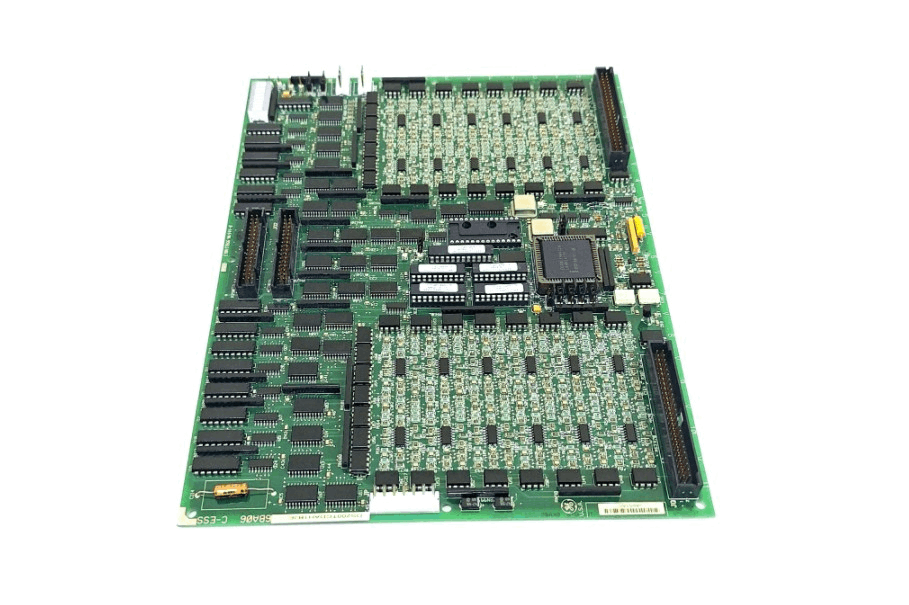

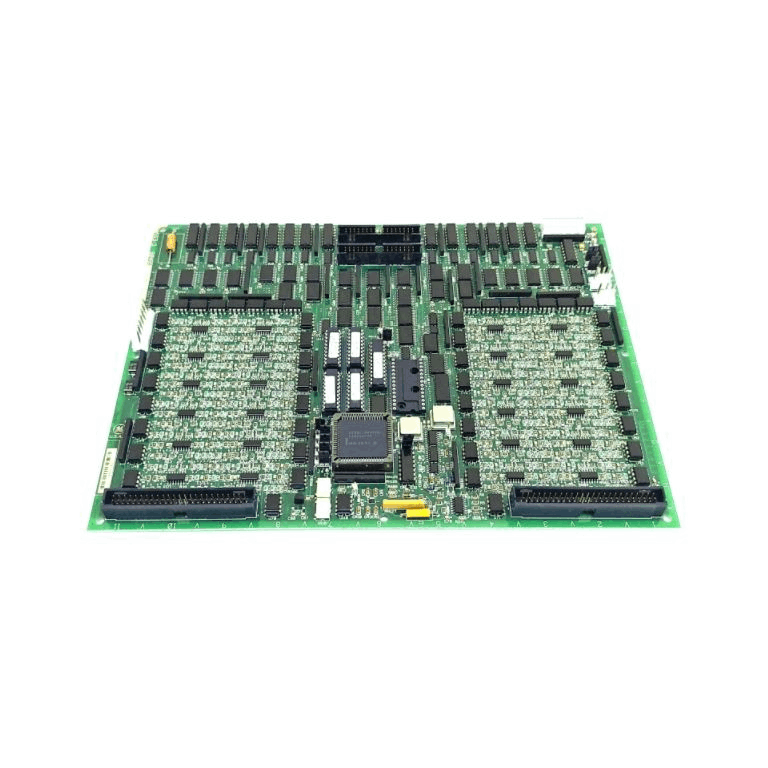

General Electric DS200TCDAH1B Digital I/O Board
Item Number: DS200TCDAH1B
Brand:General Electric
Lead Time: In stock
Description: Digital I/O Board
Payment: T/T
Product Description
Product Description: The GE DS200TCDAH1B is a digital input/output (I/O) board in the Mark V series.
Product Positioning: A digital I/O signal processing and inter-board communication hub, receiving external signals and distributing internal board signals.
Associated Boards: DS200DTBA, DS200DTBB
Components: Microprocessor, Programmable Read-Only Memory (PROM), jumpers, and test points.
Function & Features
- The GE DS200TCDAH1B features an onboard microprocessor and multiple PROM modules. It also provides local logic processing and data caching capabilities.
- The GE DS200TCDAH1B has two 50-pin high-density connectors (IDs: JQ and JR) that connect to internal boards such as the driver protection board (DS200DTBA, DS200DTBB) via ribbon cables.
- The GE DS200TCDAH1B has eight jumpers (JP1-JP8) for configuring board operating parameters, addresses, and function options.
Specifications
|
Category |
Details |
|
Product Model |
DS200TCDAH1B |
|
System |
Mark V |
|
Related Products |
DS200TCDAH1BGD DS200TCDAH1BHF DS200TCDAH1BHD DS200TCDAH1BHE DS200TCDAH1BJE |
|
Identification Interfaces |
2 3-pin connectors • JX1: For board identification or configuration • JX2: For board identification or configuration |
|
Configuration Jumpers |
8 jumpers |
|
Dimensions |
• Length: 20.34 cm • Height: 15.46 cm • Thickness: 1.18 cm |
|
Weight |
0.58 kg |
