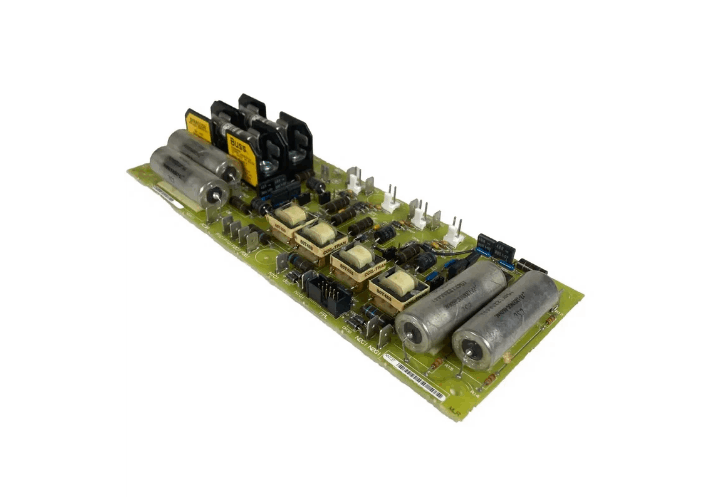

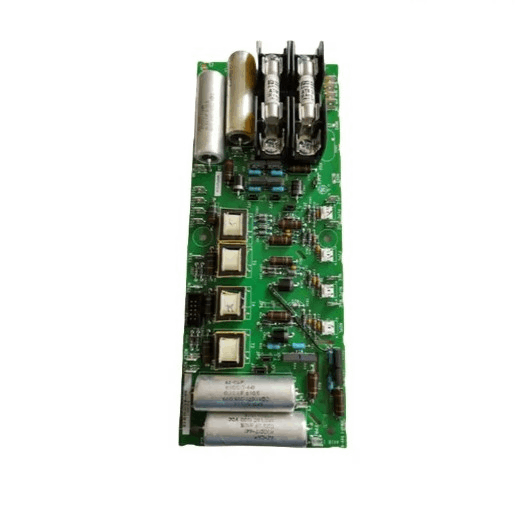

General Electric DS200FSAAG1ABA Field Supply Gate Amplifier Board
Item Number:DS200FSAAG1ABA
Brand:GE
Lead Time: In stock
Description: Field Supply Gate Amplifier Board
Payment: T/T
Product Description
GE DS200FSAAG1ABA is a field power amplifier board for the Mark V series. Secured by brackets and screws, it provides signal amplification and circuit protection. As a drive control board, it includes specific connectors, jumpers, fuses, and capacitors. Jumper configuration and test points support system debugging and maintenance.
Function & Features
GE DS200FSAAG1ABA Features:
- 10-pin connector: Interconnects with drive devices, transmitting power and control signals.
- Fast-blow fuses: Two 30A Limitron fuses (KTK certified) provide protection.
- Dual fuse protection: An integrated 30A fast-blow fuse on the left side responds to overloads.
- High-voltage capacitor protection: Four capacitors (two on each side) provide energy storage and voltage buffering.
Specifications
|
Category |
Parameter |
Details |
| Part Number | GE | Mark V DS200FSAAG1ABA |
|
Power Components |
SCR Count |
4 |
|
Fuse Specification |
2 × Limitron fast-acting fuses, 30 A |
|
|
Connectors |
Terminal Connector |
10-pin FPL terminal connector |
|
Operation |
Operating Mode |
NRX mode only (NRP mode not supported) |
|
Field Supply Protection |
Supports up to 24 A field supply current |
|
|
Configuration |
Jumper Settings |
5 jumpers (factory-preset, DO NOT modify) |
|
Physical |
Board Dimensions |
198 × 149 × 24.88 mm |
