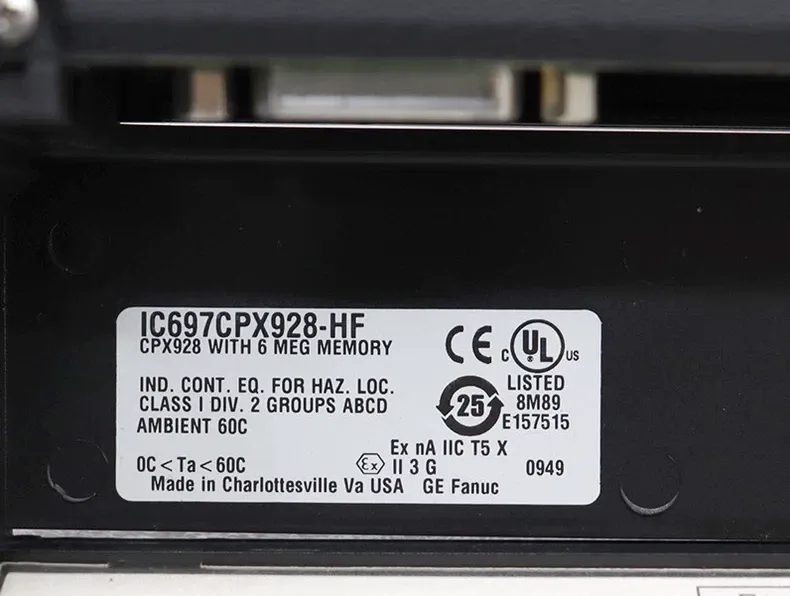

GE Fanuc IC697CPX928 Central Processing Unit
Item Number: IC697CPX928
Brand: GE
Lead Time: In stock
Description: Central Processing Unit
Payment: T/T
Product Description
GE Fanuc IC697CPX928 is a central processing unit (CPU) module used in the GE Fanuc Series 90-70 programmable logic controller (PLC) family. This module executes user-written control logic and handles all input/output (I/O) data. It occupies only one slot in the PLC rack and can be programmed and configured using specialized MS-DOS or Windows (95/NT)-based programming software, such as Logicmaster 90 or CIMPLICITY Machine Edition.
Function & Features
- The IC697CPX928 supports IC697 series discrete and analog I/O modules. It also supports earlier IC660/IC661 (Series 90-30) I/O products with an additional bus controller module.
- The IC697CPX928 uses a RUN/STOP switch to control the module's operating state, including "RUN WITH OUTPUTS ENABLED," "RUN WITH OUTPUTS DISABLED," and "STOP" modes.
- Forced air cooling is required when the ambient temperature of the IC697CPX928 exceeds 50°C (122°F). It is recommended that a fan assembly with a minimum airflow of 70 CFM (such as the IC697ACC721, IC697ACC724, or IC697ACC744) be installed below slot 1 of the CPU rack.
Technical Specifications
|
Specification |
Details |
| Model | IC697CPX928 |
|
Battery: Shelf life |
5 years at 20°C (68°F) |
|
Battery: Memory retention |
6 months nominal without applied power. |
|
Current required from 5V bus |
3.1 Amps nominal |
|
Operating Temperature |
0 to 60°C (32°F to 140°F); 70 CFM forced air required 0 to 50°C (32°F to 122°F); without forced air |
|
Time of Day Clock accuracy |
3.5 seconds per day maximum |
|
Elapsed Time Clock (internal timing) accuracy |
.01% maximum |
|
Serial Ports |
Port 1: RS - 232 compatible Port 2: RS - 485 compatible (optocoupler isolated) Port 3: RS - 485 compatible (not isolated) Programmer Serial Attachment, or other serial devices Protocols supported: SNP Slave only |
