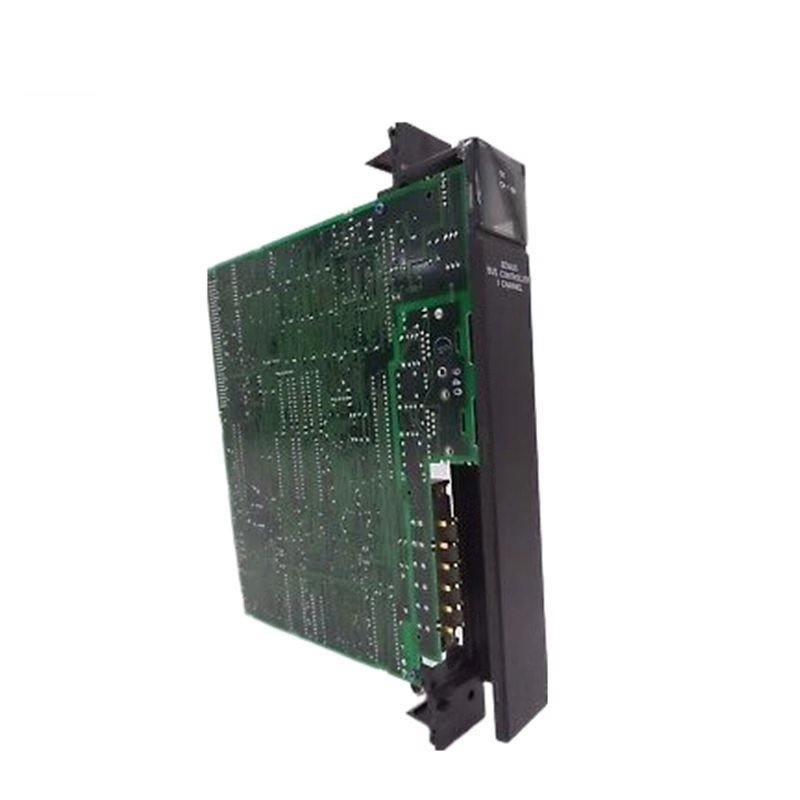

The GE Fanuc IC697BEM731U is a Bus Controller Module (BCM) designed for the Series 90-70 automation system. It facilitates communication between the Genius I/O handheld monitor (IC660/IC661) and the CPU. By scanning input/output blocks asynchronously, it transfers I/O data over the backplane of the IC697 PLC rack to the CPU. The module also supports advanced diagnostics, redundancy, and flexible communication options.

Technical Specifications

• Module Type: Bus Controller Module (BCM)
• Manufacturer: GE Fanuc
• Model Number: IC697BEM731U
• Number of Channels: 1 channel
• Drops per Channel: 30 drops per channel
• Serial Ports: 1 (Hand Held Monitor Port)
• Current Required: 1.3 Amps

Key Features

• I/O Diagnostics: Supports diagnostics for IC660/IC661 I/O modules.
• Redundancy: Provides redundancy for blocks, cables, and CPUs.
• Global Communications: Configurable for global communications support.
• LAN Communications: Compatible with LAN communication protocols.
• CPU Soft Configuration: Configurable via CPU soft settings.
• Alarm Processor: Includes an alarm processing function.
