General Electric IC698PSA100 Power Supplies

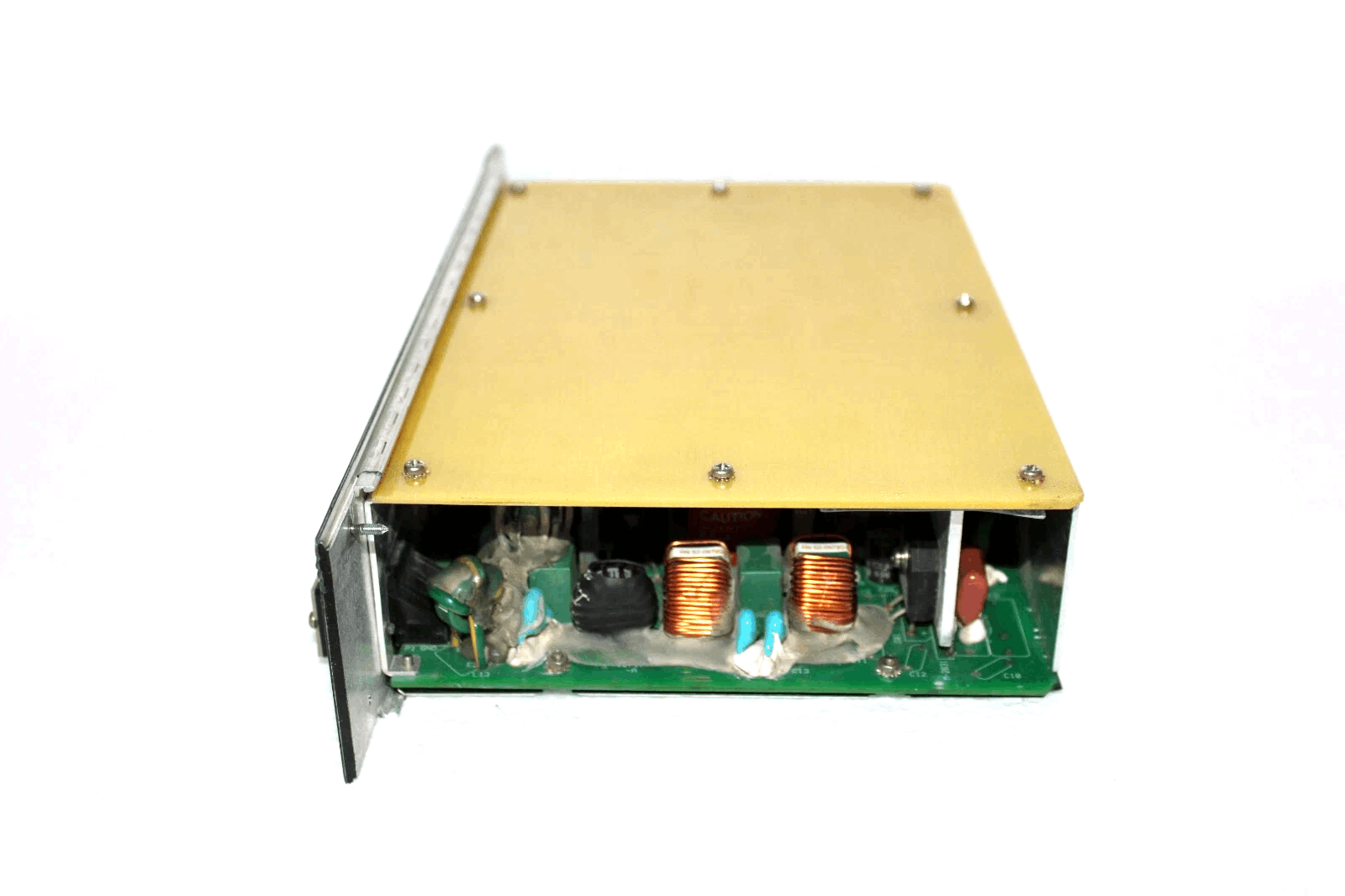

GE IC698PSA100 Power Supplies is one of the RX7i series power supplies that provide 5V, 12V, -12V power and VME AC_FAIL# logic level signals to the modules on the RX7i backplane. It is a low capacity power supply that does not require forced air cooling in an ambient temperature range of 0 - 60ºC. It has a total output power of up to 100W and plugs directly into slot 0 of the RX7i main rack. It has the ability to handle the loss of AC input line cycles.

Function & Features

• Input and output: IC698PSA100 has a wide input voltage range, supporting 85 - 264 VAC, 100 - 150 VDC; output +5 VDC maximum 20A, +12 VDC maximum 2A, -12 VDC maximum 1A.

• Installation and structure: IC698PSA100 adopts a slide-in rack mounting structure that complies with the PICMG 2.11 standard connector and can be directly inserted into the RX7i main rack slot 0.

• Special design: IC698PSA100 performs power factor correction during AC operation; the two-position on-off switch on the front panel is a logic level switch that only controls the output channel enable/disable, without cutting off the AC line input. The power supply output can maintain uninterrupted output power when an AC input line cycle is lost.

Specifications
