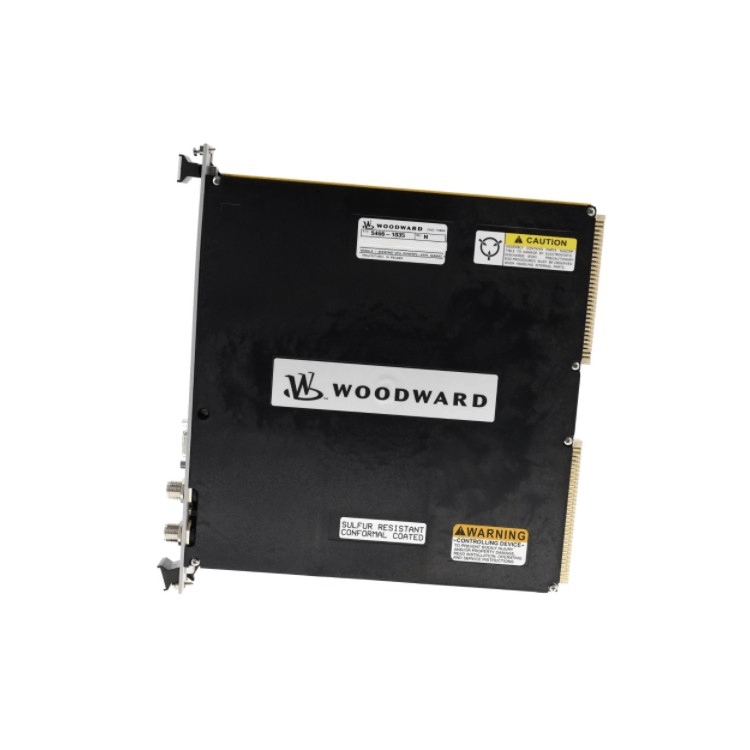

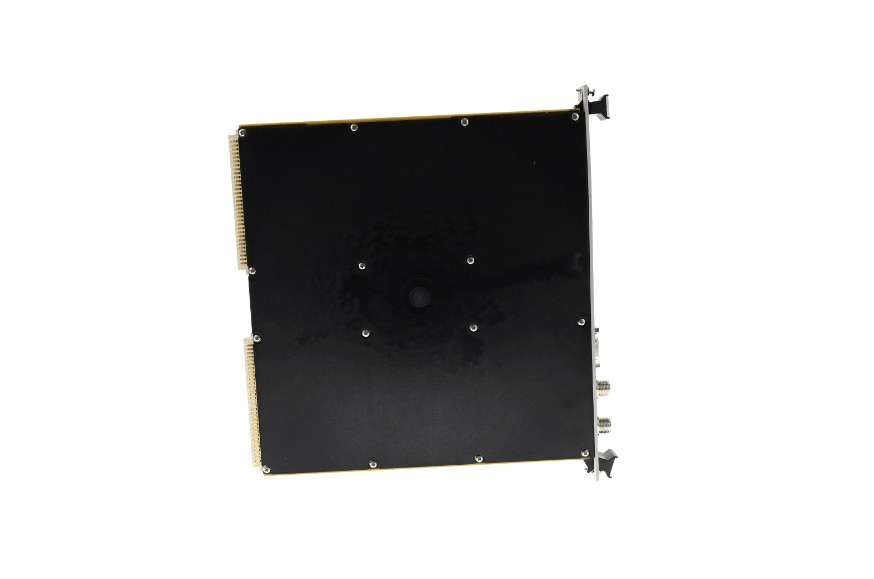

Woodward 5466-1035 MicroNet Plus 5200 CPU
Item Number: 5466-1035
Brand:Woodward
Lead Time: In stock
Description: MicroNet Plus 5200 CPU
Payment: T/T
Product Description
Woodward 5466-1035 MicroNet Plus 5200 CPU is primarily designed for aeroderivative GE gas turbines and other process control applications. Based on the MPC5200 processor, this module includes two general-purpose Ethernet ports, a real-time network port, a serial port, a service port, and two CAN ports.
Note: This CPU module has been the standard controller for the MicroNet Plus product line for 15 years since 2005.but this model is a legacy product; users are advised to upgrade to the newer P1020 CPU.
Function & Features
- Basic Control Capabilities: The 5466-1035 supports logic control and device linkage in the MicroNet Plus system.
- Module Configuration: For the 5466-1035 to operate in CPU mode (master chassis, address 0x000), the module configuration switch (S2) must be correctly configured. The module is correctly configured at the factory.
- Communication Interfaces: The 5466-1035 is equipped with two CAN ports for connecting to CAN devices such as Woodward valves and servo positioning controllers, as well as a basic Ethernet interface.
Specifications
|
Category |
Details |
|
Model |
5466-1035 |
| Core Processor | Single - core MPC5200 |
| System Architecture | A single core handles all tasks |
| Memory (RAM) | 128 MB DDR RAM |
| Key Chip | Built - in FPGA |
| Ethernet Ports | 2 × General - purpose Ethernet ports |
| CAN Ports | 2 × CAN ports |
| Other Ports | 1 × Real - Time Network (RTN) port, 1 × Serial port, 1 × Service port |
| Weight | 0.74kg |
|
Dimensions |
466.25mm x 298.15mm x 216.37mm |
