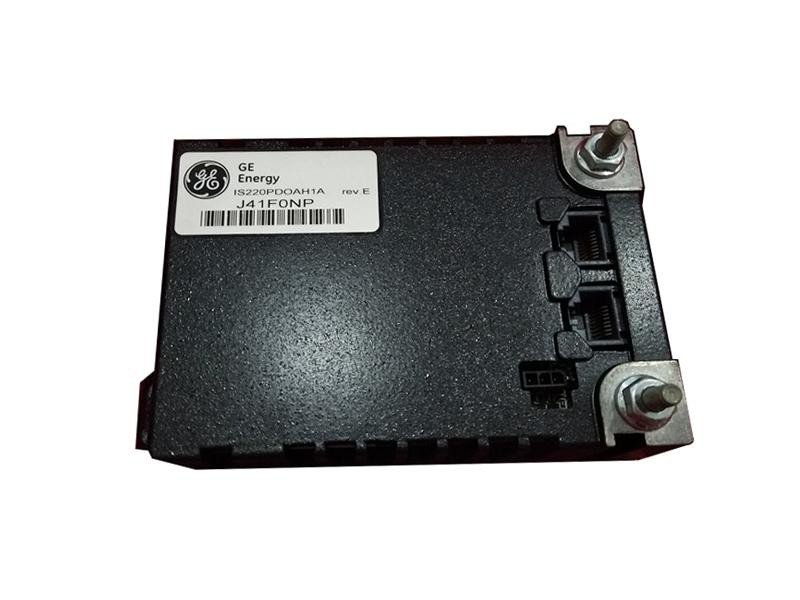

General Electric IS220PDOAH1A Proportional Digital Output Module

GE IS220PDOAH1A is one of the modules in the General Electric Mark VI IS200 series. As a discrete output module, it can control up to 12 relays and feedback signals from other boards. The Discrete Output (PDOA) assembly provides an electrical interface between one or two I/O Ethernet networks and the discrete output terminal board. The assembly contains the processor board common to all Mark VIe distributed I/O assemblies, and the acquisition board specific to the discrete output function.

Function & Features

• Relay control: The IS220PDOAH1A is capable of controlling up to 12 relays, using electromagnetic relays (for TRLYH1B, C, D and F terminal boards) and solid-state relays (for TRLYHE terminal boards).

• Signal feedback: The IS220PDOAH1A can receive terminal board-specific feedback signals to provide feedback to other board signals.

• Electrical interface: The IS220PDOAH1A provides an electrical connection between the I/O Ethernet network and the discrete output terminal board to facilitate data transmission and execution of control instructions.

Specifications
