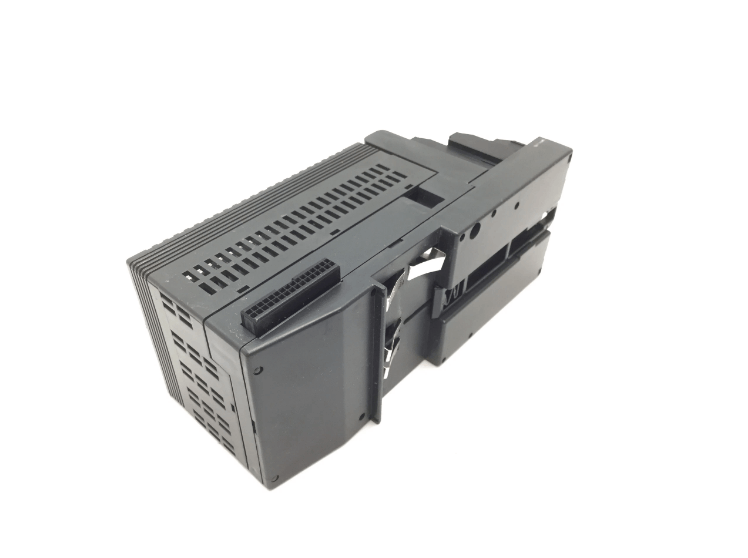

General Electric IC200MDL650 Discrete Input Module
Item Number:IC200MDL650
Brand: GE
Lead Time: In stock
Description:Discrete Input Module
Payment: T/T
Product Description
GE IC200MDL650 is a 32-channel discrete input module that provides four groups of 32 discrete input points for VersaMax PLC systems. It supports positive logic (Sourcing) and negative logic (Sinking) input configurations (requires IC200MDL650C and above). The module is powered by the backplane and provides a 0.5ms basic response time. Its intelligent processing is completed by the CPU or NIU.
Function & Features
- 32-point grouping design: 4 groups × 8 channels, each group can be independently configured as positive/negative logic.
- Positive logic: The input device supplies power to the module, and the current flows back to the common terminal (Common).
- Negative logic (requires IC200MDL650C+): The common terminal supplies power to the input device, and the current flows back to the module.
- Power and processing: The IC200MDL650 module runs on power from the backplane, and intelligent processing is performed by the CPU or NIU, providing 32 bits of discrete input data.
Specifications
|
Parameter |
Details |
|
Model |
IC200MDL650 |
|
Points |
32 (4 groups of 8) |
|
Isolation - User input to logic (optical) and to frame ground |
250VAC continuous; 1500VAC for 1 minute |
|
Isolation - Group to group |
250VAC continuous; 1500VAC for 1 minute |
|
LED indicators |
One LED per point shows individual point ON/OFF status; OK LED indicates backplane power is present |
|
Backplane current consumption |
5V output: 50mA maximum |
|
Thermal derating |
See diagram |
|
Configuration parameters |
Input response times |
|
Input voltage (Input Characteristics) |
0 to +30VDC, +24VDC nominal |
|
On state voltage |
+15 to +30VDC |
|
Off state voltage |
0 to +5VDC |
|
On state current |
2.0 to 5.5mA |
|
Off state current |
0 to 0.5mA |
|
On response time |
0.5ms maximum |
|
Off response time |
0.5ms maximum |
|
Configurable filter time |
0 ms, 1.0ms (default), or 7.0ms |
|
Input impedance |
10kOhms maximum |
