Bently Nevada 330425-02-05 Accelerometer Acceleration Transducer
Item Number: 330425-02-05
Brand:Bently Nevada
Lead Time: in stock
Description:Accelerometer Acceleration Transducer
Payment: T/T
Product Description
Bently Nevada 330425-02-05 is an Accelerometer Acceleration Transducer for equipment condition monitoring,This accelerometer is mainly used to measure the vibration acceleration of machine housings,Model 330425-02-05 is the high-range version within the 330400 series.
Part Number Breakdown: 330425-02-05
Base Model (330425): Accelerometer with a 75 g peak measurement range.

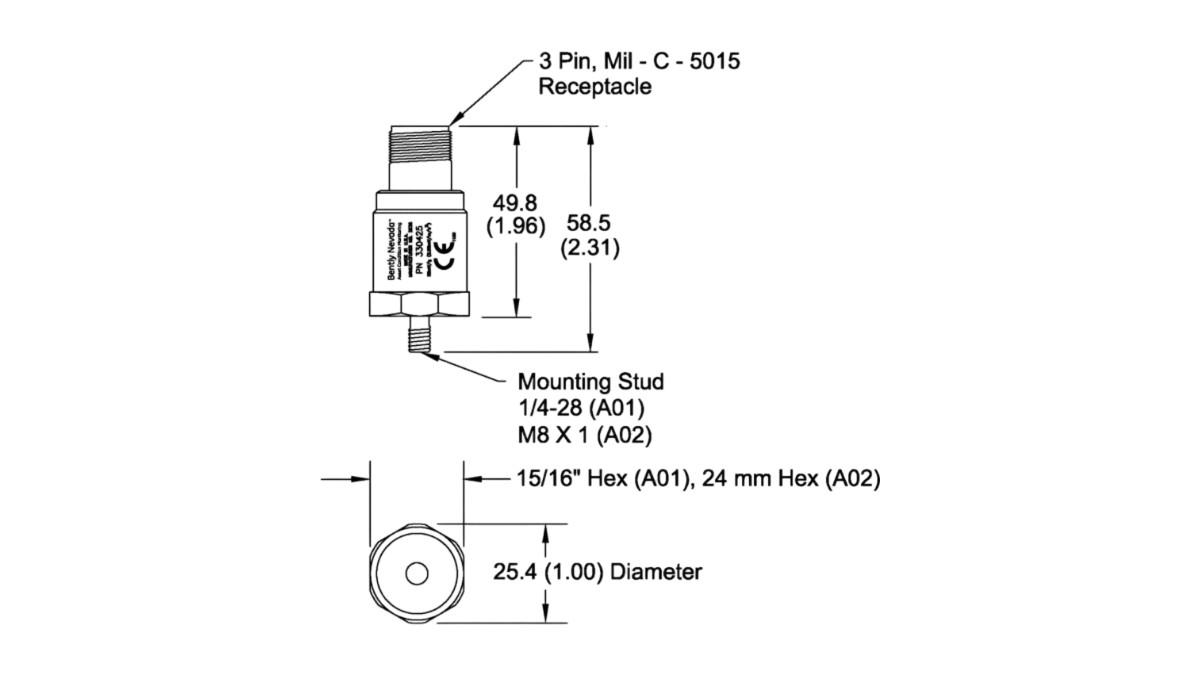

AA (02): Mounting thread = M8 × 1 integral double-ended stud.
BB (05): Agency approvals = Multiple certifications (including CSA, ATEX, IECEx), suitable for hazardous areas requiring explosion-proof or other special safety compliance.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 330425-02-05 |
| Sensitivity | 2.5 mV/m/s² (25 mV/g) ±5% |
| Amplitude Linearity | ±1% up to 735 m/s² (75 g) peak |
| Transverse Sensitivity | Less than 5% of axial sensitivity |
| Mounted Resonant Frequency | Greater than 30 kHz |
| Amplitude of Resonant Peak | 20 dB maximum |
| Weight | 0.72 kg |
Function & Features
- High range: The wide amplitude range of 75 g peak enables the 330425-02-05 to capture and withstand stronger shocks and high vibration levels without signal clipping or damage.
- Sensitivity: The sensitivity is 25 mV/g, meaning the sensor outputs 25 millivolts for every 1 g of acceleration. Compared to models with a 100 mV/g sensitivity, this matches the higher range of the 330425-02-05.
- Frequency Range: The wide frequency band, covering 10 Hz to 15 kHz, allows the 330425-02-05 to capture vibration components ranging from low-speed machinery to high-frequency vibrations produced by fast gear meshing.
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
