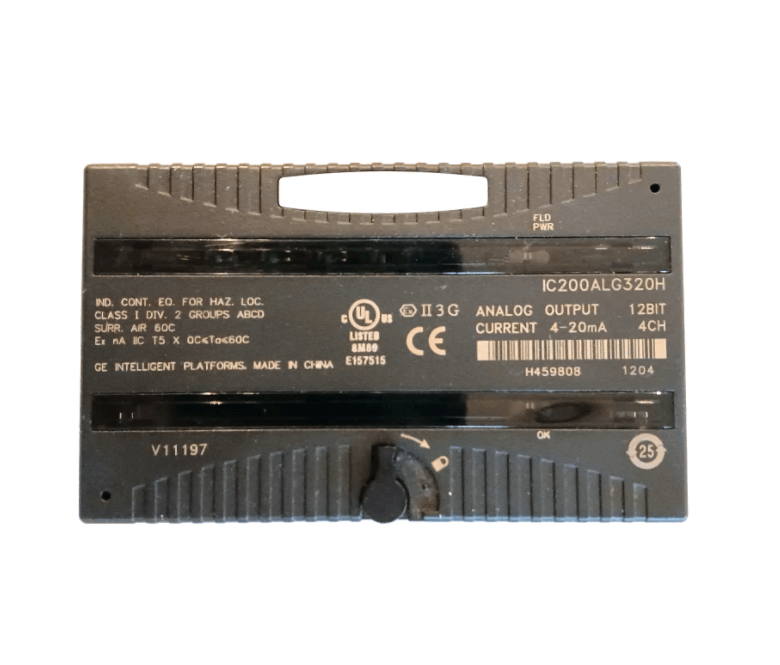

General Electric IC200ALG320 Analog Output Module
Item Number: IC200ALG320
Brand: GE
Lead Time: In stock
Description: Analog Output Module
Payment: T/T
Product Description
GE IC200ALG320 is a 4-channel analog current output module that is part of the GE VersaMax series of I/O modules. The module supports 20.38mA over-range output, with a resolution of 4µA and an update rate of 0.3ms. The IC200ALG320 requires an external power supply and is processed by a CPU or network interface unit.
|
Model |
Output Type |
Range |
Notes |
|
IC200ALG320 |
4-20mA |
Overrange capability up to 20.38mA per channel |
|
|
IC200ALG321 |
Voltage Output |
0-10VDC |
Requires an external power supply |
|
IC200ALG322 |
Voltage Output |
-10-+10VDC |
Bipolar output |
Function & Features
- Multiple Types Available: In addition to the IC200ALG320 providing 4-20mA current output, there is also the IC200ALG321 providing 0 to +10VDC analog voltage output and the IC200ALG322 providing -10 to +10VDC analog voltage output.
- Power Requirements: The IC200ALG320 output requires an external power supply in the range of 18-30VDC or 9.6-15VDC and will only work when connected to the backplane power supply.
- Configurable: The IC200ALG320 outputs can be easily set via jumpers, and can be selected to retain the last state or set to the default state when the backplane power or communication is lost and the PLC stops.
Specifications
|
Specification |
Details |
|
Model |
IC200ALG320 |
|
Channels |
4 single - ended, one group |
|
Backplane current consumption (5V output) |
50mA max. |
|
Recommended voltage range |
+18 to+30VDC (including ripple) |
|
Current consumption at recommended range |
160mA max. (including load current) |
|
12V operation range |
9.6 to 15VDC, 12VDC nominal (including ripple) |
|
Update rate per module |
0.3ms maximum |
|
Channel - to - channel crosstalk rejection |
70dB minimum |
