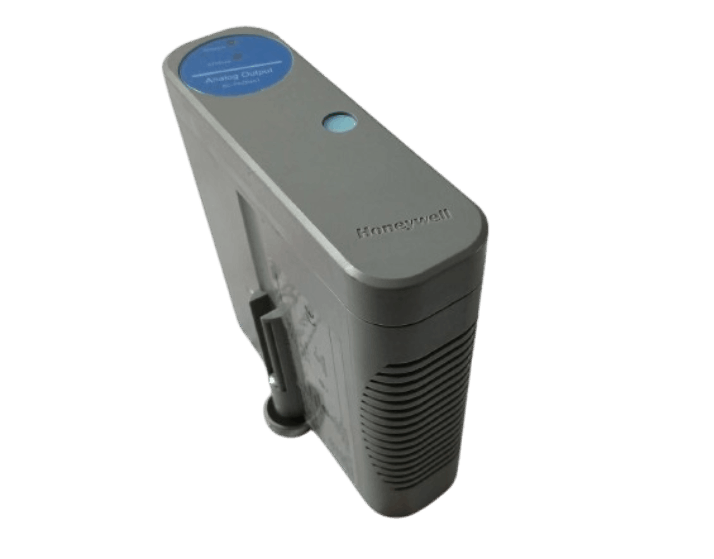

Honeywell 8C-PAONA1 51454469-175 Analog Output Module
Item Number: 8C-PAONA1 51454469-175
Brand:Honeywell
Lead Time: In stock
Description: Analog Output Module
Payment: T/T
Product Description
Honeywell 8C-PAONA1 (Part Number: 51454469-175) Analog Output Module (AO) can provide high-level constant current to actuators and recording/indicating devices to drive these devices to work normally. It has fail-safe (FAILOPT) configuration and disconnection detection functions and can be used in process control, valve regulation, analog drive equipment, etc.
Function & Features
- 8C-PAONA1 supports channel-by-channel configuration of fault behavior, optional:
- HOLD LAST VALUE
- SHED to SAFE VALUE
- When the module electronics fails, the output automatically returns to zero (safe state).
- Open-wire Detection: 8C-PAONA1 can detect open-wires on site and alarm through channel soft fault indication. This function can help operators find open-wire problems in signal transmission lines in time to avoid analog output signals being unable to be transmitted to the target device due to line failures.
Specifications
|
Parameter |
Specification |
| Series | Series 8 |
| Model | 8C-PAONA1 |
| Odering number | 51454469-175 |
|
Output Type |
4-20 mA |
|
Output Channels |
16 |
|
Output Ripple |
100 mV peak - to - peak at power line frequency, across 250 Ω load |
|
Load Resistance |
50-800Ω |
|
Voltage Rating |
24 VDC |
|
Module current rating |
190 mA |
|
Operating Temperature |
0 to 60 °C |
|
Storage temperature |
-40 to 85 °C |
|
Resolution |
± 0.05% of Full Scale |
