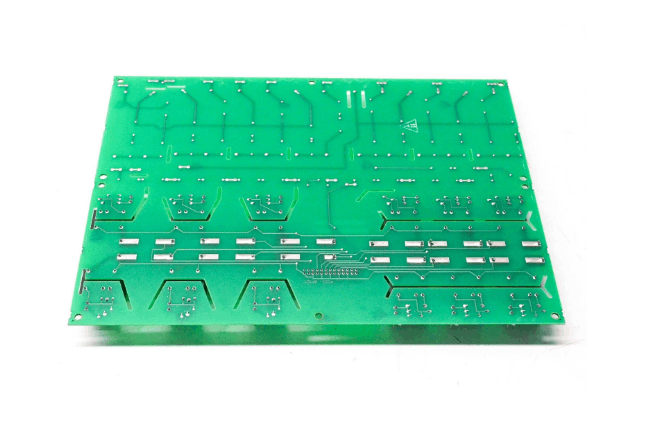

General Electric DS200PCCAG5A DC Power Connect Card
Item Number: DS200PCCAG5A
Brand: GE
Lead Time: In stock
Description: DC Power Connect Card
Payment: T/T
Product Description
DS200PCCAG5A is a DC Power Connect Card for GE Mark V series. DS200PCCAG5A acts as the interface between the DC2000 driver control circuit and the SCR power bridge, providing gate drive signals to the SCR bridge through a pulse transformer.
The card has 11 group codes. The group number used is affected by the system voltage, frame size and the type of power conversion used by the system.
Function & Features
- Provide interface and drive: DS200PCCAG5A acts as an interface between the DC2000 driver control circuit and the SCR power bridge, providing gate drive to the SCR bridge through a pulse transformer.
- Voltage spike regulation: DS200PCCAG5A has built-in snubber circuits to suppress voltage spikes on the AC line, DC bus, and gate drive.
- Specific version hardware: The DS200PCCAG5A board consists of multiple plug connectors that match the transformers on the board.
Specifications
|
Category |
Details |
|
Model Number |
DS200PCCAG5A |
|
Pulse Transformers |
6 (on - board) + 6 (reserved positions) |
|
Jumper Configuration |
JP1/JP2/WP3/WP4 |
|
Matching Components |
DCFB Power Supply Board; Branch Fuses; Reactors |
|
Frames |
J/K/M Types |
