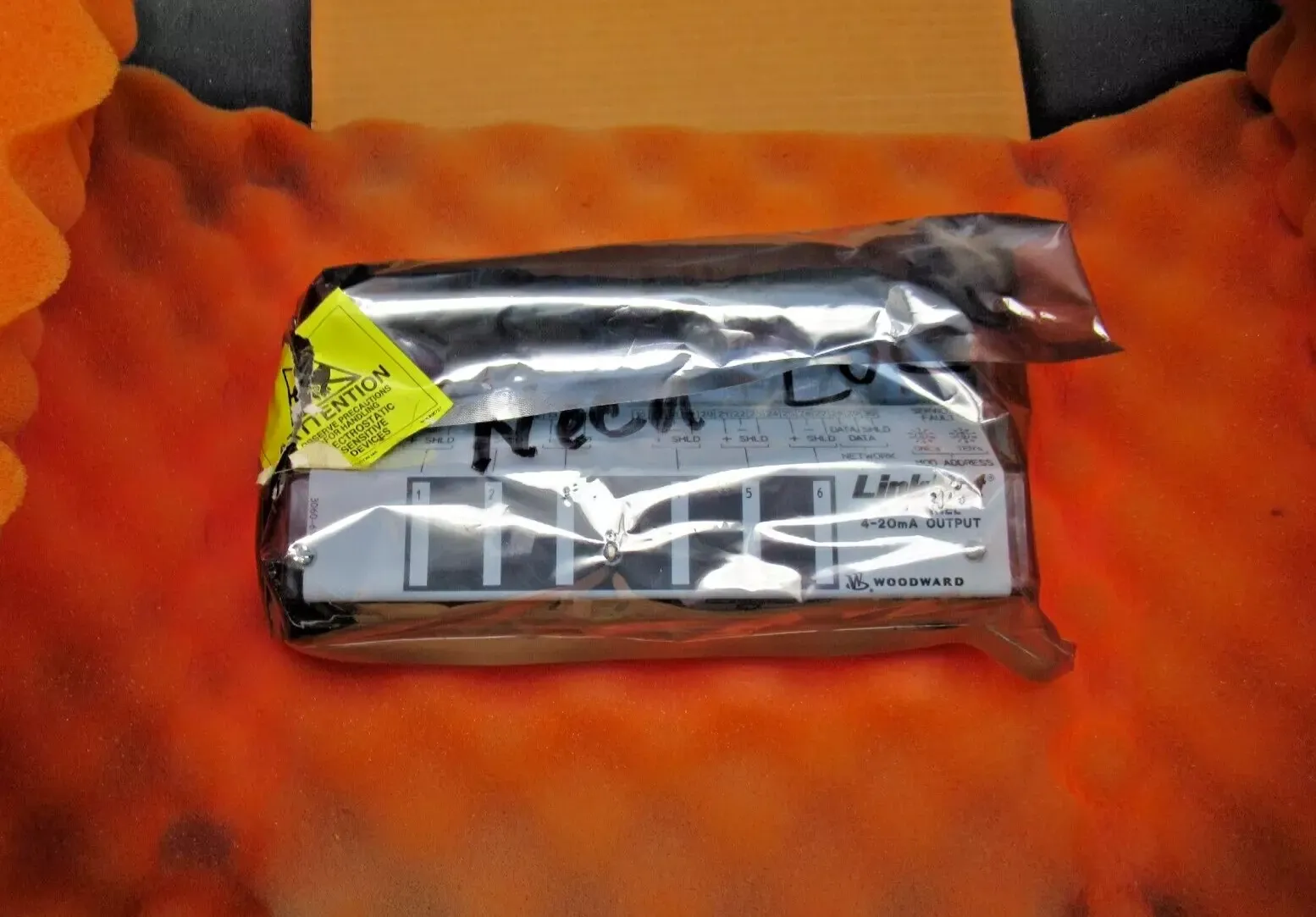

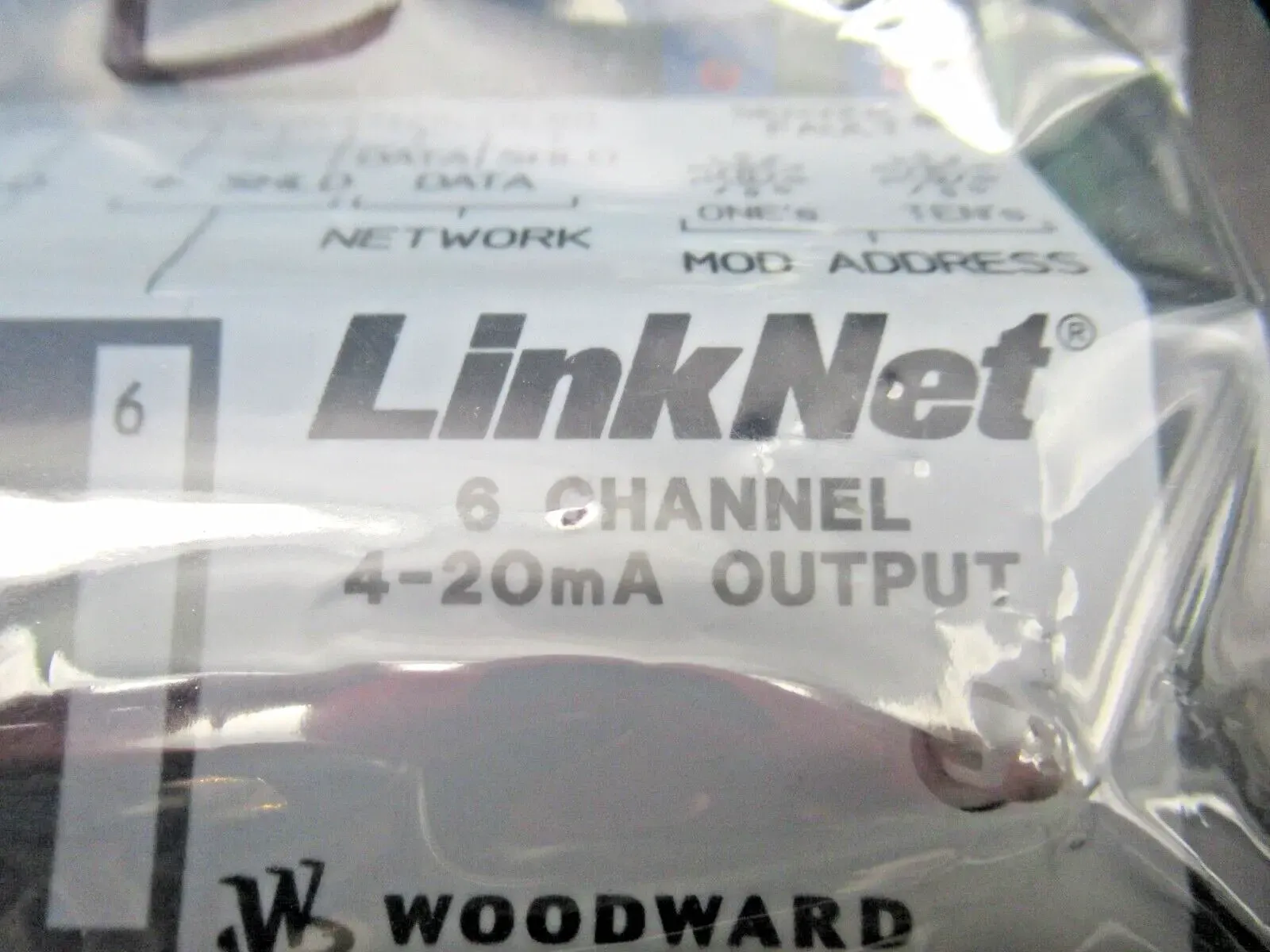

Woodward 9905-972 Linknet 6-channel Output Module
Item Number:9905-972
Brand:Woodward
Lead Time: In stock
Description:Linknet 6-channel Output Module
Payment: T/T
Product Description
Woodward 9905-972 Linknet 6-channel output module is a key device in the field of industrial control. It consists of four modules, each module accepts six contact inputs, and the contact wetting voltage is 24Vdc, which can be powered by the control unit or an external power supply of 18-32Vdc, 100-150Vdc. This voltage can be obtained from an external power supply of 18-32Vdc or 100-150Vdc.The following is a detailed description of the module's features and specifications.
Fuctions & Features
- Channels and Power: The Woodward 9905-972 Linknet 6-channel Output Module controls four modules, each of which accepts six contact inputs. The contact wetting voltage can be provided by the control unit or an external power supply, and each relay module has a contact wetting voltage of 24Vdc. To obtain this voltage, an external 18 - 32Vdc power supply or a 100 - 150Vdc power supply can be selected.
- Latent Fault Detection Mechanism: In a fault-tolerant system, the Woodward 9905-972 Linknet 6-channel Output Module plays a key latent fault detection role. Through the specially configured discrete output function, relay faults can be accurately detected.
Specification
|
Specification |
Details |
|
Accuracy |
1 % at 25 °C without field calibration |
|
Power Supply Input |
(18 to 32) V (dc) |
|
Isolation - Network to I/O channel |
277 V (ac) |
|
Isolation - Power supply input to network |
277 V (ac) |
|
Isolation - I/O channel to I/O channel |
0 V (rms) |
|
Isolation - Power supply input to I/O channel |
500 V (dc) (except for discrete inputs; discrete input power comes directly from power supply input) |
|
2 mm² (14 AWG) maximum wire size |
|
|
Temperature Range |
(–40 to +55) °C |
|
UL Listed |
Class I, Division 2, Groups A, B, C, and D |
|
Shock and Vibration - Shock |
US MIL-STD-810, 30 Gs sine wave at 11 ms |
|
Shock and Vibration - Vibration |
US MIL-STD-167, (18 to 50) Hz |
