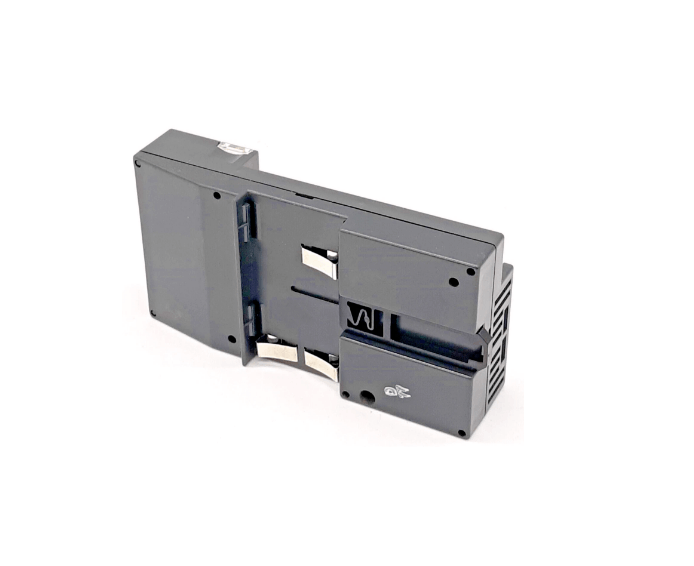

General Electric IC200BEM003 Network Interface Module
Item Number:IC200BEM003
Brand: GE
Lead Time: In stock
Description:Network Interface Module
Payment: T/T
Product Description
GE IC200BEM003 is a VersaMax PLC network interface module that enables the VersaMax PLC to operate as a master or slave in a network. It supports DeviceNet (master/slave) and PROFIBUS-DP (slave) communication protocols, and the data transmission volume varies depending on the device used, allowing the VersaMax PLC to access an industrial network as a master or slave.
Functions and features
(1) Multi-protocol support
- DeviceNet: IC200BEM003 supports Master or Slave mode, suitable for device-level control networks.
- PROFIBUS-DP: IC200BEM003 supports Slave mode, compatible with standard PROFIBUS master devices.
- AS-i Master (optional): IC200BEM003 supports Actuator-Sensor Interface networks (specific models required).
(2) Data capacity
- VersaMax CPU configuration: Maximum 3584 bytes of input data + 3584 bytes of output data (global communication).
- PROFINET Network Slave (PNS) configuration: Maximum 1440 bytes of input data + 1440 bytes of output data.
- Each slave node: Maximum 244 bytes of input/output data (applicable to DeviceNet or PROFIBUS-DP slaves).
Specifications
|
Parameter |
Details |
|
Network Data Rate |
IC200BEM003 |
|
Network Topology |
Linear bus, terminated at both ends. Stubs are possible. |
|
Transmission Media |
Shielded, twisted pair cable |
|
Connector |
9-pin D-sub connector |
|
Number of Nodes |
N/A |
|
User Diagnostic Data |
Slave Status Bit Array Table, Firmware Module Revision, Slave Diagnostic Address |
|
Power Consumption |
450 mA maximum from 5 V output, 5 mA from +3.3 V output |
|
Dimensions (W x H x D) |
110 mm (4.3in) x 66.8 mm (2.63 in) x 50 mm (1.956 in), not including the height of the carrier or the mating connectors |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Network Interface Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
