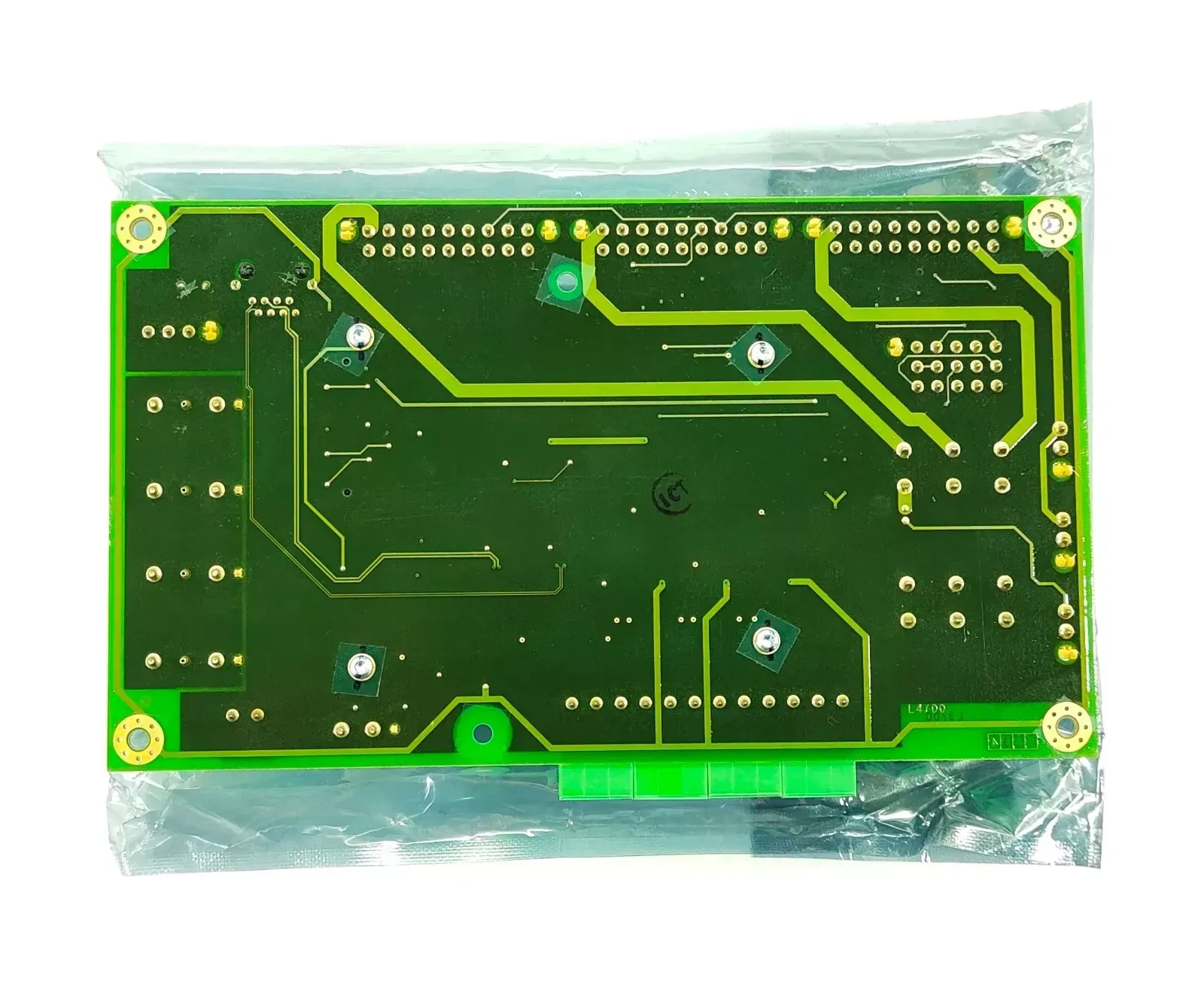

General Electric IS210BPPBH2C IS210BPPBH2CAA Printed Circuit Board
Item Number:IS210BPPBH2C IS210BPPBH2CAA
Brand:GE
Lead Time: In stock
Description:Printed Circuit Board
Payment: T/T
Product Description
GE IS210BPPBH2C and IS210BPPBH2CAA printed circuit boards are core components designed for GE Mark Vie industrial control systems for power generation and process control applications. Their main functions are to receive, process and transmit data from various sensors and actuators.
The board is fixed to the motherboard via four copper-plated holes in the corners and four feet and screws. The three sides are specially shaped to fit the motherboard components. The I/O module is equipped with a temperature sensor with an accuracy of 2°C, which can store readings and alarm when exceeding thresholds.
Fuctions & Features
- Stable Mounting: The GE IS210BPPBH2C Printed Circuit Board is secured to the motherboard using four standoffs and screws through copper-plated drilled mounting holes in the four corners to ensure stability and proper alignment with the motherboard, and the special shape of three sides facilitates the adaptation to the motherboard components.
- Temperature Monitoring and Alarming: The I/O module is equipped with a temperature sensor with an accuracy of 2 degrees Celsius, which can store temperature readings in a database and trigger alarms when the temperature exceeds the preset threshold so that the operator can take action.
- Software Support and Monitoring: The GE IS210BPPBH2C IS210BPPBH2CAA Printed Circuit Board uses a Windows-based PC operating interface pre-installed with proprietary software such as CIMPLICITY Graphics and Control System Toolbox to achieve comprehensive monitoring, control and protection of the gas turbine.
Specification
|
Item |
Details |
|
Installation Method |
Connect through four studs and screw fixings, insert into the copper-plated pre-drilled holes at the four corners of the motherboard. Three sides are specially formed to adapt to the motherboard components. |
|
Component Composition |
- Two LEDs - Two vertical connectors of different sizes - Two phone jacks - An inductor - Multiple capacitors - Integrated circuits - Multiple transistors - An AMD memory chip near the center of the board, and each component has a reference code |
|
Working Environment Specifications |
Operating temperature range: - 30℃ to 65℃ |
|
Temperature Monitoring Specifications |
- Temperature sensor of the I/O component has a measurement accuracy of ±2℃ - Temperature data can be stored - Threshold can trigger an alarm |
|
Software Support Specifications |
Windows-based PC operation interface. Pre-installed with CIMPLICITY graphics software and control system toolbox and other special software. |
