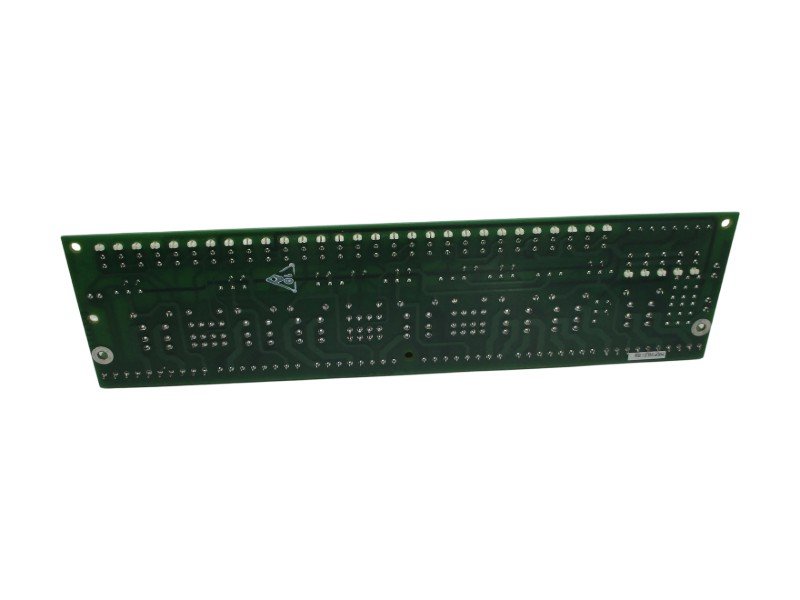

General Electric DS200RTBAG1A Relay Terminal Board
Item Number:DS200RTBAG1A
Brand:GE（General Electric）
Lead Time: In stock
Description:Relay Terminal Board
Payment: T/T
Product Description
GE DS200RTBAG1A relay terminal board is a relay interface and expansion board, an optional component in a drive or exciter cabinet. This terminal board provides a set of controllable relays for connecting the control system to external devices, expanding the system's input/output capabilities by increasing the number of relays.
Note: Consult the datasheet for the specific relay model for exact current/voltage ratings
Function & Features
- Coil Voltage: This board is available in three versions: DS200RTBAG1A, DS200RTBAG2A, and DS200RTBAG3A, corresponding to different relay coil voltages.
- Control Mode: The DS200RTBAG1A can be driven directly by pilot relays on the 531X307LTB LAN I/O terminal board in the main control cabinet or remotely.
- Configurable Jumpers: The board features several Berg-type (manually adjustable) hardware jumpers for selecting the control power source and configuring connector signals.
Specifications
| Parameter | Details |
|---|---|
| Board Model | DS200RTBAG1A (Coil Voltage Version: DS200RTBAG1) |
| Related models |
DS200RTBAG2A DS200RTBAG3A |
| Number of Relays | 10 (K20-K29) |
| Connection Terminals | 52 (Terminals 1-52, used for connecting external signals) |
| Power Interfaces | 2 stab connectors (CPH, CPN) |
| Configuration Jumpers | Multiple Berg - type hardware jumpers |
| Contact Forms |
K20-K26: DPDT (2 Form C) K27-K29: 4PDT (4 Form C) |
| Control Power | CPH/CPN connectors |
| Weight | 0.43kg |
