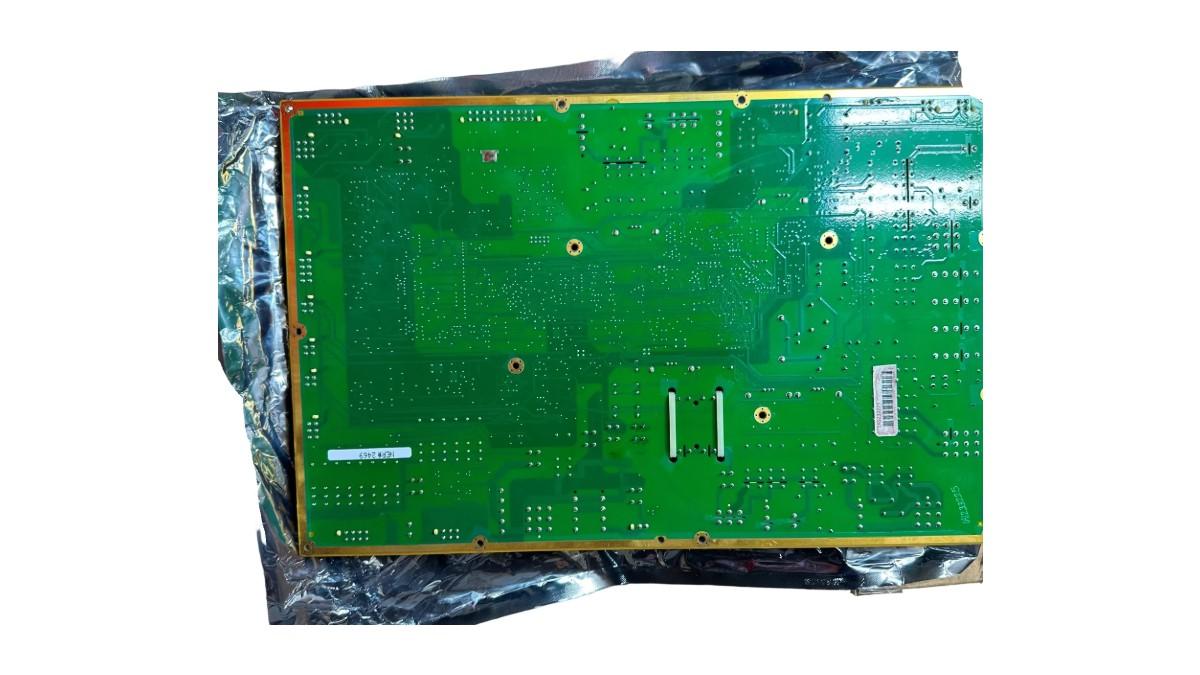

General Electric IS200WETBH1B IS200WETBH1BAA Primary Turbine Protection Board
Item Number:IS200VTURH2B IS200VTURH2BAA
Brand:GE
Lead Time: In stock
Description:Primary Turbine Protection board
Payment: T/T
Product Description
GE IS200WETBH1B (IS200WETBH1BAA) is a main turbine protection board. The board primarily monitors operating parameters and performs protection actions: the WETB board collects signals such as speed, voltage, and current, and triggers relay actions under abnormal or dangerous conditions, ultimately controlling the opening and closing of the main circuit breaker (52G) to prevent equipment damage.
Function & Features
- Speed Monitoring:IS200WETBH1B (IS200WETBH1BAA) is equipped with a passive pulse rate device, which measures the turbine speed by sensing the gear disc.
- Shaft Parameter Monitoring:IS200WETBH1B (IS200WETBH1BAA) receives input from shaft voltage and shaft current sensors to monitor potential abnormalities such as shaft grounding or insulation faults.
- Electrical Parameter Monitoring:IS200WETBH1B (IS200WETBH1BAA) receives generator voltage and bus voltage signals from voltage transformers for synchronization control.
Specifications
| Parameter | Details |
|---|---|
| Product Model | IS200VTURH2B IS200VTURH2BAA |
| Product Series | GE Mark VI |
| Input Signals |
-Pulse signals (passive pulse type) -Voltage signals (received from voltage transformers) -Shaft voltage/current signals |
| Redundancy Level | Supports SMX and TMR |
| General Signal Interface | 1 JR1 connector |
| Dimensions | 42.3cm × 22.6cm |
| Weight | 0.76 kg |
FAQ
Q: How to connect the signal of the passive pulse rate device (magnetoelectric sensor) to the IS200WETBH1B board?
A: The shielding layer of each signal line must be stripped and crimped to the "shielding grounding strip" on the left side of the terminal block.
Q: What are the most important safety precautions when installing wiring?
A:1. Power off operation.
2. Proper grounding.
3. Static electricity prevention.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
